About the product

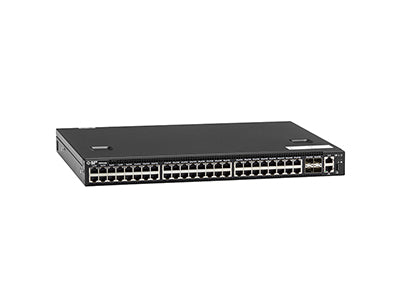

Gigabit Ethernet Network Switch, 48-Port - Emerald
Technical Specifications
| Primary Information | |
| Network Device Type: | Switch |
| Model: | EMS1G48 |
| Connectivity Technology: | Wired |
| Data Transfer Rate: | 1 Gbps |
| Networking / Ports Qty: | 53 |
| Data Link Protocol: | Gigabit Ethernet |
| RAM / Total Installed Size: | 2 GB |
| Power / Device Type: | Power Supply |
| Media Layer Supported: | Layer 2 |
| Power / Provided (W): | 87 Watt |
| Power / Voltage Required: | 90-264 VAC, 50/60 Hz |
| Features: | 260Gbps full duplex non-blocking switching architecture;Includes (48) 10/100/1000-Mbps twisted-pair ports and (4) SFP+ 10-GbE uplink ports;Maximum flexibility and investment protection;Hot-swappable power supplies and fans;Supports jumbo frames for high-end performance in virtualized environments and IP storage/server communication. |
| Interfaces / Ports | |
| Interfaces: | (48) 10/1000/1000BASE-T RJ45; (4) 10 GbE SFP+ Uplink; (1) RJ45 RS-232 Serial Console Port |
| SFP+ Ports: | 4 |
| Network | |
| MAC Address Table Size: | up to 80k |
| Remote Management Protocol: | TFTP |
| SFP+ Ports: | 4 |
| Interfaces: | (48) 10/1000/1000BASE-T RJ45; (4) 10 GbE SFP+ Uplink; (1) RJ45 RS-232 Serial Console Port |
| Dimensions&Miscellaneous | |
| What's Included: | (1) Ethernet Switch(1) Power Cord US(1) Power Supply(1) Set of Rack Rails: (2) Rails (2) Slides(1) Information Sheet with directions on where to download QSG and Manual(1) Console Cable RJ45 to DB9F(1) USB Type A/B Cable |
| Width: | 17.09 Inch |
| Depth: | 12.6 Inch |
| Height: | 1.71 Inch |
| Weight: | 12.8 lbs. |
| Service&Support | |
| Service & Support Type: | Double Diamond Warranty (Standard) |
| Special Feature | |
| Min Operating Temperature: | 0 Celsius |
| Max Operating Temperature: | 45 Celsius |
| Min Storage Temperature: | -40 Celsius |
| Max Storage Temperature: | 70 Celsius |
| COO: | CHINA |
| UNSPSC Code | |
| UNSPSC Code: | 43222612 |
