About the product

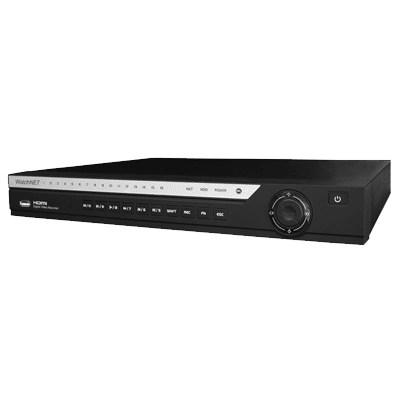

WatchNET ENMR3-16POE is a 16 Channel Slim-Line NVR with 4K Ready and 16 Port POE with No HHD.
WatchNET ENMR3-16POE Slim-Line NVR Features:
- Embedded LINUX OS
- Industrial-grade embedded processor
- 16 PoE Ports built-in
- New 4.0 user interface, Security baseline 2.1
- H.264, H.265, Smart H.264+, and Smart H.265+. H.265 auto switch
- Max. decoding capability: 8 × 1080p@30 fps
- Supports adaptive decoding
- Supports mainstream cameras of ONVIF and RTSP protocols
- P2P remote surveillance, video play on a mobile device
- VGA/HDMI simultaneous video output, the maximum resolution of HDMI is 4K
- AI by Camera:
- Face Detection
- Fenced Area Protection
- IVS
- Pople Counting
- Heat Map
- Motion Detection
- * (AI Features only supported when using AI Cameras)
WatchNET ENMR3-16POE Slim-Line NVR Specifications:
- Model: ENMR3-16POE
- System Operating System: Embedded LINUX OS
- Main Processor: Industrial-grade embedded processor
- Fenced Area Protection by Camera Performance 8 channels
- AI Search Search for pictures by channel, time,and event type
- Face Detection by Camera Performance 4 channels
- Face Attributes 6 attributes: Gender, age, glasses, expression,mouth mask, and beard
- AI Search Search for pictures by channel, time, and faceattributes
- Video Access Channel 16
- Network Bandwidth Access: 160 Mbps; Storage: 160 Mbps; Forward: 64 Mbps
- Resolution 8MP; 6MP; 5MP; 4MP; 3MP; 1080p; 720p; D1
- Decoding Capability 8 × 1080p@30 fps
- Video Output 1 × VGA output, 1 × HDMI output, supports simultaneous video sources output for VGA & HDMI
- Multi-screen Display 1, 4, 8, 9, 16 views
- Record Playback Multi-channel Playback Up to 16 channels for playback
- Record Mode Manual record; alarm recording;
- Motion Detection recording; smart recording
- Storage Local HDD; network
- Backup USB storage device
- Alarm General Alarm Motion detection, privacy masking, video loss, scene changing, PIR alarm, IPC external alarm
- Anomaly Alarm Camera disconnection, storage error, disk full, IP conflict, MAC conflict, login locked, and cybersecurity exception
- Intelligent Alarm Face detection, Fenced area protection (intrusion and line crossing), IVS, people counting, heat map, and motion detection alarms
- Alarm Linkage Recording, snapshot, audio, buzzer, log, preset, and email
- Network Network Protocol HTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; SNMP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; DDNS; FTP; Alarm Server; IP Search (Support WatchNET IP camera; DVR; NVS; etc.); P2P; auto register
- Mobile Phone Access Android; iOS
- Interoperability ONVIF(profile T/S/G); CGI; SDK
- Browser Chrome; IE9 or later; Firefox
- Storage Disk Group Yes
- External Port USB 2 (1 × front USB2.0; 1 × back USB2.0)
- Audio I/O 1 × RCA input / 1 × RCA output
- HDD 2 SATA III ports, up to 10 TB for a single HDD.
- The maximum HDD capacity varies with environmental temperature
- Alarm I/O 4/2
- Network 1 × RJ-45, 10/100/1000 Mbps self-adaptive Ethernet port
- General Power Supply 100 V–240 V, 47 Hz–63 HZ, 3.5 A
- Power Consumption < 10 W (HDD not included, idling)
- Total output power of PoE is 117W, and the maximum output power of a single port is 25.5W
- Operating Conditions -10°C ~ +55°C (+14°F ~ +131°F)
- Operating Altitude 3000m (9842.52ft)
- Net/Gross Weight 2.63kg (5.80lb) / 3.91kg (8.62lb)
Technical Specifications
WatchNET ENMR3-16POE is a 16 Channel Slim-Line NVR with 4K Ready and 16 Port POE with No HHD.
WatchNET ENMR3-16POE Slim-Line NVR Features:
- Embedded LINUX OS
- Industrial-grade embedded processor
- 16 PoE Ports built-in
- New 4.0 user interface, Security baseline 2.1
- H.264, H.265, Smart H.264+, and Smart H.265+. H.265 auto switch
- Max. decoding capability: 8 × 1080p@30 fps
- Supports adaptive decoding
- Supports mainstream cameras of ONVIF and RTSP protocols
- P2P remote surveillance, video play on a mobile device
- VGA/HDMI simultaneous video output, the maximum resolution of HDMI is 4K
- AI by Camera:
- Face Detection
- Fenced Area Protection
- IVS
- Pople Counting
- Heat Map
- Motion Detection
- * (AI Features only supported when using AI Cameras)
WatchNET ENMR3-16POE Slim-Line NVR Specifications:
- Model: ENMR3-16POE
- System Operating System: Embedded LINUX OS
- Main Processor: Industrial-grade embedded processor
- Fenced Area Protection by Camera Performance 8 channels
- AI Search Search for pictures by channel, time,and event type
- Face Detection by Camera Performance 4 channels
- Face Attributes 6 attributes: Gender, age, glasses, expression,mouth mask, and beard
- AI Search Search for pictures by channel, time, and faceattributes
- Video Access Channel 16
- Network Bandwidth Access: 160 Mbps; Storage: 160 Mbps; Forward: 64 Mbps
- Resolution 8MP; 6MP; 5MP; 4MP; 3MP; 1080p; 720p; D1
- Decoding Capability 8 × 1080p@30 fps
- Video Output 1 × VGA output, 1 × HDMI output, supports simultaneous video sources output for VGA & HDMI
- Multi-screen Display 1, 4, 8, 9, 16 views
- Record Playback Multi-channel Playback Up to 16 channels for playback
- Record Mode Manual record; alarm recording;
- Motion Detection recording; smart recording
- Storage Local HDD; network
- Backup USB storage device
- Alarm General Alarm Motion detection, privacy masking, video loss, scene changing, PIR alarm, IPC external alarm
- Anomaly Alarm Camera disconnection, storage error, disk full, IP conflict, MAC conflict, login locked, and cybersecurity exception
- Intelligent Alarm Face detection, Fenced area protection (intrusion and line crossing), IVS, people counting, heat map, and motion detection alarms
- Alarm Linkage Recording, snapshot, audio, buzzer, log, preset, and email
- Network Network Protocol HTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; SNMP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; DDNS; FTP; Alarm Server; IP Search (Support WatchNET IP camera; DVR; NVS; etc.); P2P; auto register
- Mobile Phone Access Android; iOS
- Interoperability ONVIF(profile T/S/G); CGI; SDK
- Browser Chrome; IE9 or later; Firefox
- Storage Disk Group Yes
- External Port USB 2 (1 × front USB2.0; 1 × back USB2.0)
- Audio I/O 1 × RCA input / 1 × RCA output
- HDD 2 SATA III ports, up to 10 TB for a single HDD.
- The maximum HDD capacity varies with environmental temperature
- Alarm I/O 4/2
- Network 1 × RJ-45, 10/100/1000 Mbps self-adaptive Ethernet port
- General Power Supply 100 V–240 V, 47 Hz–63 HZ, 3.5 A
- Power Consumption < 10 W (HDD not included, idling)
- Total output power of PoE is 117W, and the maximum output power of a single port is 25.5W
- Operating Conditions -10°C ~ +55°C (+14°F ~ +131°F)
- Operating Altitude 3000m (9842.52ft)
- Net/Gross Weight 2.63kg (5.80lb) / 3.91kg (8.62lb)
