About the product

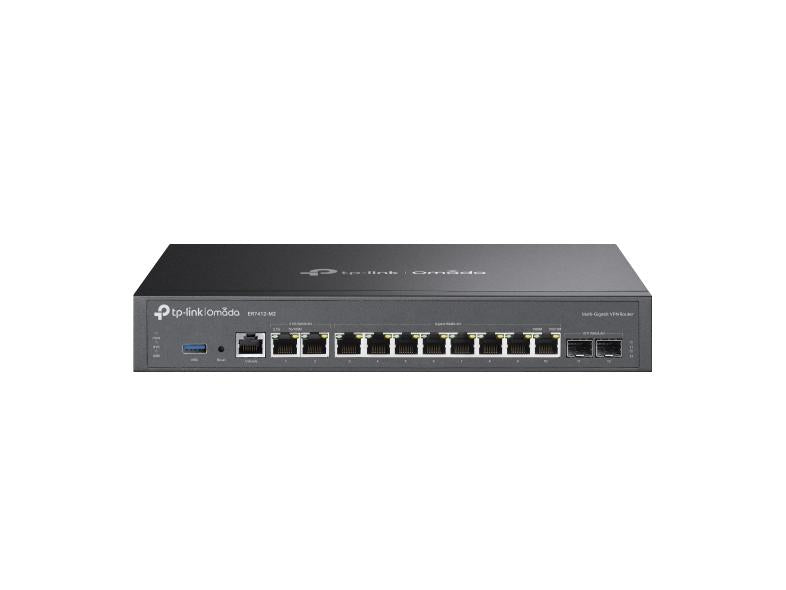

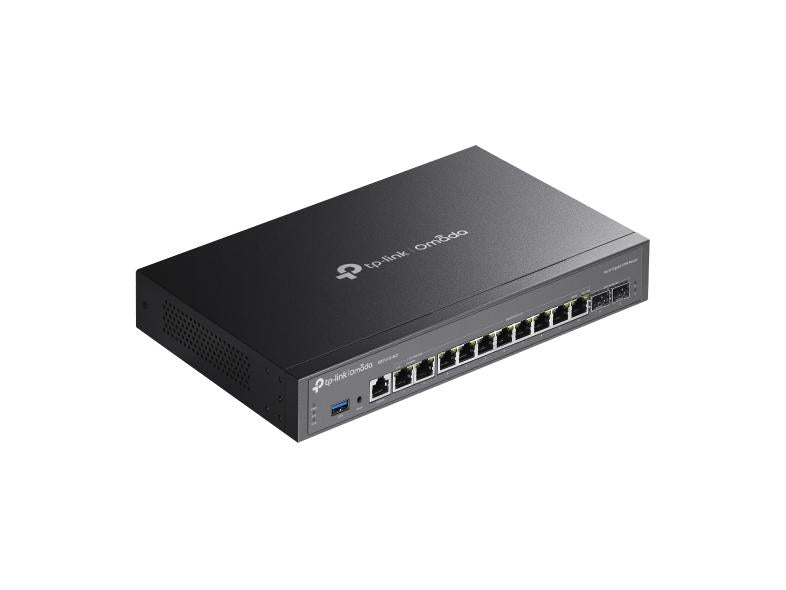

Omada Multi-Gigabit Vpn Router Port: 2 2.5G Wan/Lan Rj45 Port, 2 Gigabit Sfp Wan/Lan Port, 8 Gigabit Wan/Lan Rj45 Ports, 1 Usb 3.0 Port Spec: 1U 13-Inch Rack-Mountable Steel Case Feature: Integration With Omada Sdn Controller, Support Ssl Vpn, Openvpn And Ipsec/ Pptp/ L2Tp/ L2Tp Over Ipsec Vpn, 1000000 Concurrent Sessions, Load Balance, Link Backup, 4G Lte Backup With Usb Dongle, Policy-Based Firewall, Static Routing, Policy Routing, Multi-Net Dhcp, Guest Portal, Vlan, Support Rj45/Sfp Module
Technical Specifications
| Primary Information | |
| Network Device Type: | Router |
| Model: | ER7412-M2 |
| Form Factor: | 1U |
| Networking / Ports Qty: | 14 |
| Routing Protocol: | Static Routing, RIP, OSPF |
| Processor / Type: | Cortex A53 |
| Processor / Clock Speed: | 2 GHz |
| RAM / Total Installed Size: | 1 GB |
| Flash Memory / Installed Size: | 128 MB |
| Power / Device Type: | Power Supply |
| Power / Voltage Required: | 100-240 VAC, 50/60 Hz |
| Interfaces: | 2.5G RJ45 WAN/LAN, SFP WAN/LAN, RJ45 WAN/LAN, RJ45 Console, USB 3.0 |
| Networking | |
| Connectivity Technology: | Wired |
| Data Transfer Rate: | 2.5 Gbps |
| Data Link Protocol: | Gigabit Ethernet |
| Encryption Algorithm: | DES; AES (256-bit); 3DES |
| Authentication Method: | MD5, SHA1, SHA2-384 |
| Remote Management Protocol: | CLI; RMON; SNMP |
| Cellular Technology: | None |
| Cellular Service Provider: | None |
| Cellular Generation: | None |
| Dimensions&Miscellaneous | |
| Width: | 11.6 Inch |
| Depth: | 7.1 Inch |
| Height: | 1.7 Inch |
| Height (RU): | 1U |
| Special Feature | |
| Min Operating Temperature: | 0 Celsius |
| Max Operating Temperature: | 45 Celsius |
| Humidity Range Operating: | 10-90% RH non-condensing |
| RoHS: | Y |
| COO: | Inquire |
| TAA compliance: | Inquire |
| UNSPSC Code | |
| UNSPSC Code: | 43222609 |
