About the product
ATTO ExpressSAS GT adapters prepare your workflow for the next evolution in PCIe 4.0 computing solutions. With extensive testing and qualifications, GT adapters performs flawlessly in transactional environments such as enterprise data center, business analytics, cloud computing, digital forensics, database applications, video on demand, broadcast and financial trading systems.
Technical Specifications
| Primary Information | |

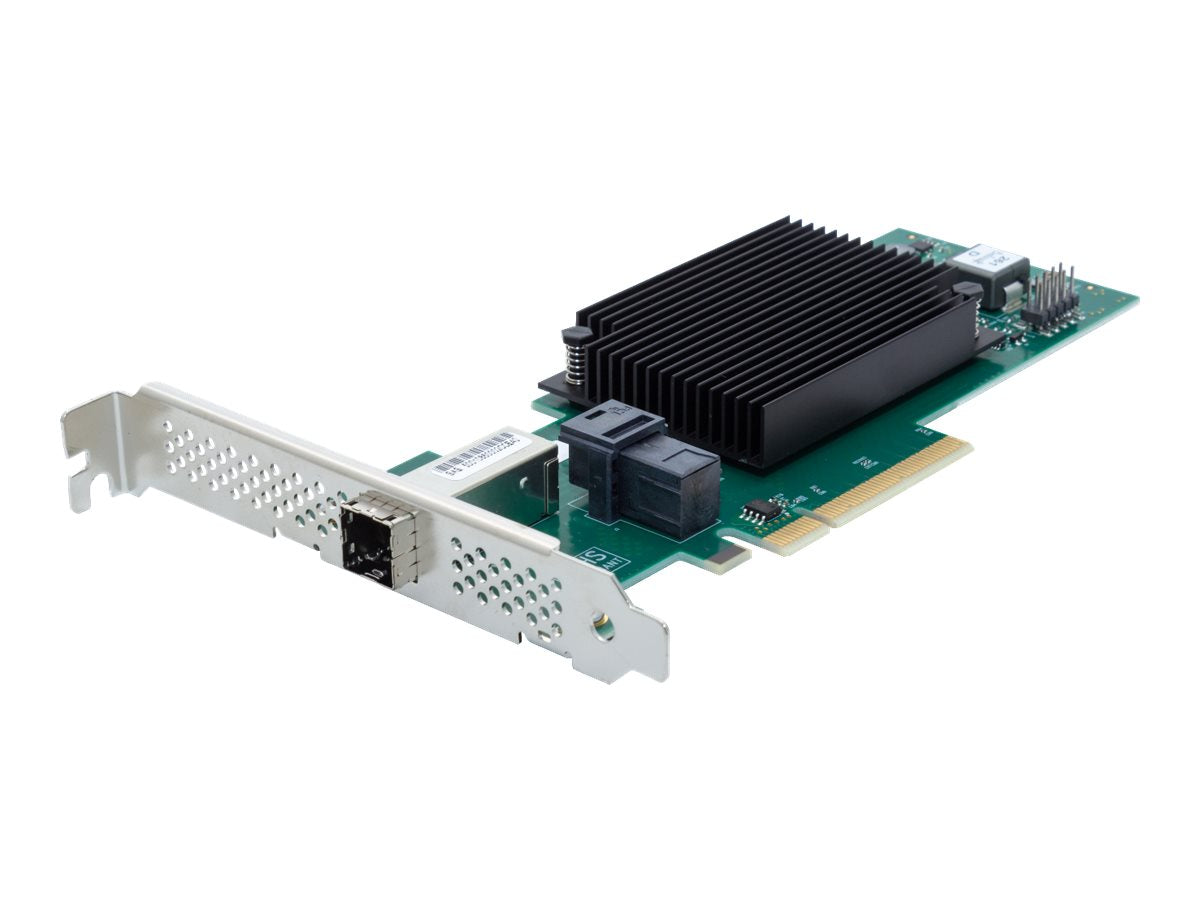

| Product Description: | ATTO ExpressSAS H1244GT - storage controller - SATA 6Gb/s / SAS 12Gb/s - PCIe 4.0 x8 |
| Device Type: | Storage controller - plug-in card - low profile |
| Bus Type: | PCIe 4.0 x8 |
| Interface: | SATA 6Gb/s / SAS 12Gb/s |
| Data Transfer Rate: | 12 Gbit/s |
| Supported Devices: | Disk array (RAID), tape drive |
| Channel Qty: | 8 |
| Max Storage Devices Qty: | 2048 |
| RAID Level: | RAID 0, RAID 1, RAID 10, RAID 1E |
| System Requirements: | Apple MacOS, FreeBSD, SUSE Linux Enterprise Server, Microsoft Windows Server, Microsoft Windows, Red Hat Enterprise Linux, CentOS, VMware ESXi, Linux Fedora |
| Manufacturer Warranty: | 3-year warranty |
| General | |
| Device Type: | Storage controller - plug-in card - low profile |
| Host Bus: | PCIe 4.0 x8 |
| Storage Controller | |
| Interface: | SATA 6Gb/s / SAS 12Gb/s |
| Data Transfer Rate: | 12 Gbit/s |
| Supported Devices: | Disk array (RAID), tape drive |
| Channel Qty: | 8 |
| Max Storage Devices Qty: | 2048 |
| RAID Level: | RAID 0, RAID 1, RAID 10, RAID 1E |
| Expansion / Connectivity | |
| Interfaces: | 1 x SATA 6Gb/s / SAS 12Gb/s - 36 pin 4x Mini SAS HD (SFF-8644) (external) ¦ 1 x SATA 6Gb/s / SAS 12Gb/s - 4 x Mini SAS HD (SFF-8643) (internal) |
| Miscellaneous | |
| Features: | LED indicator, Advanced Data Streaming (ADS), UEFI support |
| MTBF: | 4,500,000 hours |
| Compliant Standards: | CISPR 22 Class B, ICES-003, IEC 60950, EMC, EN 60950-1, EN 60825-1, EN 60825-2, RoHS 2011/65/EU, EN 55024:2010, EN 55022:2010, FCC Part 15 Class B, VCCI V-3/2013.04, AS/NZS CISPR 22:2010 |
| Software / System Requirements | |
| Software Included: | ATTO ConfigTool, ATTO Power Center Pro |
| OS Required: | Apple MacOS, FreeBSD, SUSE Linux Enterprise Server, Microsoft Windows Server, Microsoft Windows, Red Hat Enterprise Linux, CentOS, VMware ESXi, Linux Fedora |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - 3 years |
