About the product

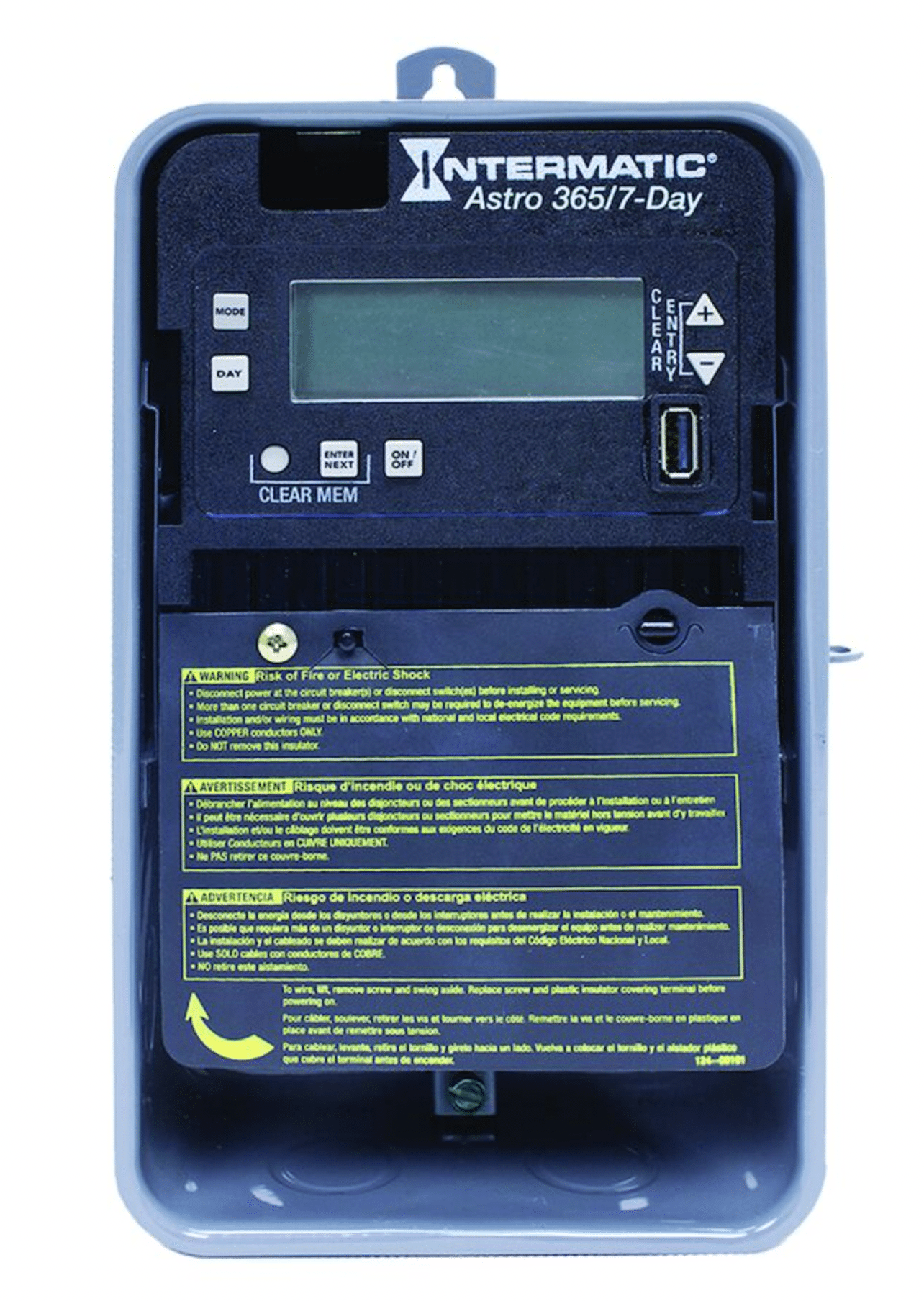

Intermatic Electronic Control, 365/7-Day Astronomic, Steel Enclosure
The ET2000 Series offers an easy-to-use interface, while still allowing to-the-minute scheduling capabilities for nearly any application. This series provides 50-holiday blocks with independent scheduling to ensure the loads are always in the proper ON/OFF state. This series also includes 96 ON/OFF events for even the most demanding schedules. The scheduling capabilities, configurable outputs, and a 100-hour backup without the need for batteries make this series ideal for nearly any application.
Intermatic Electronic Control, 365/7-Day Astronomic Features:
- 100-hour supercapacitor eliminates the need for batteries
- Up to 96 set points or events
- Up to 50-holiday blocks with schedule capabilities
- Automatic input voltage selection from 120 to 277 VAC, 60 Hz
- An additional mode of operation turns the ON/OFF buttons into 2-hour overrides
- Configurable outputs allow the control of various voltages and applications
- Relays incorporate zero-crossing technology to extend the life of the control
- Non-volatile EEPROM memory protects programming indefinitely
- LED compatible
- The USB port makes transferring and saving schedules easy
Intermatic Electronic Control, 365/7-Day Astronomic Applications:
- Outdoor Lighting Control
- Timing/Scheduling ON/OFF
- Machinery & Pump Controls
Intermatic Electronic Control, 365/7-Day Astronomic Specifications:
- General:
- Model Number: ET2805CR
- Description: Astronomic 7-Day/365 Day 1-Circuit Electronic Control, 120-277 VAC, SPST, Outdoor Metal Enclosure
- UPC Code: 078275148215
- Brand: Intermatic
- Country of Origin (Intermatic): MEXICO
- Warranty Period: 2-Year limited
- Control Specifications
- Minimum ON/OFF Times: 1 min
- Maximum ON/OFF Times: Indefinite
- Maximum ON/OFF Operations: 96
- Setpoint Program Count: 96
- ON/OFF Operations: 96
- Operation Features: Astronomic; Holiday
- Operation Mode: 7 day
- Daylight Savings Adjustment: Automatic
- Backup Restoration Time: 30 Minutes
- Backup Type: Supercapacitor
- Backup Protection Time: 100 Hour
- Application Compatibilities: LED
- Mechanical Specifications
- Enclosure Type Outdoor type 3R metal
- Dimensions
- Product Dimensions (H x W x D) in: 10.125 x 6.5 x 3.625 in
- Wire Size Min: #14 AWG
- Wire Size Max: #8 AWG
- Knockout Dimensions Bottom: (2) combination 1/2"" - 3/4
- Knockout Dimensions Back: (1) combination 1/2"" - 3/4
- Load Ratings
- Magnetic Ballast (NO) Range(s): 20 A, 120-277 VAC
- Resistive (NO) Range(s): 20 A, 28 VDC; 30 A, 120-240 VAC
- Inductive Load Ratings NO Ranges: 30 A, 120-240 VAC
- Electronic Ballast Load Ratings NO Ranges: 10 A, 120/277 VAC
- Tungsten (NO) Range(s): 5 A, 120-277 VAC
- Motor Load Ratings NO Ranges: 1 HP, 120 VAC; 2 HP, 240 VAC
- Electrical Specifications
- Voltage Selection Type: Auto Voltage
- Wiring Option: Terminals
- Input Voltage Range(s): 120-277 VAC, 60 Hz
- Number of Circuits: 1
- Switch Type: SPST
- Maximum Power Consumption (W): 3 W
- Electronic Series: ET2000 Series
- Packaging
- Shipping Weight (lbs): 3.3
- Unit Carton Dimensions (H x W x L) in: 10.063 x 3.625 x 6.5 in
- Environmental Specifications
- Temperature (operation): -40 °F to 104 °F / (-40 °C to 40 °C)
- Standards and Certifications
- UL Certification: cULus
- Other Certifications and Compatibilities: LED; Title 20
- California Proposition 65: Lead
Technical Specifications
Intermatic Electronic Control, 365/7-Day Astronomic, Steel Enclosure
The ET2000 Series offers an easy-to-use interface, while still allowing to-the-minute scheduling capabilities for nearly any application. This series provides 50-holiday blocks with independent scheduling to ensure the loads are always in the proper ON/OFF state. This series also includes 96 ON/OFF events for even the most demanding schedules. The scheduling capabilities, configurable outputs, and a 100-hour backup without the need for batteries make this series ideal for nearly any application.
Intermatic Electronic Control, 365/7-Day Astronomic Features:
- 100-hour supercapacitor eliminates the need for batteries
- Up to 96 set points or events
- Up to 50-holiday blocks with schedule capabilities
- Automatic input voltage selection from 120 to 277 VAC, 60 Hz
- An additional mode of operation turns the ON/OFF buttons into 2-hour overrides
- Configurable outputs allow the control of various voltages and applications
- Relays incorporate zero-crossing technology to extend the life of the control
- Non-volatile EEPROM memory protects programming indefinitely
- LED compatible
- The USB port makes transferring and saving schedules easy
Intermatic Electronic Control, 365/7-Day Astronomic Applications:
- Outdoor Lighting Control
- Timing/Scheduling ON/OFF
- Machinery & Pump Controls
Intermatic Electronic Control, 365/7-Day Astronomic Specifications:
- General:
- Model Number: ET2805CR
- Description: Astronomic 7-Day/365 Day 1-Circuit Electronic Control, 120-277 VAC, SPST, Outdoor Metal Enclosure
- UPC Code: 078275148215
- Brand: Intermatic
- Country of Origin (Intermatic): MEXICO
- Warranty Period: 2-Year limited
- Control Specifications
- Minimum ON/OFF Times: 1 min
- Maximum ON/OFF Times: Indefinite
- Maximum ON/OFF Operations: 96
- Setpoint Program Count: 96
- ON/OFF Operations: 96
- Operation Features: Astronomic; Holiday
- Operation Mode: 7 day
- Daylight Savings Adjustment: Automatic
- Backup Restoration Time: 30 Minutes
- Backup Type: Supercapacitor
- Backup Protection Time: 100 Hour
- Application Compatibilities: LED
- Mechanical Specifications
- Enclosure Type Outdoor type 3R metal
- Dimensions
- Product Dimensions (H x W x D) in: 10.125 x 6.5 x 3.625 in
- Wire Size Min: #14 AWG
- Wire Size Max: #8 AWG
- Knockout Dimensions Bottom: (2) combination 1/2"" - 3/4
- Knockout Dimensions Back: (1) combination 1/2"" - 3/4
- Load Ratings
- Magnetic Ballast (NO) Range(s): 20 A, 120-277 VAC
- Resistive (NO) Range(s): 20 A, 28 VDC; 30 A, 120-240 VAC
- Inductive Load Ratings NO Ranges: 30 A, 120-240 VAC
- Electronic Ballast Load Ratings NO Ranges: 10 A, 120/277 VAC
- Tungsten (NO) Range(s): 5 A, 120-277 VAC
- Motor Load Ratings NO Ranges: 1 HP, 120 VAC; 2 HP, 240 VAC
- Electrical Specifications
- Voltage Selection Type: Auto Voltage
- Wiring Option: Terminals
- Input Voltage Range(s): 120-277 VAC, 60 Hz
- Number of Circuits: 1
- Switch Type: SPST
- Maximum Power Consumption (W): 3 W
- Electronic Series: ET2000 Series
- Packaging
- Shipping Weight (lbs): 3.3
- Unit Carton Dimensions (H x W x L) in: 10.063 x 3.625 x 6.5 in
- Environmental Specifications
- Temperature (operation): -40 °F to 104 °F / (-40 °C to 40 °C)
- Standards and Certifications
- UL Certification: cULus
- Other Certifications and Compatibilities: LED; Title 20
- California Proposition 65: Lead
