About the product

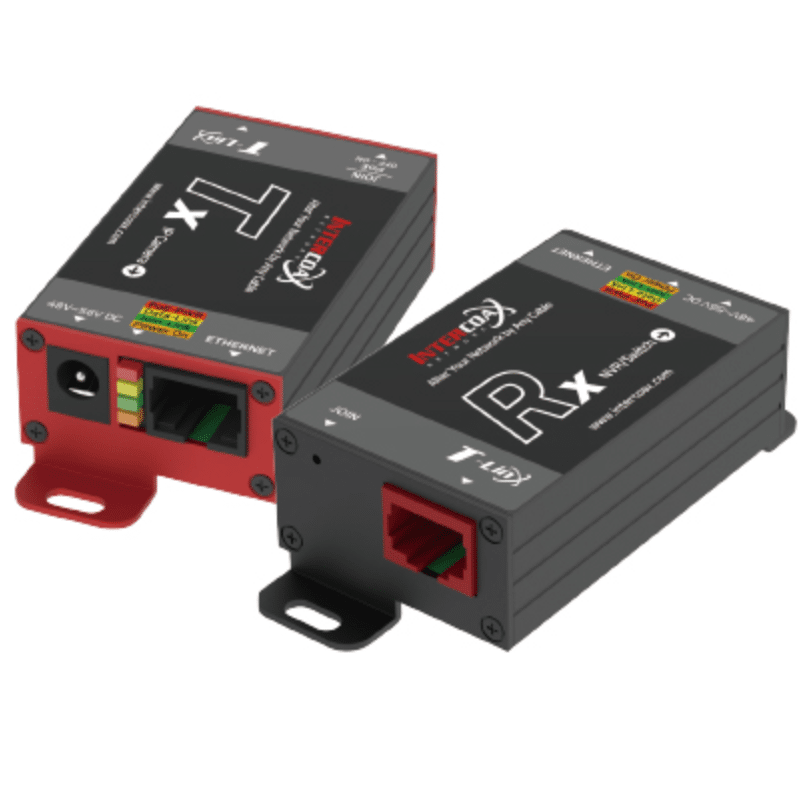

Intercoax Ethernet over UTP + PoE Extender, up to 2400M (EUP-8041T+EUP-8401R) + PWR Overview
EUP-8401 is a High-Speed, long-distance Ethernet & PoE extender that makes it possible to transmit the Ethernet signal up to 1.2 km and PoE up to 1.2 km via UTP cables in different situations.
It is a cost-effective and time-saving solution to migrate the existing analog system to IP based system since EUP-8401 supports easy installation utilizing the existing UTP cable.
With long distance transmission feature, the device makes to overcome 100 meters distance limitations easily and reduces the construction cost significantly compared with fiber optic configuration.
Intercoax Ethernet + PoE Extender + PWR Features
- Ethernet over UTP communication following IEEE1901 Standard
- Data + Power over UTP cable (Cat.5e or better)
- Data distance up to 1.2Km
- PoE distance up to 1.2Km
- Max. 80Mbps Bandwidth
- 10/100 Full Duplex
- 128bit AES network encryption
- Supports Multi-connection (Daisy chain, Star, etc.)
- PoE, PoE+, Extra PoE (Max. 60W output) (EUP-8401T only)
- PoE ON/OFF Switch (EUP-8401T only)
- Quality LED
- Plug & Play
- Current Protection for safe power transmission.
- Surge Protection
- Support PoE+ Input (25.5W) from PSE devices – EUP-8401R Only
- Ultra-Slim Design
Intercoax Ethernet + PoE Extender + PWR Specifications
- Interface
- EoC Signal: 1 x RJ45 - Ethernet over Coax (T-LinX)
- Ethernet: 1 x RJ45 - 10/100/1000 Base-T with Auto-detect MDIX
- Transmission Rate: 80Mbps Full Duplex (PHY: 200Mbps)
- Transmission Distance:
- Ethernet: up to 1.2Km(Cat.5 / Cat.5e)
- PoE (PoC): up to 1.2Km (Cat.5e / 7W camera)
- LED Indication:
- Ethernet: 1 x Ethernet Link(Yellow)
- EoC: 1 x Join(Green)
- Power: 1 x Power On(Amber)
- PoE:
- EUP-8401T: 1 x PoE Output(Red)
- EUP-8401R: 1 x PoE Input(Red)
- Encryption: 128-bit AES
- Power:
- Input
- EUP-8401T: T-Linx or DC12V~57V
- EUP-8401R: PoE Switch or DC12V~57V
- PoE Output:
- EUP-8401T:
- Support PoE (15W),
- PoE+ (30W),
- Extra PoE up to 60W
- EUP-8401R:
- PoE Not Supported PoC Only
- EUP-8401T:
- PoE Input:
- EUP-8401T: Not Supported
- EUP-8401R: Up to 25.5W (PD)
- Input
- Mechanical
- Dimension: 66.4(L) x 40.1(W) x 25(H)mm
- Weight: 78g
- Environment
- Operating Temp: -10 ~ 60°C
- Storage Temp: -40 ~ 80°C
- Relative Humidity: 10% ~ 90%
- Compliance
- Certification: FCC, CE, KC
- Surge Protection: IEC 61000-4-5 4kV(1.2 / 50us), 2kA(8 / 20us)
Optional Accessories: 56VDC / 1.2A External Power Supply
Technical Specifications
Intercoax Ethernet over UTP + PoE Extender, up to 2400M (EUP-8041T+EUP-8401R) + PWR Overview
EUP-8401 is a High-Speed, long-distance Ethernet & PoE extender that makes it possible to transmit the Ethernet signal up to 1.2 km and PoE up to 1.2 km via UTP cables in different situations.
It is a cost-effective and time-saving solution to migrate the existing analog system to IP based system since EUP-8401 supports easy installation utilizing the existing UTP cable.
With long distance transmission feature, the device makes to overcome 100 meters distance limitations easily and reduces the construction cost significantly compared with fiber optic configuration.
Intercoax Ethernet + PoE Extender + PWR Features
- Ethernet over UTP communication following IEEE1901 Standard
- Data + Power over UTP cable (Cat.5e or better)
- Data distance up to 1.2Km
- PoE distance up to 1.2Km
- Max. 80Mbps Bandwidth
- 10/100 Full Duplex
- 128bit AES network encryption
- Supports Multi-connection (Daisy chain, Star, etc.)
- PoE, PoE+, Extra PoE (Max. 60W output) (EUP-8401T only)
- PoE ON/OFF Switch (EUP-8401T only)
- Quality LED
- Plug & Play
- Current Protection for safe power transmission.
- Surge Protection
- Support PoE+ Input (25.5W) from PSE devices – EUP-8401R Only
- Ultra-Slim Design
Intercoax Ethernet + PoE Extender + PWR Specifications
- Interface
- EoC Signal: 1 x RJ45 - Ethernet over Coax (T-LinX)
- Ethernet: 1 x RJ45 - 10/100/1000 Base-T with Auto-detect MDIX
- Transmission Rate: 80Mbps Full Duplex (PHY: 200Mbps)
- Transmission Distance:
- Ethernet: up to 1.2Km(Cat.5 / Cat.5e)
- PoE (PoC): up to 1.2Km (Cat.5e / 7W camera)
- LED Indication:
- Ethernet: 1 x Ethernet Link(Yellow)
- EoC: 1 x Join(Green)
- Power: 1 x Power On(Amber)
- PoE:
- EUP-8401T: 1 x PoE Output(Red)
- EUP-8401R: 1 x PoE Input(Red)
- Encryption: 128-bit AES
- Power:
- Input
- EUP-8401T: T-Linx or DC12V~57V
- EUP-8401R: PoE Switch or DC12V~57V
- PoE Output:
- EUP-8401T:
- Support PoE (15W),
- PoE+ (30W),
- Extra PoE up to 60W
- EUP-8401R:
- PoE Not Supported PoC Only
- EUP-8401T:
- PoE Input:
- EUP-8401T: Not Supported
- EUP-8401R: Up to 25.5W (PD)
- Input
- Mechanical
- Dimension: 66.4(L) x 40.1(W) x 25(H)mm
- Weight: 78g
- Environment
- Operating Temp: -10 ~ 60°C
- Storage Temp: -40 ~ 80°C
- Relative Humidity: 10% ~ 90%
- Compliance
- Certification: FCC, CE, KC
- Surge Protection: IEC 61000-4-5 4kV(1.2 / 50us), 2kA(8 / 20us)
Optional Accessories: 56VDC / 1.2A External Power Supply
