About the product

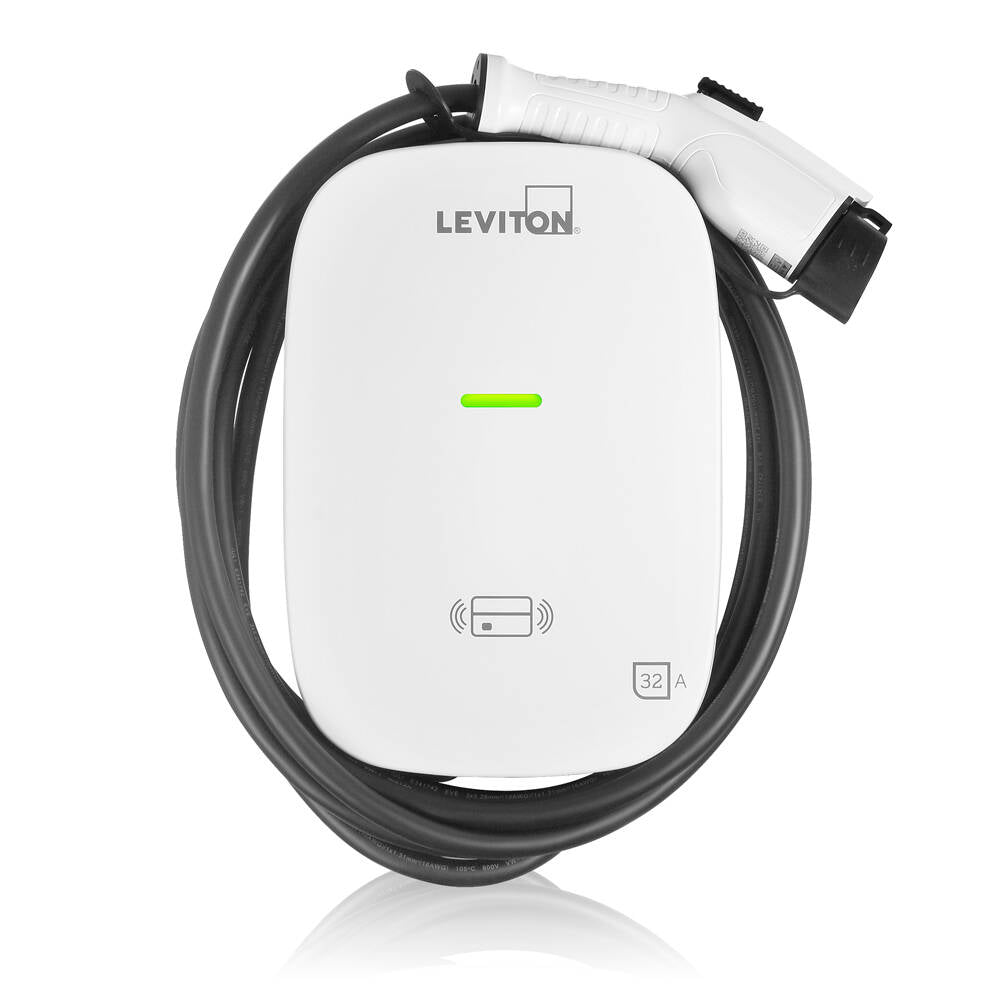

The Leviton EV320 is a high-quality Level 2 electric vehicle charging station that provides fast and efficient charging for your electric vehicle. With a 32 Amp charging rate, 208/240 VAC input voltage, and a 7.6 kW output, this charging station is a reliable and convenient option for your EV charging needs. It comes equipped with a J1772 charge connector and an 18-foot cord, and is a replacement for the EVR30-B1C and EVR30-R2C models. The EV320 includes a mounting bracket and pre-attached input cable for easy installation and is hardwired for a secure and reliable connection to your electrical system.
Leviton EV320 32 Amp Level 2 Electric Vehicle Charging Station Features:
- Fast and secure charging of any SAE J1772™ compatible electric vehicle
- Optional access control; station comes with RFID disabled - simply tap RFID card to activate
- Cable design prevents cord from freezing and cracking in extreme weather
- For indoor and outdoor use with a thermoplastic, water-resistant enclosure rated NEMA Type 3R
- Easy installation with pre-attached input cable and mounting hardware included
- Energy Star Certified
Leviton EV320 32 Amp Level 2 Electric Vehicle Charging Station Specifications:
Electrical Specifications:
- Amperage: 32 A
- Breaker: 40 A
- Charge Connector Cord: #10 AWG SAE J1772
- Number of Phase / Wire: L1, L2 and Ground, Bottom Feed
- Operating Temperature: -30°C to 50°C
- Output Power: 7.6kW
- Short Circuit Current Rating: 20 mA CCID per UL 2231
- Voltage: 208/240 VAC
Environmental Specifications:
- Altitude: Up to 6,500 ft. (2,000 m)
- Charging Cable Operating Temperature: -30°C to +50°C
- Cooling: Natural Cooling
- Operating Humidity: < 95% Relative Humidity, Non-Condensing
Material Specifications:
- Enclosure Material: Plastic (PC+PBT)
- Enclosure Rating: NEMA Type 3R
- Status Indicator: Power Present, Charging, Fault
Mechanical Specifications:
- Cable Length: 18 ft. (5.5 m)
- Product Features:
- Application: Home, Commercial
- Cover Locking Mechanism: Phillips Head Screws, No Padlock Option
- Device Type: Charger
Standards and Certifications:
- Standards and Certifications: UL2594, UL 2231-1, UL 2231-2, UL 2251, UL 62, UL 991, UL 1998, NFPA 70 Article 625, UL840, CSA Std. C22.2#280, OCPP 1.6 Compliant
Warranty:
- Warranty: 2-Year Limited
Technical Specifications
The Leviton EV320 is a high-quality Level 2 electric vehicle charging station that provides fast and efficient charging for your electric vehicle. With a 32 Amp charging rate, 208/240 VAC input voltage, and a 7.6 kW output, this charging station is a reliable and convenient option for your EV charging needs. It comes equipped with a J1772 charge connector and an 18-foot cord, and is a replacement for the EVR30-B1C and EVR30-R2C models. The EV320 includes a mounting bracket and pre-attached input cable for easy installation and is hardwired for a secure and reliable connection to your electrical system.
Leviton EV320 32 Amp Level 2 Electric Vehicle Charging Station Features:
- Fast and secure charging of any SAE J1772™ compatible electric vehicle
- Optional access control; station comes with RFID disabled - simply tap RFID card to activate
- Cable design prevents cord from freezing and cracking in extreme weather
- For indoor and outdoor use with a thermoplastic, water-resistant enclosure rated NEMA Type 3R
- Easy installation with pre-attached input cable and mounting hardware included
- Energy Star Certified
Leviton EV320 32 Amp Level 2 Electric Vehicle Charging Station Specifications:
Electrical Specifications:
- Amperage: 32 A
- Breaker: 40 A
- Charge Connector Cord: #10 AWG SAE J1772
- Number of Phase / Wire: L1, L2 and Ground, Bottom Feed
- Operating Temperature: -30°C to 50°C
- Output Power: 7.6kW
- Short Circuit Current Rating: 20 mA CCID per UL 2231
- Voltage: 208/240 VAC
Environmental Specifications:
- Altitude: Up to 6,500 ft. (2,000 m)
- Charging Cable Operating Temperature: -30°C to +50°C
- Cooling: Natural Cooling
- Operating Humidity: < 95% Relative Humidity, Non-Condensing
Material Specifications:
- Enclosure Material: Plastic (PC+PBT)
- Enclosure Rating: NEMA Type 3R
- Status Indicator: Power Present, Charging, Fault
Mechanical Specifications:
- Cable Length: 18 ft. (5.5 m)
- Product Features:
- Application: Home, Commercial
- Cover Locking Mechanism: Phillips Head Screws, No Padlock Option
- Device Type: Charger
Standards and Certifications:
- Standards and Certifications: UL2594, UL 2231-1, UL 2231-2, UL 2251, UL 62, UL 991, UL 1998, NFPA 70 Article 625, UL840, CSA Std. C22.2#280, OCPP 1.6 Compliant
Warranty:
- Warranty: 2-Year Limited
