About the product

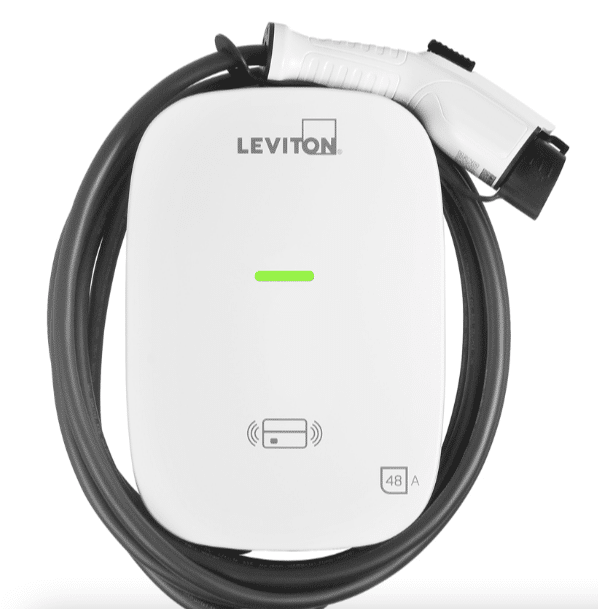

EV Series Level 2 Electric Vehicle Charging Station, 48A, 208/240 VAC, 11.6kW Output, J1772 Charge Connector, 18' Cord, Replacement for EVR40-B2C, Includes Mounting Bracket and Pre-Attached Input Cable, Hardwired
Leviton EV480 Charging Station Features:
- Fast and secure charging of any SAE J1772™ compatible electric vehicle
- Optional access control: station comes with RFID disabled - simply tap RFID card to activate
- Cable design prevents cord from freezing and cracking in extreme weather
- For indoor and outdoor use with a thermoplastic, water-resistant enclosure rated NEMA Type 3R

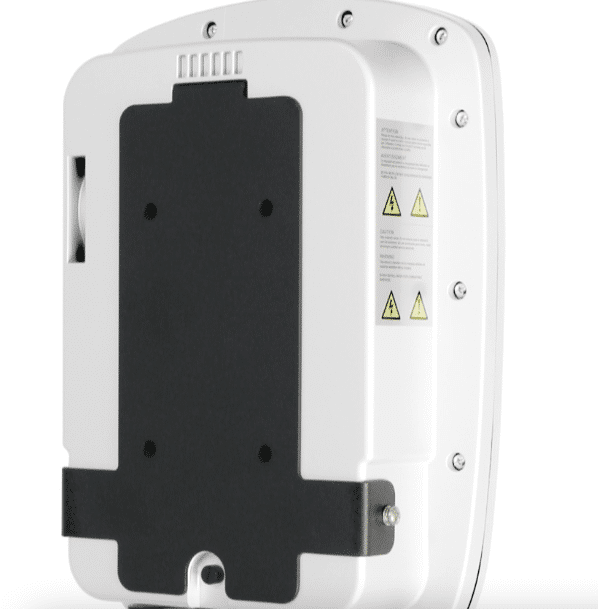

- Easy installation with pre-attached input cable and mounting hardware included
- Energy Star Certified
Leviton EV480 Charging Station Specifications:
Electrical Specifications
- Amperage: 48 A
- Breaker: 60 A
- Charge Connector Cord: #7 AWG SAE J1772
- Number of Phase / Wire: L1, L2 and Ground, Bottom Feed
- Operating Temperature: -30°C to 50°C
- Output Power: 11.6kW
- Short Circuit Current Rating: 20 mA CCID per UL 2231
- Voltage: 208/240 VAC
Environmental Specifications
- Altitude: Up to 6,500 ft. (2,000 m)
- Charging Cable Operating Temperature: -30°C to +50°C
- Cooling: Natural Cooling
- Operating Humidity: < 95% Relative Humidity, Non-Condensing
Material Specifications
- Enclosure Material: Plastic (PC+PBT)
- Enclosure Rating: NEMA Type 3R
- Status Indicator: Power Present, Charging, Fault
Mechanical Specifications
- Cable Length: 18 ft. (5.5 m)
- Product Features
- Application: Home, Commercial
- Cover Locking Mechanism: Phillips Head Screws, No Padlock Option
- Device Type: Charger
Standards and Certifications
- Standards and Certifications: UL2594, UL 2231-1, UL 2231-2, UL 2251, UL 62, UL 991, UL 1998, NFPA 70 Article 625, UL840, CSA Std. C22.2#280, OCPP 1.6 Compliant
Technical Specifications
EV Series Level 2 Electric Vehicle Charging Station, 48A, 208/240 VAC, 11.6kW Output, J1772 Charge Connector, 18' Cord, Replacement for EVR40-B2C, Includes Mounting Bracket and Pre-Attached Input Cable, Hardwired
Leviton EV480 Charging Station Features:
- Fast and secure charging of any SAE J1772™ compatible electric vehicle
- Optional access control: station comes with RFID disabled - simply tap RFID card to activate
- Cable design prevents cord from freezing and cracking in extreme weather
- For indoor and outdoor use with a thermoplastic, water-resistant enclosure rated NEMA Type 3R
- Easy installation with pre-attached input cable and mounting hardware included
- Energy Star Certified
Leviton EV480 Charging Station Specifications:
Electrical Specifications
- Amperage: 48 A
- Breaker: 60 A
- Charge Connector Cord: #7 AWG SAE J1772
- Number of Phase / Wire: L1, L2 and Ground, Bottom Feed
- Operating Temperature: -30°C to 50°C
- Output Power: 11.6kW
- Short Circuit Current Rating: 20 mA CCID per UL 2231
- Voltage: 208/240 VAC
Environmental Specifications
- Altitude: Up to 6,500 ft. (2,000 m)
- Charging Cable Operating Temperature: -30°C to +50°C
- Cooling: Natural Cooling
- Operating Humidity: < 95% Relative Humidity, Non-Condensing
Material Specifications
- Enclosure Material: Plastic (PC+PBT)
- Enclosure Rating: NEMA Type 3R
- Status Indicator: Power Present, Charging, Fault
Mechanical Specifications
- Cable Length: 18 ft. (5.5 m)
- Product Features
- Application: Home, Commercial
- Cover Locking Mechanism: Phillips Head Screws, No Padlock Option
- Device Type: Charger
Standards and Certifications
- Standards and Certifications: UL2594, UL 2231-1, UL 2231-2, UL 2251, UL 62, UL 991, UL 1998, NFPA 70 Article 625, UL840, CSA Std. C22.2#280, OCPP 1.6 Compliant
