About the product

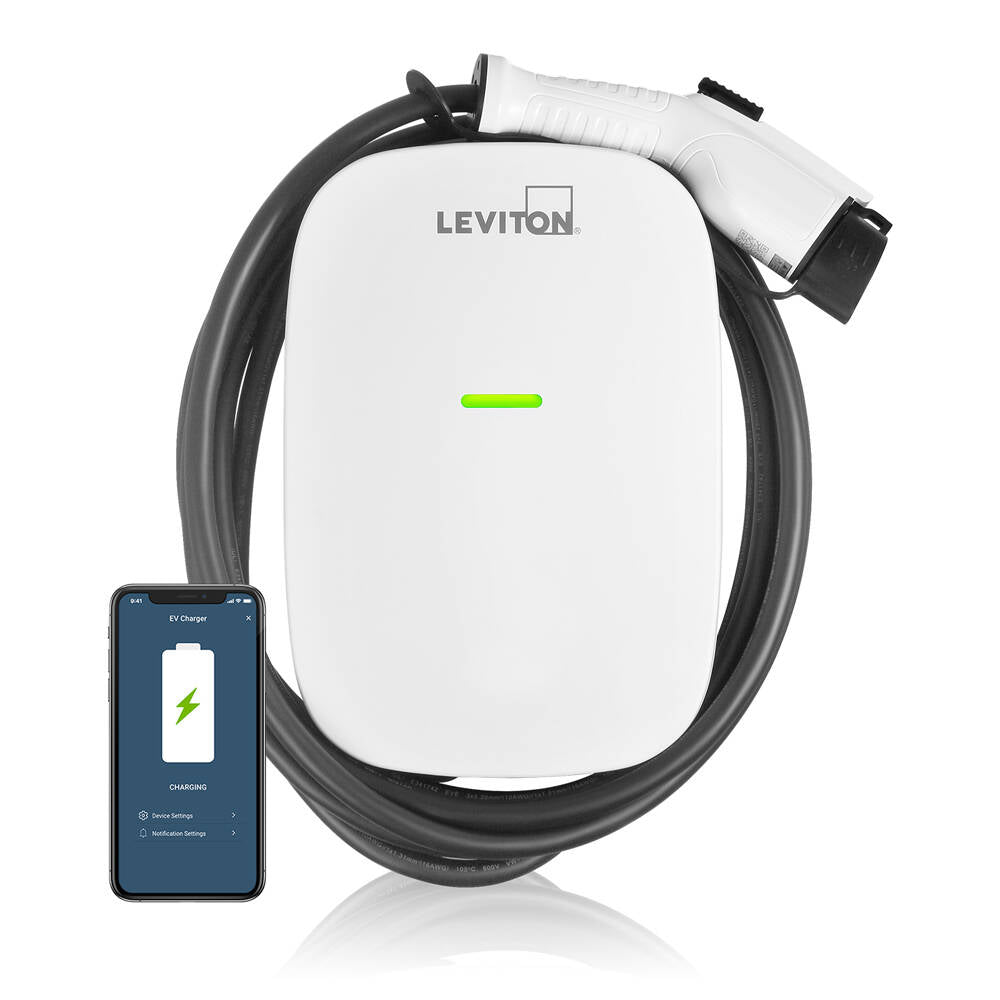

The EV80W is a powerful Level 2 Electric Vehicle Charging Station designed to provide fast and reliable charging for electric vehicles. With a high amperage of 80A and support for 208/240 VAC power input, it delivers an impressive 19.2kW output, ensuring quick charging times for your electric vehicle. Equipped with a J1772 charge connector and an 18-foot cord, this charging station offers convenience and flexibility.
This WiFi-enabled EV Charger works with the my Leviton app so you can see the charging status from anywhere. For more information visit: https://www.leviton.com/en/products/my-leviton-app.
Leviton EV80W 80 Amp Level 2 Electric Vehicle Charging Station With Wi-Fi Features:
- SMART – Works with the My Leviton App via Wi-Fi, allowing you to take control of your entire home, from load center to lighting to EV charger.
- THE BRAND YOU TRUST – Leviton has been in homes for over a century and electrifying vehicles for over a decade. Charge at ease with UL/Energy Star Certified stations supported by a 24/7 dedicated team
- FOR ANY APPLICATION – featuring a water-resistant enclosure rated NEMA Type 3R and a cable designed to prevent freezing and cracking in extreme weather, you can install both indoors and outdoors
- EASY TO INSTALL – benefit from major times savings with a pre-attached input cable and included mounting hardware. Note this station is hardwired and requires a 100-amp breaker

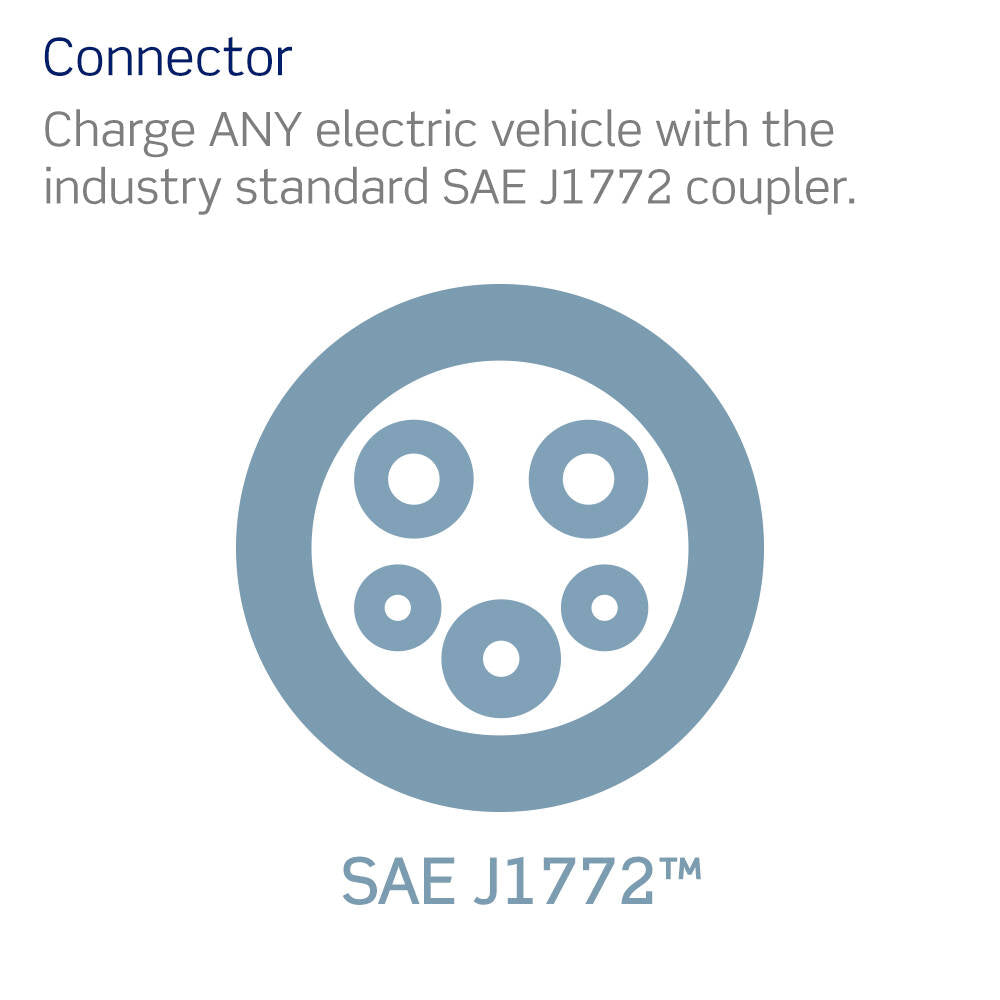

- CHARGE ANY ELECTRIC VEHICLE – with an industry-standard SAE J1772™ cable, the EV Series can charge any EV, including Audi, BMW, Ford, Honda, Subaru, and even Tesla with a Tesla-supplied adapter
Leviton EV80W 80 Amp Level 2 Electric Vehicle Charging Station With Wi-Fi Specifications:
Electrical Specifications:
- Amperage: 80 A
- Breaker: 100 A
- Charge Connector Cord: #7 AWG SAE J1772
- Number of Phase / Wire: L1, L2, and Ground, Bottom Feed
- Operating Temperature: -30°C to 50°C
- Output Power: 19.2 kW
- Short Circuit Current Rating: 20 mA CCID per UL 2231
- Voltage: 208/240 VAC
Environmental Specifications:
- Altitude: Up to 6,500 ft. (2,000 m)
- Charging Cable Operating Temperature: -30°C to +50°C
- Cooling: Natural Cooling
- Operating Humidity: < 95% Relative Humidity, Non-Condensing
Material Specifications:
- Enclosure Material: Plastic (PC+PBT)
- Enclosure Rating: NEMA Type 3R
- Status Indicator: Power Present, Charging, Fault
Mechanical Specifications:
- Cable Length: 18 ft. (5.5 m)
Product Features:
- Application: Home, Commercial
- Cover Locking Mechanism: Phillips Head Screws, No Padlock Option
- Device Type: Charger
- Feature: My Leviton Enabled
Standards and Certifications:
- Standards and Certifications: UL2594, UL 2231-1, UL 2231-2, UL 2251, UL 62, UL 991, UL 1998, NFPA 70 Article 625, UL840, CSA Std. C22.2#280, OCPP 1.6 Compliant
Warranty:
- Warranty: 2-Year Limited
Technical Specifications
The EV80W is a powerful Level 2 Electric Vehicle Charging Station designed to provide fast and reliable charging for electric vehicles. With a high amperage of 80A and support for 208/240 VAC power input, it delivers an impressive 19.2kW output, ensuring quick charging times for your electric vehicle. Equipped with a J1772 charge connector and an 18-foot cord, this charging station offers convenience and flexibility.
This WiFi-enabled EV Charger works with the my Leviton app so you can see the charging status from anywhere. For more information visit: https://www.leviton.com/en/products/my-leviton-app.
Leviton EV80W 80 Amp Level 2 Electric Vehicle Charging Station With Wi-Fi Features:
- SMART – Works with the My Leviton App via Wi-Fi, allowing you to take control of your entire home, from load center to lighting to EV charger.
- THE BRAND YOU TRUST – Leviton has been in homes for over a century and electrifying vehicles for over a decade. Charge at ease with UL/Energy Star Certified stations supported by a 24/7 dedicated team
- FOR ANY APPLICATION – featuring a water-resistant enclosure rated NEMA Type 3R and a cable designed to prevent freezing and cracking in extreme weather, you can install both indoors and outdoors
- EASY TO INSTALL – benefit from major times savings with a pre-attached input cable and included mounting hardware. Note this station is hardwired and requires a 100-amp breaker
- CHARGE ANY ELECTRIC VEHICLE – with an industry-standard SAE J1772™ cable, the EV Series can charge any EV, including Audi, BMW, Ford, Honda, Subaru, and even Tesla with a Tesla-supplied adapter
Leviton EV80W 80 Amp Level 2 Electric Vehicle Charging Station With Wi-Fi Specifications:
Electrical Specifications:
- Amperage: 80 A
- Breaker: 100 A
- Charge Connector Cord: #7 AWG SAE J1772
- Number of Phase / Wire: L1, L2, and Ground, Bottom Feed
- Operating Temperature: -30°C to 50°C
- Output Power: 19.2 kW
- Short Circuit Current Rating: 20 mA CCID per UL 2231
- Voltage: 208/240 VAC
Environmental Specifications:
- Altitude: Up to 6,500 ft. (2,000 m)
- Charging Cable Operating Temperature: -30°C to +50°C
- Cooling: Natural Cooling
- Operating Humidity: < 95% Relative Humidity, Non-Condensing
Material Specifications:
- Enclosure Material: Plastic (PC+PBT)
- Enclosure Rating: NEMA Type 3R
- Status Indicator: Power Present, Charging, Fault
Mechanical Specifications:
- Cable Length: 18 ft. (5.5 m)
Product Features:
- Application: Home, Commercial
- Cover Locking Mechanism: Phillips Head Screws, No Padlock Option
- Device Type: Charger
- Feature: My Leviton Enabled
Standards and Certifications:
- Standards and Certifications: UL2594, UL 2231-1, UL 2231-2, UL 2251, UL 62, UL 991, UL 1998, NFPA 70 Article 625, UL840, CSA Std. C22.2#280, OCPP 1.6 Compliant
Warranty:
- Warranty: 2-Year Limited
