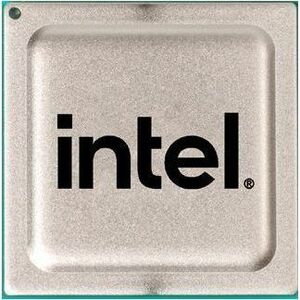

MM#999W9D ETHERNET CONTROLLER E810-CAM1 TRAY

Intel® Ethernet 800 Series supports up to 100Gb/s throughput for a variety of workloads.

Enterprise:

• Broad physical interfaces support, thorough test and validation with ecosystem devices for compatibility
• Extensive Microsoft solution support

Communications:

• Flexible Ethernet Port Configuration with link modes supporting different fan-in or fan-out connections
• Leveraging the Intel Ethernet 800 Series' fully programmable pipeline, DDP can add or modify protocols on-demand improving packet processing efficiency
• Enhanced DPDK for Network Functions Virtualization acceleration, advanced packet forwarding, and highly effective packet processing
• Supports both IEEE 1588 PTP v1 and v2 with per-packet time stamping

Cloud:

• Up to 100Gb/s throughput for diverse workloads in modern data centers
• Support both iWARP and RoCEv2 RDMA, selectable via software per port for low-latency, high-throughput workloads
• Application Device Queues (ADQ) to increase application predictability, reduce application latency and improve application throughput

Intel® Ethernet Products are customers' choice for extensive compatibility, performance assurance, broad product selection, and world-wide support.

All Intel® Ethernet 800 Series Controllers¹ include these technologies: | Supports both iWARP and RoCEv2 RDMA

RDMA is a host-offload, host-bypass technology that enables a direct memory-to-memory data communication between applications over a network. RDMA provides high throughput and low-latency performance for high-speed Ethernet by eliminating three major sources of networking overhead: TCP/IP stack process, memory copies, and application context switches.

RoCEv2 (RDMA over Converged Ethernet):

RoCEv2 substitutes the InfiniBand physical layer and data link layer with Ethernet, operates on top of UDP/ IP, and is routable over IP networks.

iWARP, IETF standard protocols based:

Delivers RDMA on top of the pervasive TCP/IP protocol. iWARPRDMA runs over standard network and transport layers and works with all Ethernet network infrastructure. TCP provides flow control and congestion management and does not require a lossless Ethernet network. iWARP is a highly routable and scalable RDMA implementation. Intel Ethernet 800 Series supports both RoCEv2 and iWARP that are selectable via software per port to provide the flexibility that customers need.

Deliver consistent application performance with Application Device Queues (ADQ)

As modern data centers scale, a key challenge is to provide scalable and predictable application-level performance. ADQ technology improves performance scalability and predictability by dedicating specific resources to key workloads. ADQ enables application-specific data steering, signaling, and rate limiting using an optimized application thread to device data path.

• Supports multiple port speeds: E810-CAM1/CAM2: 100/50/25/10GbE - E810-XXVAM2: 25/10/1GbE
• Application Device Queues (ADQ)
• Dynamic Device Personalization (DDP)
• Enhanced Data Plane Development Kit (DPDK)
• iWARP and RoCEv2 Remote Direct Memory Access (RDMA)
• Intel® Ethernet Adaptive Virtual Function (Intel® Ethernet AVF)
• Enhanced server virtualization: 256 VFs, 768 VSIs
• Optimized Advanced Transmission Scheduler
• Extensive network protocol support
• IEEE 1588 Precision Time Protocol (PTP)
