About the product

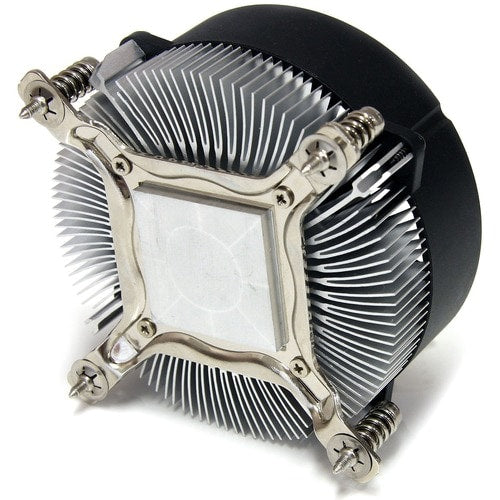

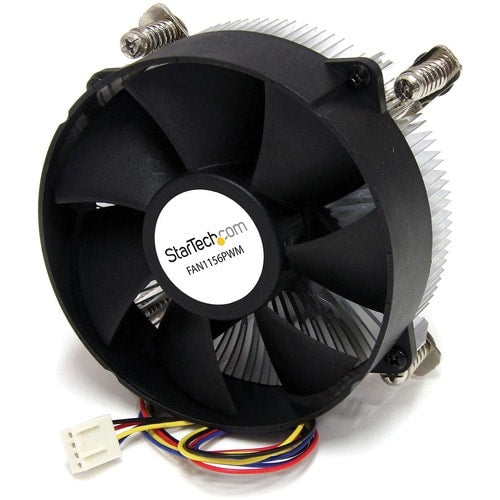

Add a Variable Speed PWM-Controlled CPU Cooler to an LGA1156/1155 System. The FAN1156PWM CPU Cooler with PWM Cooling Fan for Socket LGA1156/1155 systems provides reliable and efficient cooling for compatible Intel® Core™ i3/i5/i7 CPUs.
With Pulse Width Modulation (PWM) technology, the fan speed can be dynamically controlled by the motherboard, so the fan runs at a speed that suits the operating conditions - lowering power consumption and fan noise when the system is idle, and delivering maximum cooling under full load conditions. Backed by a StarTech.com 2-year warranty and free lifetime technical support.
More from the Manufacturer
- 4-pin Pulse Width Modulation (PWM) motherboard connector
- 95mm Ever Lubricate Bearing fan design
- Aluminum heatsink construction
Technical Specifications
| Interfaces/Ports | |
| Connectors | 4-pin PWM |
| Power Description | |
| Input Voltage | 12 V DC |
| Heatsink Information | |
| Compatible Intel Socket | H2 LGA-1155 |
| H LGA-1156 | |
| Fan Information | |
| Fan Bearing Type | Lubricate Bearing |
| Number of Fans | 1 |
| Maximum Airflow | 65.60 CFM (111.45m³/h) |
| Fan Speed (Max) | 3000 rpm |
| Airflow Details | 1 x 65.60CFM |
| Miscellaneous | |
| Application/Usage | Processor |
| Compatibility | Intel Core processors:
|
| Certifications & Standards | CE |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| General Information | |
| Product Type | Cooling Fan/Heatsink |
| Manufacturer Part Number | FAN1156PWM |
| Manufacturer Website Address | http://www.startech.com |
| Packaged Quantity | 1 Each |
| Manufacturer | StarTech.com |
| Product Model | FAN1156PWM |
| Product Name | 95mm CPU Cooler Fan with Heatsink for Socket LGA1156/1155 with PWM |
| Brand Name | StarTech.com |
| Physical Characteristics | |
| Weight (Approximate) | 9.60 oz (272.16 g) |
| Form Factor | Internal |
| Height | 2.20" (55.88 mm) |
| Width | 3.70" (93.98 mm) |
| Depth | 3.70" (93.98 mm) |
| Product Color | Black |
| Color Family | Black |
| Maximum Fan Diameter | 3.74" (95 mm) |
| Fan Diameter Details | 1 x 95mm |
| Heatsink Material | Aluminum |
