About the product

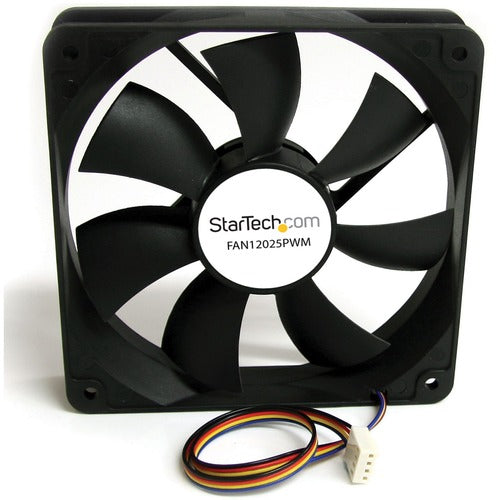

Add a Variable Speed, PWM-controlled Cooling Fan to your Computer Case. The FAN12025PWM 120mm PWM Case Fan adds an efficient air cooling solution to computer cases or other enclosures to help ensure optimal performance from internal components.
With Pulse Width Modulation (PWM) technology, the fan speed can be dynamically controlled by the motherboard, so the fan runs at a speed that suits the operating conditions - lowering power consumption and fan noise when the system is idle, and delivering maximum cooling under full load conditions.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
With Pulse Width Modulation (PWM) technology, the fan speed can be dynamically controlled by the motherboard, so the fan runs at a speed that suits the operating conditions - lowering power consumption and fan noise when the system is idle, and delivering maximum cooling under full load conditions.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
More from the Manufacturer
- 4-pin Pulse Width Modulation (PWM) motherboard connector
- Ever Lubricate Bearing design

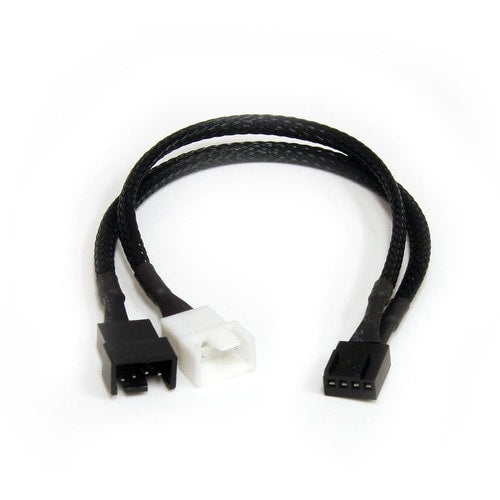

- Includes a PWM Y-split cable
Technical Specifications
| Interfaces/Ports | |
| Connectors | 4-pin PWM |
| Power Description | |
| Input Voltage | 12 V DC |
| Fan Information | |
| Fan Bearing Type | Lubricate Bearing |
| Number of Fans | 1 |
| Maximum Airflow | 78.41 CFM (133.22m³/h) |
| Fan Speed (Max) | 2200 rpm |
| Airflow Details | 1 x 78.41CFM |
| General Information | |
| Product Type | Cooling Fan |
| Manufacturer Part Number | FAN12025PWM |
| Manufacturer Website Address | http://www.startech.com |
| Packaged Quantity | 1 Each |
| Manufacturer | StarTech.com |
| Product Name | 120x25mm Computer Case Fan with PWM - PulseWidth Modulation Connector |
| Brand Name | StarTech.com |
| Miscellaneous | |
| Application/Usage | Case |
| Package Contents |
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) | |
| Restriction of Hazardous Substances (RoHS) | |
| Physical Characteristics | |
| Weight (Approximate) | 4.16 oz (118 g) |
| Fan Height | 0.98" (25 mm) |
| Fan Width | 4.72" (120 mm) |
| Fan Depth | 4.72" (120 mm) |
| Maximum Fan Diameter | 4.72" (120 mm) |
| Fan Diameter Details | 1 x 120mm |
| Product Material | Plastic |
