About the product

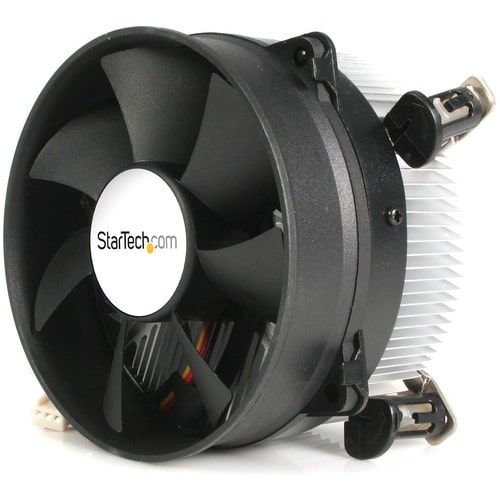

This Socket T/775 cooler is designed specifically for the Intel Socket 775 (Socket T) range of processors, including Intel Core 2 Duo and Intel Core 2 Quad, Core 2 Duo Extreme CPUs. The CPU cooler features a large aluminum heatsink that maximizes dissipation of the heat around the CPU, as well a low-noise 95mm fan that provides up to 50 CFM of air circulation, helping to keep the CPU cooler for optimized performance. The Socket 775/T cooler/fan offers simple installation, providing tool-less clips for easy connection to the motherboard. A dependable, high quality CPU cooling solution, the Socket 775/Socket T CPU cooler is backed by StarTech.com's 2-year warranty.
More from the Manufacturer
- Compatible with Intel Socket-T/LGA-775 motherboards
- Aluminum heatsink
- 95mm Ever-Lubricate bearing cooling fan
Technical Specifications
| Interfaces/Ports | |
| Connectors | 3-pin TX3 |
| Power Description | |
| Input Voltage | 12 V DC |
| Heatsink Information | |
| Fins/Pins Style | Straight Fin |
| Cooler Type | Thermoelectric |
| Fan Information | |
| Fan Bearing Type | Ever Lubricate Bearing |
| Number of Fans | 1 |
| Maximum Airflow | 49.37 CFM (83.88m³/h) |
| Fan Speed (Max) | 2600 rpm |
| Airflow Details | 1 x 49.37CFM |
| General Information | |
| Product Type | Cooling Fan/Heatsink |
| Manufacturer Part Number | FAN775E |
| Manufacturer Website Address | http://www.startech.com |
| Packaged Quantity | 1 Each |
| Manufacturer | StarTech.com |
| Product Name | 95mm Socket T 775 CPU Fan with Heatsink |
| Brand Name | StarTech.com |
| Miscellaneous | |
| Additional Information |
|
| Application/Usage | Processor |
| Package Contents |
|
| Compatibility |
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Waste Electrical and Electronic Equipment Directive (WEEE) | |
| Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) | |
| Physical Characteristics | |
| Weight (Approximate) | 13.60 oz (385.55 g) |
| Height | 2.70" (68.58 mm) |
| Width | 3.70" (93.98 mm) |
| Fan Location | Side |
| Product Color | Black |
| Color Family | Black |
| Maximum Fan Diameter | 3.74" (95 mm) |
| Fan Diameter Details | 1 x 95mm |
| Heatsink Material | Aluminum |
