About the product

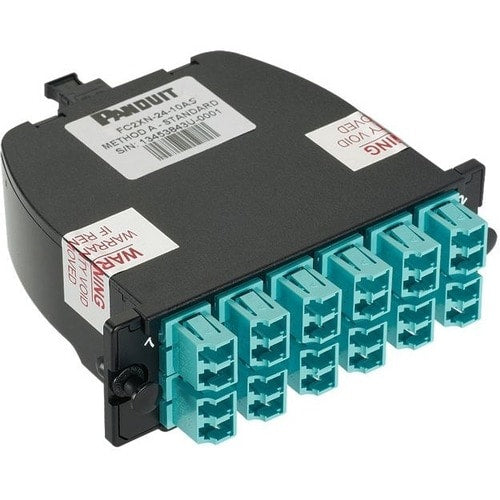

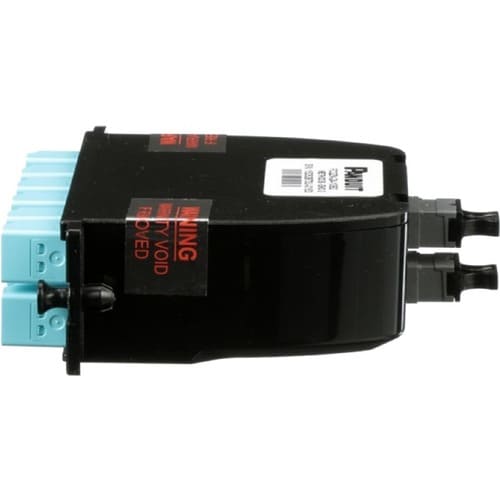

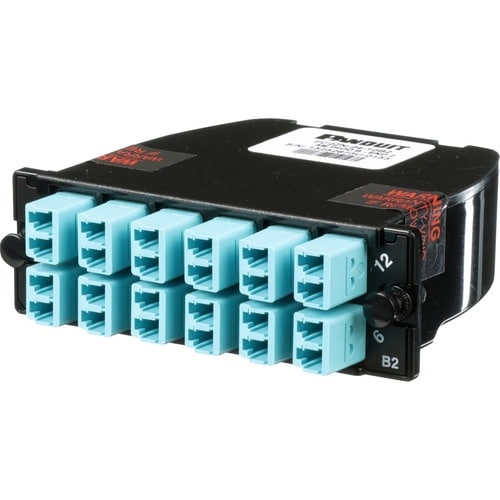

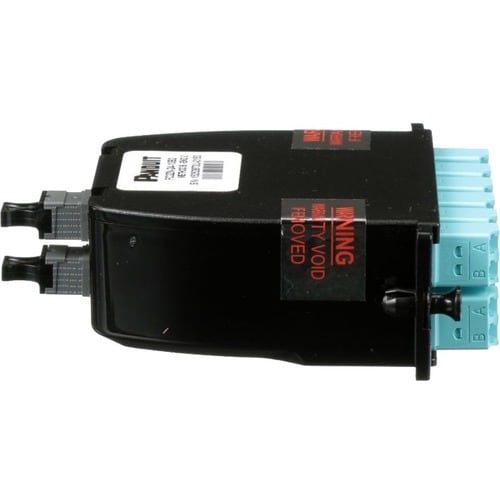

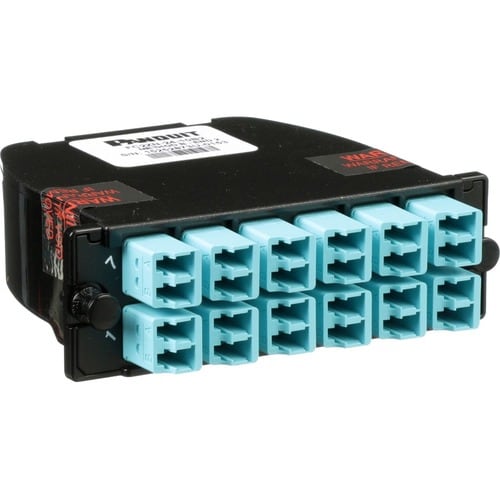

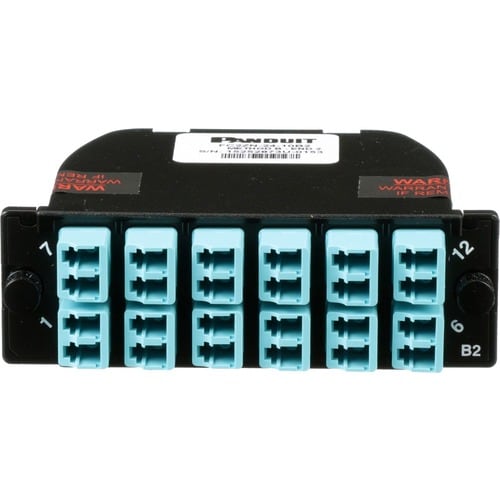

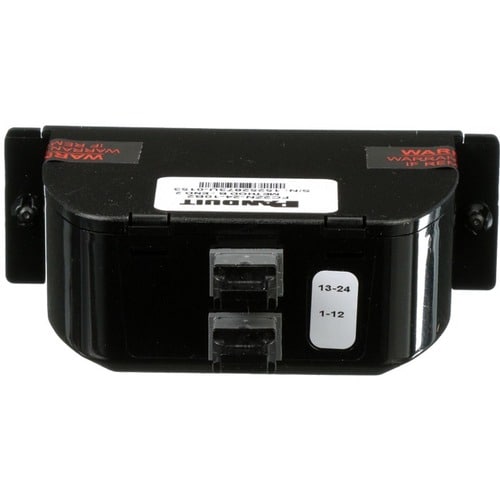

QuickNet™ MTP* Fiber Optic Cassettes consist of pre-terminated LC or SC adapters for quick and easy deployment in high density applications and provide efficient utilization of rack space and design flexibility. These cassettes comply with all multimode and singlemode channel requirements. QuickNet™ MTP* Fiber Optic Cassettes are available with a standard channel insertion loss of 0.75dB max and an optimized loss of 0.5dB max. The cassettes offer 12-fiber MTP* adapter(s) on the rear of the units routed to duplex LC, duplex SC, or simplex SC adapters on the front patch field. Equipped with LC duplex adapters, the cassette houses a maximum density of 24 fibers for a total of four cassettes or 96 fibers when incorporated into a 1 RU patch panel. Adapter housing colors follow TIA/EIA-568-C.3 suggested color identification scheme. QuickNet™ MTP* Fiber Optic Cassettes interconnect with high-density fiber cable assemblies for quick connection of remote or data center applications.
Technical Specifications
| Miscellaneous | |
| Country of Origin | Costa Rica |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Physical Characteristics | |
| Height | 1.40" (35.56 mm) |
| Width | 3.50" (88.90 mm) |
| Depth | 4.20" (106.68 mm) |
| Product Color | Aqua |
| Product Material | Zirconia Ceramic |
| Technical Information | |
| Connector Type on First End | MTP/MPO Network - Male |
| Connector Type on Second End | LC - Female |
| Adapter Type | Fiber Optic |
| Connector on First End Details | 2 x MTP/MPO Network Male |
| Connector on Second End Details | 12 x LC Cassette Female |
| General Information | |
| Product Type | Network Adapter |
| Manufacturer Part Number | FC2ZN-24-10B2 |
| Manufacturer Website Address | http://www.panduit.com |
| Packaged Quantity | 1 |
| Manufacturer | PANDUIT CORP |
| Product Name | QuickNet Fiber Optic Duplex Network Adapter |
| Product Line | QuickNet |
| Brand Name | Panduit |
