About the product

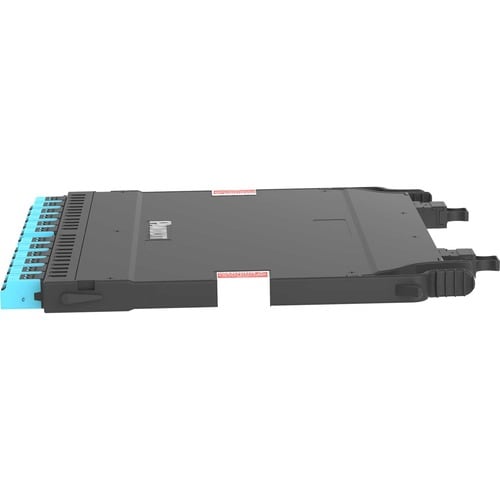

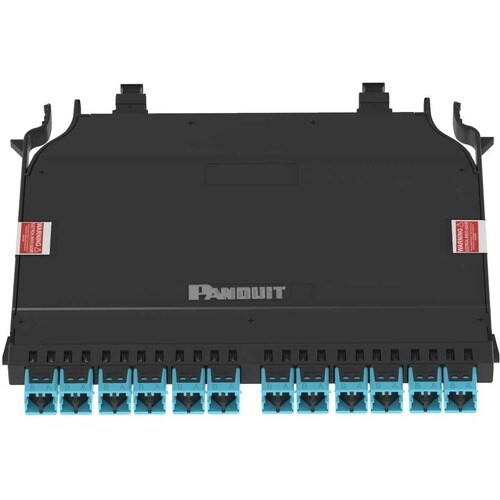

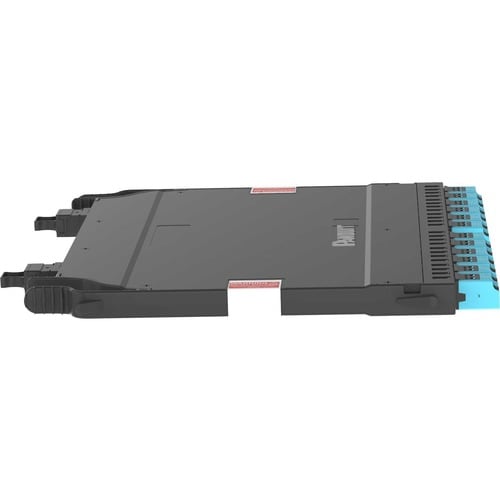

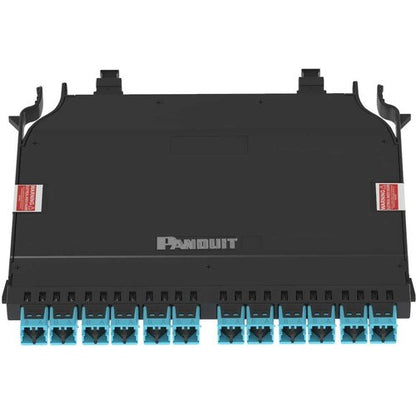

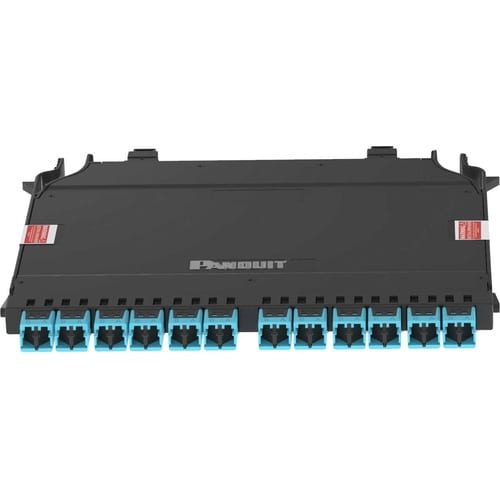

The HD Flex™ Cassette is OS2 MPO to LC and supports 24 fibers total. It is standard IL and uses modified Method A polarity with flipped pairs. The cassette has a black cover with a black MPO connector and 6 aqua duplex LC adapters with integral shutters to prevent contamination .
Technical Specifications
| Interfaces/Ports | |
| Number of LC Ports | 6 |
| Total Number of Ports | 24 |
| LC Port Type | Duplex |
| Miscellaneous | |
| Additional Information | Fiber Type:
Number of Fibers:
Connector 2 Type:
Product Type:
Application:
|
| Certifications & Standards |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| General Information | |
| Product Type | Network Patch Panel |
| Manufacturer Part Number | FHC9N-24-10AF |
| Manufacturer Website Address | http://www.panduit.com |
| Manufacturer | PANDUIT CORP |
| Product Name | HD Flex MPO-LC Cassette, OS2, 24 Fiber, Method A |
| Product Line | HD Flex |
| Brand Name | Panduit |
| Physical Characteristics | |
| Height | 0.46" (11.68 mm) |
| Width | 7.50" (190.50 mm) |
| Depth | 7.30" (185.42 mm) |
| Product Color | Aqua |
| Blue | |
| Product Material | Ceramic |
| Zirconia |
