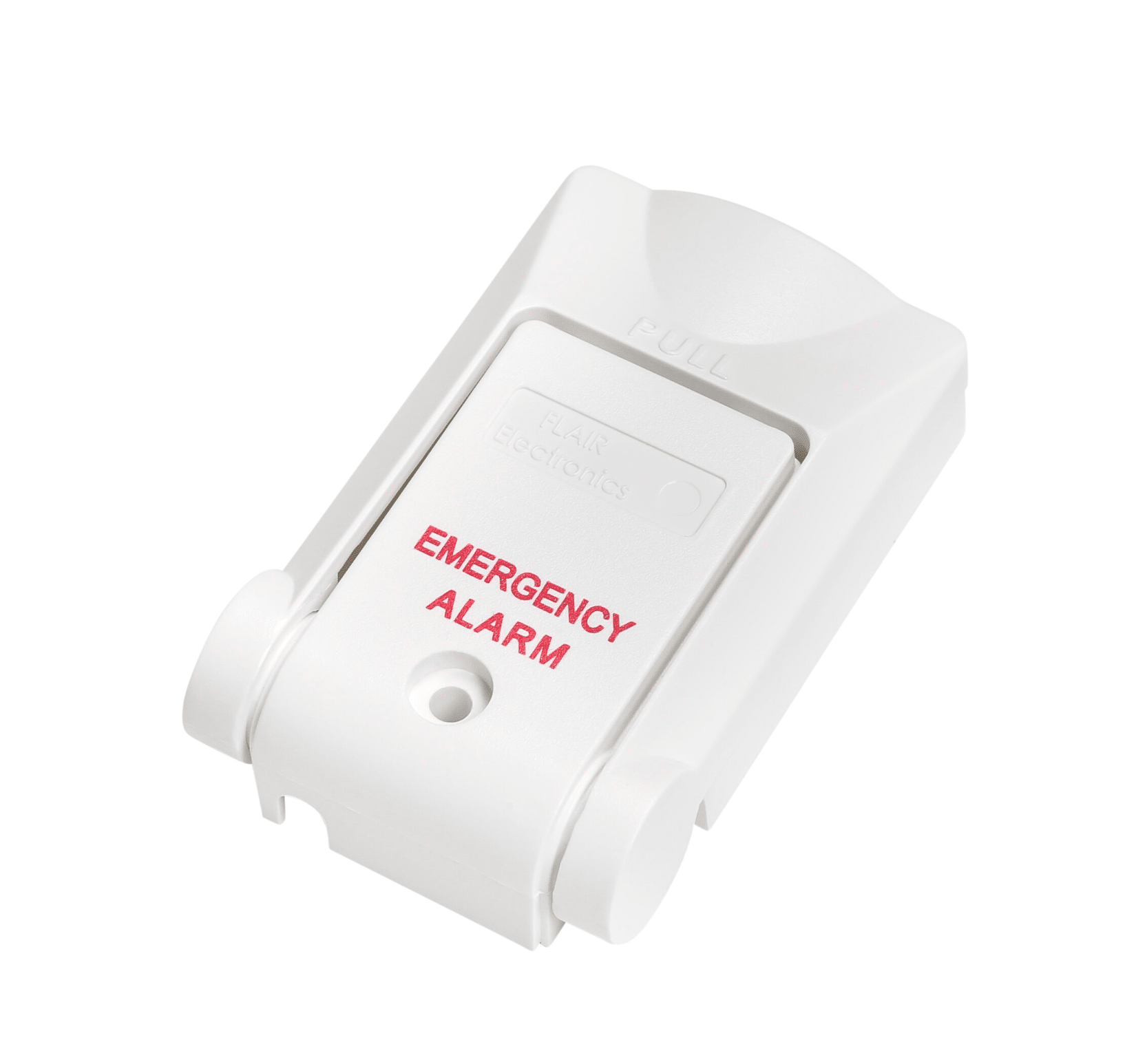

Flair Surface Mount Panic Switch, Normally Closed Overview
The Flair Model FLR-3045 is a duplicate of the Sentrol/Interlogix 3045 Panic Switch. This Model comes with a non-latching closed loop or SPDT, no LED, and 18” #22AWG wires. Other Flair Models of this Panic Switch matching the Sentrol / Interlogix models with LED will be soon to follow.

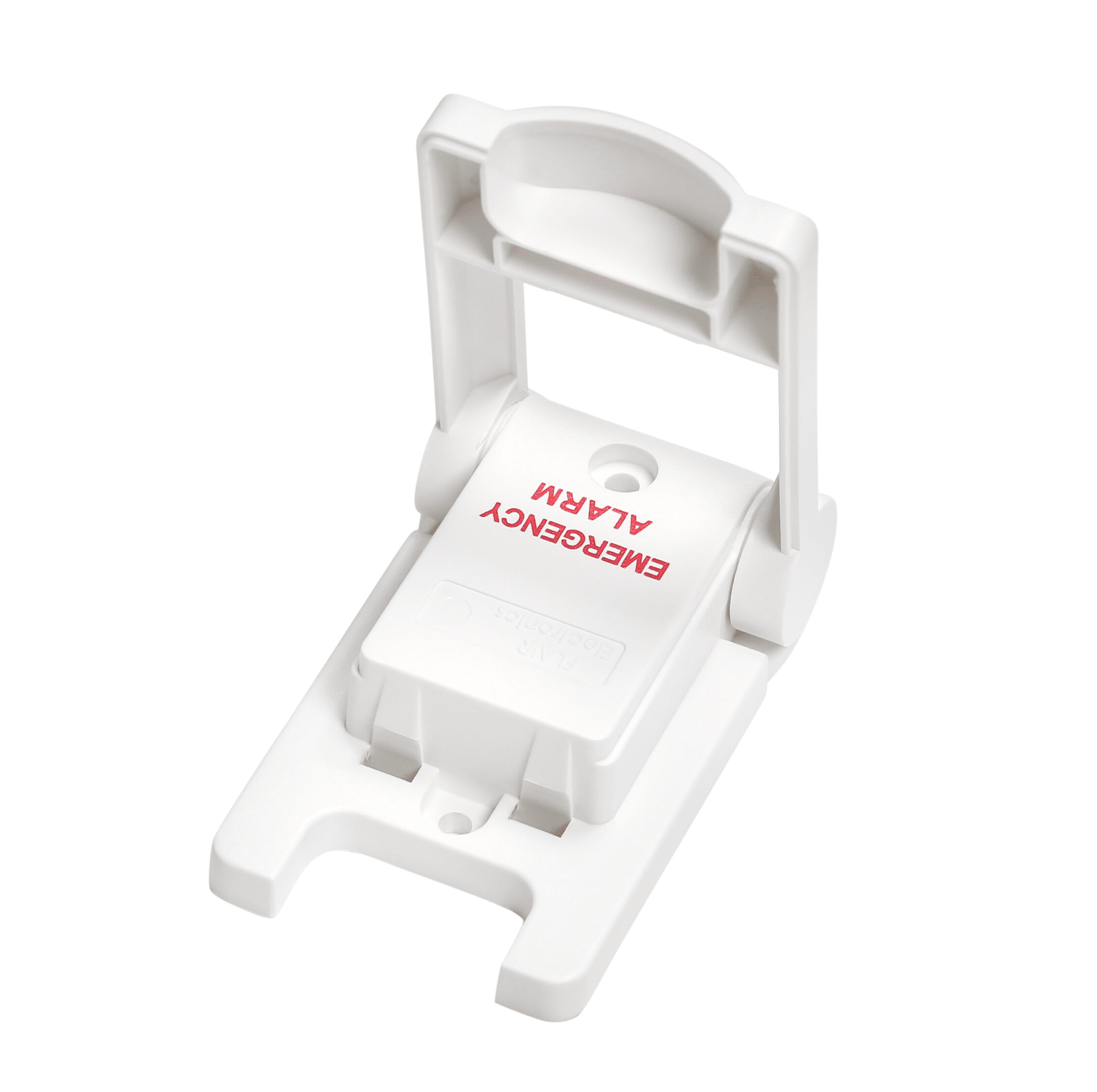

With the same hole pattern, the FLR-3045 can be mounted out of sight but within easy reach for activation, such as under desks or counters, in facilities where people and property are at risk. The hinged part of the panic switch opens with a click to let the user know it has been activated. Manufactured with high-strength fire-retardant ABS plastic and hermetically sealed multi-million cycle reeds you can be assured these panic switches will be reliable for many years to come.
Flair Surface Mount Panic Switch Features
- 3” Long Surface Mount Panic Switch
- 18” #22 AWG Leads
- Potted Switch and Magnet for Maximum Resistance to Corrosion
- Screw Mount
- White ABS Fire Retardant Case
- Lifetime Warranty
- Internal Magnetic Switch Safety Approvals
Flair Surface Mount Panic Switch Specifications
- Part Number: FLR-3045 and FLR-3045-SPDT
- Color: White ABS Fire Retardant Plastic
- Electrical Rating: FLR-3045: Maximum 100 VDC, 50 ma., 10 W; FLR-3045-SPDT: Maximum 30 VDC, 20 ma., 3 W
- Lead Length: 18” Side #22 AWG Leads
- Loop Type (when Switch Closed): FLR-3045: Closed, FLR-3045-SPDT: Single Pole Double Throw
- Size: 1 3/4? Wide x 3? Long x 3/4? Tall
Technical Specifications
Flair Surface Mount Panic Switch, Normally Closed Overview
The Flair Model FLR-3045 is a duplicate of the Sentrol/Interlogix 3045 Panic Switch. This Model comes with a non-latching closed loop or SPDT, no LED, and 18” #22AWG wires. Other Flair Models of this Panic Switch matching the Sentrol / Interlogix models with LED will be soon to follow.
With the same hole pattern, the FLR-3045 can be mounted out of sight but within easy reach for activation, such as under desks or counters, in facilities where people and property are at risk. The hinged part of the panic switch opens with a click to let the user know it has been activated. Manufactured with high-strength fire-retardant ABS plastic and hermetically sealed multi-million cycle reeds you can be assured these panic switches will be reliable for many years to come.
Flair Surface Mount Panic Switch Features
- 3” Long Surface Mount Panic Switch
- 18” #22 AWG Leads
- Potted Switch and Magnet for Maximum Resistance to Corrosion
- Screw Mount
- White ABS Fire Retardant Case
- Lifetime Warranty
- Internal Magnetic Switch Safety Approvals
Flair Surface Mount Panic Switch Specifications
- Part Number: FLR-3045 and FLR-3045-SPDT
- Color: White ABS Fire Retardant Plastic
- Electrical Rating: FLR-3045: Maximum 100 VDC, 50 ma., 10 W; FLR-3045-SPDT: Maximum 30 VDC, 20 ma., 3 W
- Lead Length: 18” Side #22 AWG Leads
- Loop Type (when Switch Closed): FLR-3045: Closed, FLR-3045-SPDT: Single Pole Double Throw
- Size: 1 3/4? Wide x 3? Long x 3/4? Tall
