About the product

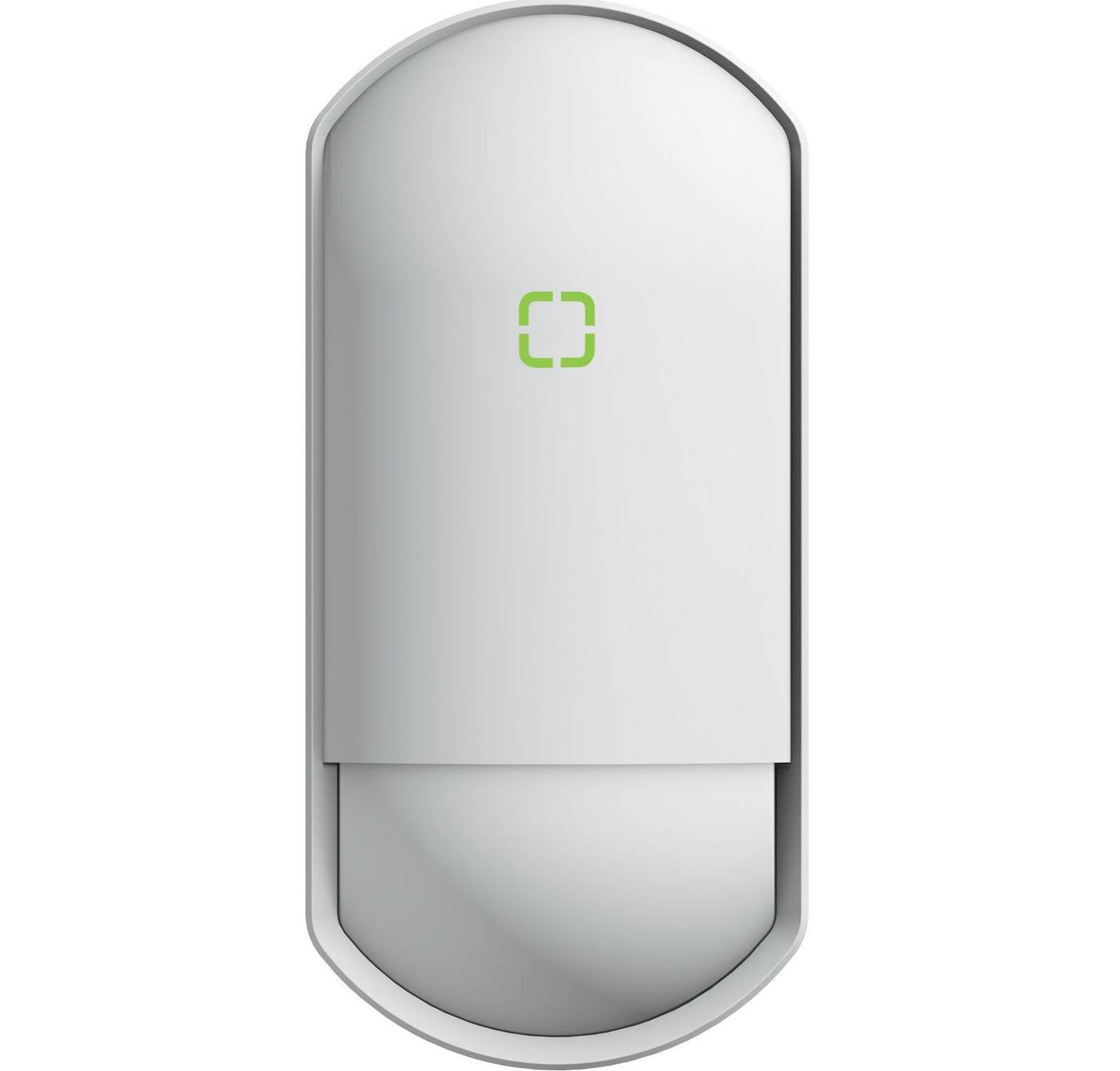

The Optex FlipX Indoor Wired PIR Motion Sensor is a unique, rotatable pyroelectric lens-- swapping between a wide-angle 85° detection pattern for open spaces, and a narrow 5° detection pattern for narrow spaces like hallways, entrances, doors and windows; all without having to meticulously unmount the sensor or furnish supplemental hardware. Perfect for any variety of indoor installation, from residential applications to high-end commercial alarm systems.
Custom-built PIR elements inside the sensor have been designed to detect human body patterns and shapes and has built-in pet immunity for small animals and pets, as well as additional higher sensitivity levels that can trigger on even small changes in background temperatures. Bright built-in LED gives a quick, at-a-glance operational information.
FLX-S-ST Specs and Features

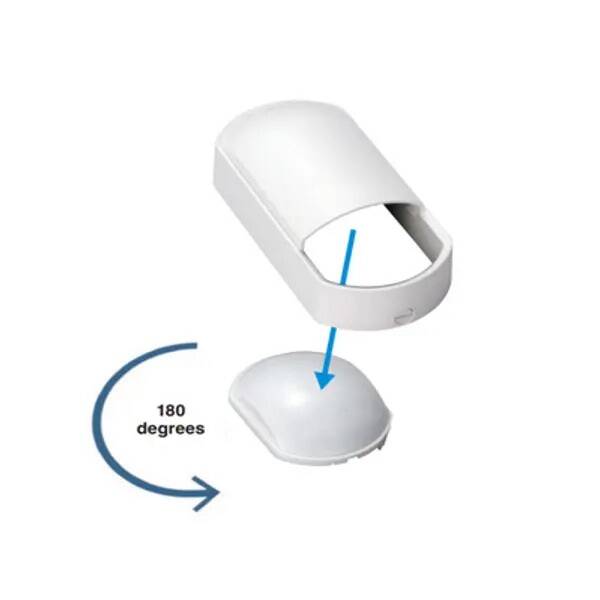

- 180° selectable flipping, wired PIR motion sensor
- Two detection modes, Wide (85° wide, 12m distance) and Narrow (5°, 18m distance)
- Pet immunity on low sensitivity settings
- Mounting height: 2.0 to 3.0 m (6'7"" to 9’8”)
- Alarm Period: 2.0 ± 0.5 s
- Warm-up Period: Approx. 60 s (LED blinks)
- LED Indicator: Green: [1] Warm-up [2] Alarm
- Power Input: 9.5 to 16 V DC
- Current Draw: 12 mA max. at 12 V DC
- Relay Output Alarm: N.C. 24 V DC 0.1 A max
- Relay Output Tamper: N.C. 24 V DC 0.1 A max. (Open when the cover is removed)
- Operational Temperature: 20°C to +50°C(-4°F to +122°F)
- Temperature Compensation: Digital
- Relative Humidity: 95% RH max.
- Dimensions (H x W x D): 130 mm x 62 mm x 56 mm
- Weight: 120 g (4.20 oz)
Technical Specifications
The Optex FlipX Indoor Wired PIR Motion Sensor is a unique, rotatable pyroelectric lens-- swapping between a wide-angle 85° detection pattern for open spaces, and a narrow 5° detection pattern for narrow spaces like hallways, entrances, doors and windows; all without having to meticulously unmount the sensor or furnish supplemental hardware. Perfect for any variety of indoor installation, from residential applications to high-end commercial alarm systems.
Custom-built PIR elements inside the sensor have been designed to detect human body patterns and shapes and has built-in pet immunity for small animals and pets, as well as additional higher sensitivity levels that can trigger on even small changes in background temperatures. Bright built-in LED gives a quick, at-a-glance operational information.
FLX-S-ST Specs and Features
- 180° selectable flipping, wired PIR motion sensor
- Two detection modes, Wide (85° wide, 12m distance) and Narrow (5°, 18m distance)
- Pet immunity on low sensitivity settings
- Mounting height: 2.0 to 3.0 m (6'7"" to 9’8”)
- Alarm Period: 2.0 ± 0.5 s
- Warm-up Period: Approx. 60 s (LED blinks)
- LED Indicator: Green: [1] Warm-up [2] Alarm
- Power Input: 9.5 to 16 V DC
- Current Draw: 12 mA max. at 12 V DC
- Relay Output Alarm: N.C. 24 V DC 0.1 A max
- Relay Output Tamper: N.C. 24 V DC 0.1 A max. (Open when the cover is removed)
- Operational Temperature: 20°C to +50°C(-4°F to +122°F)
- Temperature Compensation: Digital
- Relative Humidity: 95% RH max.
- Dimensions (H x W x D): 130 mm x 62 mm x 56 mm
- Weight: 120 g (4.20 oz)
