About the product

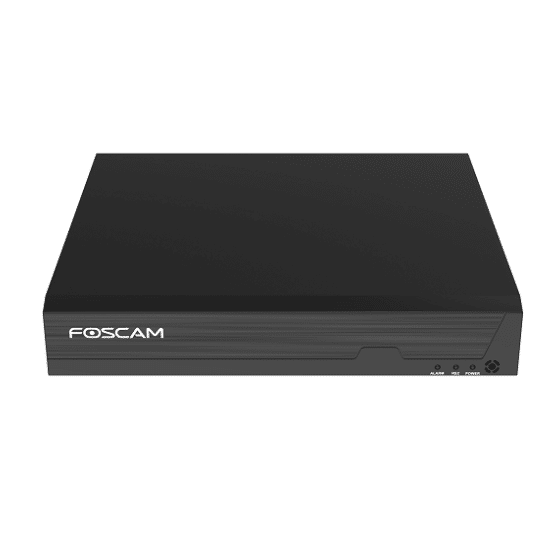

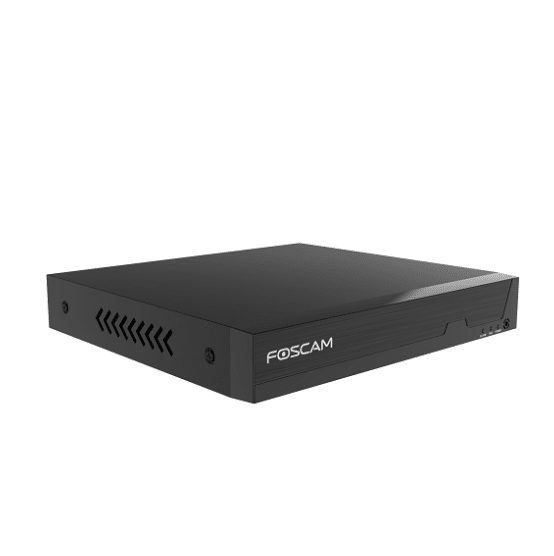

The FN9108HE 8-channel 5MP PoE NVR is a high-quality network video recorder that provides robust surveillance capabilities. With support for up to 8 channels, it allows you to connect multiple cameras for comprehensive monitoring. The PoE (Power over Ethernet) feature simplifies installation by enabling both power and data transmission through a single cable.
Foscam FN9108HE, 8-channel 5MP PoE NVR Features:
- Supports 8-channel 5 MP; Foscam VMS and FN9108HE NVR will cooperate to get a better experience
- More efficient streaming supports video stream compression H.265 Codec which has the advantages of storage and bandwidth savings. Greater efficiency, high-quality video preview, and recording at low-bit rate
- Never miss a moment. Supports up to 16TB hard disk (not included), for 24/7 continuous recording. Scheduled or motion-triggered recording allows you to record even longer
- Cameras and NVR connect automatically
- Motion detection
- Power over Ethernet
- Easy installation
Foscam FN9108HE, 8-channel 5MP PoE NVR Specifications:
- NVR Model: FN9108HE
- Video input:
- IP video input: 8-channel QHD IP camera input
- Video output:
- HDMI Output: 1x HDMI
- VGA Output: 1x VGA
- Display resolution: 3840x2160, 2560x1440, 1920x1080, 1440x900, 1280x1024, 1280x800, 1280x720, 1024x768
- Recording:
- Recording resolution: Up to 5MP per channel (8-ch@5MP)
- Record mode: Time scheduled / Motion detection
- Compression format: H.264/H.265
- Playback:
- Synchronous playback: 1 channel 5MP or 4 channel 1080P synchronous video playback
- Playback mode: Pause / Stop / Slow / Fast / Frame play
- Network:
- Ethernet: One 10/100 Mbps RJ45 port
- PoE Standard: IEEE 802.3at/af
- Network protocol: IP, TCP, UDP, SMTP, DHCP, RTSP
- HDD:
- Capacity: Up to 16TB
- External interface:
- Network interface: 1x 10/100 Mbps RJ45 port
- USB interface: 2x USB2.0 interface for mouse & external storage
- Button: 1x Power on/off button, 1x Reset button
- System requirements:
- Operating System: Windows (Foscam VMS), Mac OS (Foscam VMS), Android (Foscam app), iOS (Foscam app)
- Smartphone: iOS, Android, 3G/4G/5G smartphones
- Language: 17 languages
- Physical & Environmental:
- Power supply: DC 48V/2A
- Dimension: 255x213x50 mm
- Weight: 845g
- Operating temperature: 0°C ~ 55°C
- Operating humidity: 20% ~ 85% (non-condensing)
- Storage temperature: -20°C ~ 60°C
- Storage humidity: 0% ~ 90% (non-condensing)
Technical Specifications
The FN9108HE 8-channel 5MP PoE NVR is a high-quality network video recorder that provides robust surveillance capabilities. With support for up to 8 channels, it allows you to connect multiple cameras for comprehensive monitoring. The PoE (Power over Ethernet) feature simplifies installation by enabling both power and data transmission through a single cable.
Foscam FN9108HE, 8-channel 5MP PoE NVR Features:
- Supports 8-channel 5 MP; Foscam VMS and FN9108HE NVR will cooperate to get a better experience
- More efficient streaming supports video stream compression H.265 Codec which has the advantages of storage and bandwidth savings. Greater efficiency, high-quality video preview, and recording at low-bit rate
- Never miss a moment. Supports up to 16TB hard disk (not included), for 24/7 continuous recording. Scheduled or motion-triggered recording allows you to record even longer
- Cameras and NVR connect automatically
- Motion detection
- Power over Ethernet
- Easy installation
Foscam FN9108HE, 8-channel 5MP PoE NVR Specifications:
- NVR Model: FN9108HE
- Video input:
- IP video input: 8-channel QHD IP camera input
- Video output:
- HDMI Output: 1x HDMI
- VGA Output: 1x VGA
- Display resolution: 3840x2160, 2560x1440, 1920x1080, 1440x900, 1280x1024, 1280x800, 1280x720, 1024x768
- Recording:
- Recording resolution: Up to 5MP per channel (8-ch@5MP)
- Record mode: Time scheduled / Motion detection
- Compression format: H.264/H.265
- Playback:
- Synchronous playback: 1 channel 5MP or 4 channel 1080P synchronous video playback
- Playback mode: Pause / Stop / Slow / Fast / Frame play
- Network:
- Ethernet: One 10/100 Mbps RJ45 port
- PoE Standard: IEEE 802.3at/af
- Network protocol: IP, TCP, UDP, SMTP, DHCP, RTSP
- HDD:
- Capacity: Up to 16TB
- External interface:
- Network interface: 1x 10/100 Mbps RJ45 port
- USB interface: 2x USB2.0 interface for mouse & external storage
- Button: 1x Power on/off button, 1x Reset button
- System requirements:
- Operating System: Windows (Foscam VMS), Mac OS (Foscam VMS), Android (Foscam app), iOS (Foscam app)
- Smartphone: iOS, Android, 3G/4G/5G smartphones
- Language: 17 languages
- Physical & Environmental:
- Power supply: DC 48V/2A
- Dimension: 255x213x50 mm
- Weight: 845g
- Operating temperature: 0°C ~ 55°C
- Operating humidity: 20% ~ 85% (non-condensing)
- Storage temperature: -20°C ~ 60°C
- Storage humidity: 0% ~ 90% (non-condensing)
