About the product

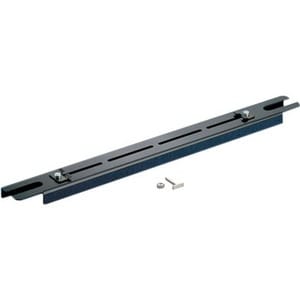

Used to support the 12x4 system by spanning two threaded rod drops that are 18" apart. Can be installed from above or below. Bracket is secured to each threaded rod with two nuts. The pre-assembled slide clamps enable fast assembly to channel. Use 7/16" nut driver on slide clamps.
Technical Specifications
| Product Information | |
| Device Supported | Cable Manager |
| Miscellaneous | |
| Additional Information | For Threaded Rod Size 12mm |
| Compatibility | Panduit 12" x 4" FiberRunner Cable Manager |
| Country of Origin | United States |
| Assembly Required | Yes |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Physical Characteristics | |
| Weight (Approximate) | 2.71 lb (1230 g) |
| Length | 21.52" (546.60 mm) |
| Width | 2.26" (57.30 mm) |
| Product Color | Black |
| Color Family | Black |
| Product Material | Steel |
| General Information | |
| Product Type | Mounting Bracket |
| Manufacturer Part Number | FR12TB12M |
| Manufacturer Website Address | http://www.panduit.com |
| Packaged Quantity | 1 |
| Manufacturer | PANDUIT CORP |
| Product Model | FR12TB12M |
| Product Name | Trapeze QuikLock Bracket for 12x4 System |
| Product Line | QuikLock |
| Brand Name | Panduit |
