About the product

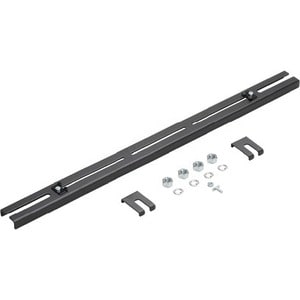

Used to support the 12x4 system by spanning two threaded rod drops that are 24in apart. Ideal for supporting trapeze bracket from 24in wide ladder rack or 24in wide cable tray. Can be installed from above or below. Bracket is secured to each threaded rod with two nuts. The pre-assembled slide clamps enable fast assembly to channel. Use 7/16in nut driver on slide clamps, For 1/2in threaded rod.
Technical Specifications
| Product Information | |
| Cable Manager Type | Bracket |
| Miscellaneous | |
| Compatibility | Panduit 12" x 4" FiberRunner Brackets |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Physical Characteristics | |
| Length | 32" (812.80 mm) |
| Height | 0.9" (21.84 mm) |
| Width | 2.2" (55.63 mm) |
| Product Color | Black |
| Color Family | Black |
| Product Material | Steel |
| General Information | |
| Product Type | Cable Routing |
| Manufacturer Part Number | FR12TB2412 |
| Manufacturer Website Address | http://www.panduit.com |
| Packaged Quantity | 1 Pack |
| Manufacturer | PANDUIT CORP |
| Product Model | FR12TB2412 |
| Product Name | Trapeze QuikLock Bracket for 12x4 System |
| Product Line | QuikLock |
| Brand Name | Panduit |
