About the product

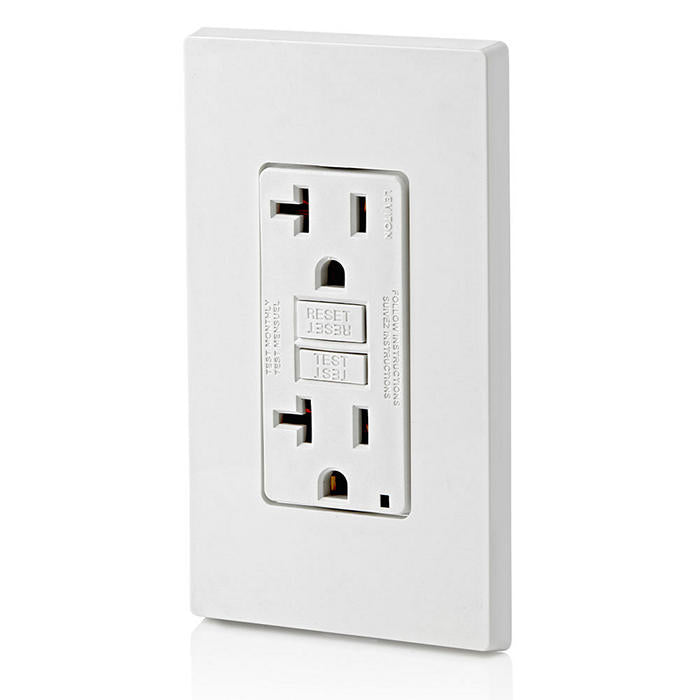

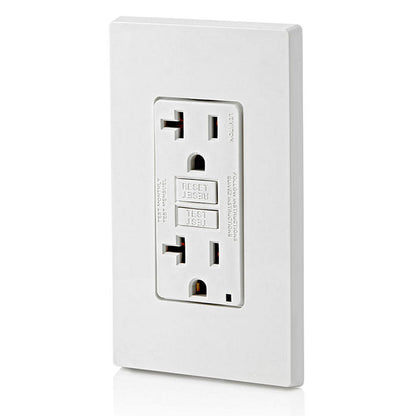

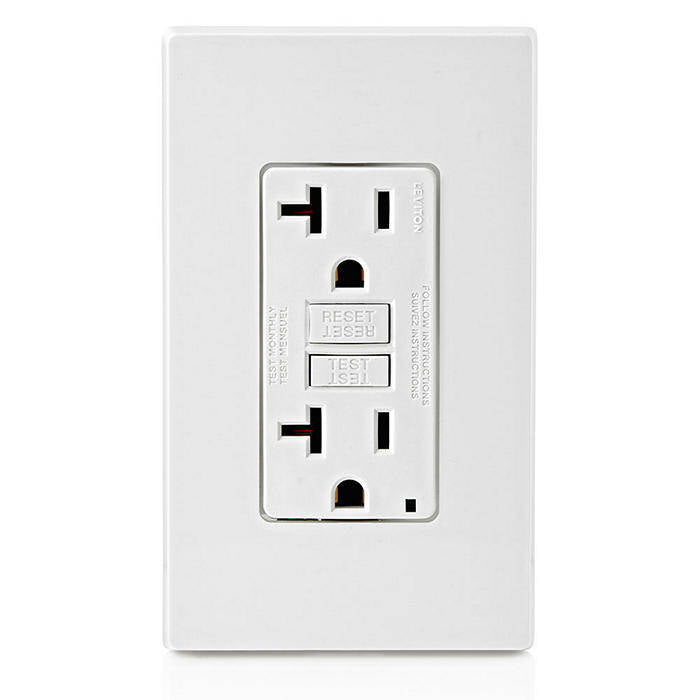

20 Amp, 125 Volt Receptacle/Outlet, 20 Amp Feed-Through, Self-test SmartlockPro Slim GFCI, monochromatic, Residential/Commercial applications, back and side wired, heavy-duty, wallplate/faceplate and self-grounding clip included.
20 Amp SmartlockPro® GFCI Receptacle/Outlet Features:
- SAFE - Delivers continuous ground fault protection
- SELF-TESTING - Automatically self-tests to ensure it can respond to ground fault
- SIMPLE - The status indicator light provides simple, intuitive feedback
20 Amp SmartlockPro® GFCI Receptacle/Outlet Specifications:
- Mechanical Specifications
- Amperage: 20 A
- Body Material: Polycarbonate
- Brand: SmartlockPro
- Colour: White
- Face Material: Thermoplastic
- Feature: Self-Test
- Fed Spec WC-596 : Yes
- Grade: Residential/Commercial Specification Grade
- Grounding: Self-Grounding
- NEMA: 5-20R
- Notes: w/ Wallplate
- Pole: 2
- Product ID: Ratings are permanently marked on the device
- Standards and Certifications: UL/CSA, NEMA WD6, NEMA WD1
- Strap Material: Galvanized Steel
- Tamper Resistant : No
- Terminal Accom. : 14-10 AWG
- Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
- Termination: Back & Side
- Torque Range: 14 – 18 in.-lbs
- Trip Level: Class A, 5mA plus or minus 1mA
- Type: Standard Duplex
- Voltage: 125 VAC
- Warranty: 2-Year Limited
- Wire : 3
- Electrical Specifications
- Dielectric Voltage: Withstands 1250VAC per UL 943 and CSA-C22.2 No. 144.1-06
- Operating Temperature : -35C to +66C
- Short Circuit Current Rating: 10KA
- Temperature Rise: Max 30C after 100 cycles OL at 150 per cent rated current
- AC Horsepower Ratings
- At Rated Voltage: 1 HP
- Dielectric Voltage: Withstands 1250VAC per UL 943 and CSA-C22.2 No. 144.1-06
- Short Circuit Current Rating: 10KA
- Temperature Rise: Max 30C after 100 cycles OL at 150 per cent rated current
- Material Specifications
- Body Material: Polycarbonate
- Clamps: Brass
- Face Material: Thermoplastic
- Grounding Screw: Plated Steel
- Line Contacts: Brass Triple-Wipe .031 Thick
- Notes: w/ Wallplate
- Product ID: Ratings are permanently marked on the device
- Terminal Accom. : 14-10 AWG
- Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
- Terminal Screws: Plated Steel
- Yoke: Zinc-plated Steel
- Standards and Certifications
- ANSI: C-73
- CSA C22.2 No. 42 : Yes
- CSA-C22.2 No. 144.1-06: File LR-57811
- Fed Spec WC-596 : Yes
- MIL-SPEC: A-A-55459-SB
- NOM: Yes
- UL 943: File E48380
- UL498 : Yes
- Product Features
- Amperage: 20 A
- At Rated Voltage: 1 HP
- Brand: SmartlockPro
- Colour: White
- Feature: Self-Test
- Fed Spec WC-596 : Yes
- Grade: Residential/Commercial Specification Grade
- Grounding: Self-Grounding
- NEMA: 5-20R
- Pole: 2
- Standards and Certifications: UL/CSA, NEMA WD6, NEMA WD1
- Strap Material: Galvanized Steel
- Tamper Resistant : No
- Termination: Back & Side
- Trip Level: Class A, 5mA plus or minus 1mA
- Type: Standard Duplex
- Voltage: 125 VAC
- Wallplate: Included
- Warranty: 2-Year Limited
- Wire : 3
- Environmental Specifications
- Body Material: Polycarbonate
- Clamps: Brass
- Face Material: Thermoplastic
- Grounding Screw: Plated Steel
- Line Contacts: Brass Triple-Wipe .031 Thick
- Notes: w/ Wallplate
- Operating Temperature : -35C to +66C
- Terminal Screws: Plated Steel
- Yoke: Zinc-plated Steel
Technical Specifications
20 Amp, 125 Volt Receptacle/Outlet, 20 Amp Feed-Through, Self-test SmartlockPro Slim GFCI, monochromatic, Residential/Commercial applications, back and side wired, heavy-duty, wallplate/faceplate and self-grounding clip included.
20 Amp SmartlockPro® GFCI Receptacle/Outlet Features:
- SAFE - Delivers continuous ground fault protection
- SELF-TESTING - Automatically self-tests to ensure it can respond to ground fault
- SIMPLE - The status indicator light provides simple, intuitive feedback
20 Amp SmartlockPro® GFCI Receptacle/Outlet Specifications:
- Mechanical Specifications
- Amperage: 20 A
- Body Material: Polycarbonate
- Brand: SmartlockPro
- Colour: White
- Face Material: Thermoplastic
- Feature: Self-Test
- Fed Spec WC-596 : Yes
- Grade: Residential/Commercial Specification Grade
- Grounding: Self-Grounding
- NEMA: 5-20R
- Notes: w/ Wallplate
- Pole: 2
- Product ID: Ratings are permanently marked on the device
- Standards and Certifications: UL/CSA, NEMA WD6, NEMA WD1
- Strap Material: Galvanized Steel
- Tamper Resistant : No
- Terminal Accom. : 14-10 AWG
- Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
- Termination: Back & Side
- Torque Range: 14 – 18 in.-lbs
- Trip Level: Class A, 5mA plus or minus 1mA
- Type: Standard Duplex
- Voltage: 125 VAC
- Warranty: 2-Year Limited
- Wire : 3
- Electrical Specifications
- Dielectric Voltage: Withstands 1250VAC per UL 943 and CSA-C22.2 No. 144.1-06
- Operating Temperature : -35C to +66C
- Short Circuit Current Rating: 10KA
- Temperature Rise: Max 30C after 100 cycles OL at 150 per cent rated current
- AC Horsepower Ratings
- At Rated Voltage: 1 HP
- Dielectric Voltage: Withstands 1250VAC per UL 943 and CSA-C22.2 No. 144.1-06
- Short Circuit Current Rating: 10KA
- Temperature Rise: Max 30C after 100 cycles OL at 150 per cent rated current
- Material Specifications
- Body Material: Polycarbonate
- Clamps: Brass
- Face Material: Thermoplastic
- Grounding Screw: Plated Steel
- Line Contacts: Brass Triple-Wipe .031 Thick
- Notes: w/ Wallplate
- Product ID: Ratings are permanently marked on the device
- Terminal Accom. : 14-10 AWG
- Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
- Terminal Screws: Plated Steel
- Yoke: Zinc-plated Steel
- Standards and Certifications
- ANSI: C-73
- CSA C22.2 No. 42 : Yes
- CSA-C22.2 No. 144.1-06: File LR-57811
- Fed Spec WC-596 : Yes
- MIL-SPEC: A-A-55459-SB
- NOM: Yes
- UL 943: File E48380
- UL498 : Yes
- Product Features
- Amperage: 20 A
- At Rated Voltage: 1 HP
- Brand: SmartlockPro
- Colour: White
- Feature: Self-Test
- Fed Spec WC-596 : Yes
- Grade: Residential/Commercial Specification Grade
- Grounding: Self-Grounding
- NEMA: 5-20R
- Pole: 2
- Standards and Certifications: UL/CSA, NEMA WD6, NEMA WD1
- Strap Material: Galvanized Steel
- Tamper Resistant : No
- Termination: Back & Side
- Trip Level: Class A, 5mA plus or minus 1mA
- Type: Standard Duplex
- Voltage: 125 VAC
- Wallplate: Included
- Warranty: 2-Year Limited
- Wire : 3
- Environmental Specifications
- Body Material: Polycarbonate
- Clamps: Brass
- Face Material: Thermoplastic
- Grounding Screw: Plated Steel
- Line Contacts: Brass Triple-Wipe .031 Thick
- Notes: w/ Wallplate
- Operating Temperature : -35C to +66C
- Terminal Screws: Plated Steel
- Yoke: Zinc-plated Steel
