About the product

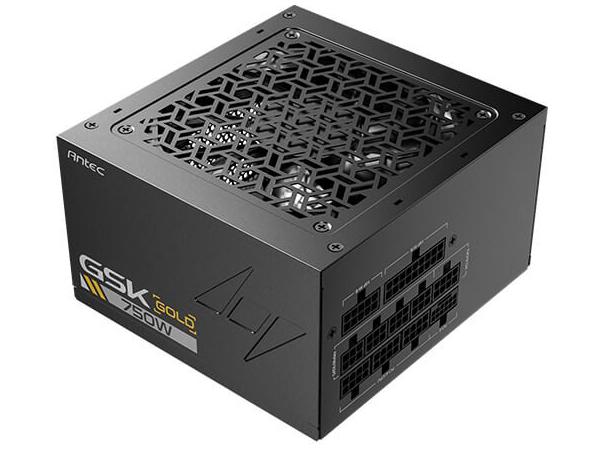

The Antec GSK750 ATX3.1 power supply delivers 750 watts of power, ensuring reliable performance for various systems. With support for multiple voltage requirements and a comprehensive range of safety features, this power supply is engineered for efficiency and protection. The fully modular design allows for easy installation and cable management, reducing clutter and enhancing airflow inside the case. Equipped with an 80 PLUS Gold certification, this power supply provides high energy efficiency, reducing heat output and electricity consumption. Cooling is managed by a 120 mm fan, which operates in Zero RPM mode under low loads, optimizing quiet performance. Rely on the Antec GSK750 ATX3.1 for a safe, compliant, and powerful solution for your PC build.
Technical Specifications
| Primary Information | |
| Product Description: | Antec GSK750 ATX3.1 - power supply - 750 Watt |
| Device Type: | Power supply - active Power Factor Correction (PFC) - internal |
| Specification Compliance: | ATX12V 3.1 |
| 80 PLUS Certification: | 80 PLUS Gold |
| Weight: | 5.56 lbs |
| Localization: | United States |
| Input Voltage: | AC 100-240 V |
| Output Voltage: | +3.3, +5, ±12 V |
| Power Capacity: | 750 Watt |
| Output Current: | +3.3V - 20 A ¦ +5V - 20 A ¦ +12V - 62.5 A ¦ -12V - 0.3 A ¦ +5VSB - 3 A |
| Output connectors: | 1 x power 24 pin ATX with detachable 4 pin section ¦ 1 x 16 (12+4) pin PCI Express 5.1 12VHPWR ¦ 2 x power 8 pin with detachable 4 pin section ¦ 4 x 8 pin PCI Express power with detachable 2 pin section ¦ 8 x 15 pin Serial ATA power ¦ 4 x Molex |
| Modular Cable Management: | Yes |
| Cooling System: | 120 mm fan |
| Dimensions (WxDxH): | 5.9 in x 5.5 in x 3.4 in |
| Manufacturer Warranty: | 7-year warranty |
| General | |
| Device Type: | Power supply - active Power Factor Correction (PFC) - internal |
| Specification Compliance: | ATX12V 3.1 |
| PSU Form Factor: | ATX |
| Localization: | United States |
| Power Device | |
| Input Voltage: | AC 100-240 V |
| Frequency Required: | 50 - 60 Hz |
| Power Output Connectors Details: | 1 x power 24 pin ATX with detachable 4 pin section ¦ 1 x 16 (12+4) pin PCI Express 5.1 12VHPWR ¦ 2 x power 8 pin with detachable 4 pin section ¦ 4 x 8 pin PCI Express power with detachable 2 pin section ¦ 8 x 15 pin Serial ATA power ¦ 4 x Molex |
| Output Voltage: | +3.3, +5, ±12 V |
| Power Capacity: | 750 Watt |
| Output Current: | +3.3V - 20 A ¦ +5V - 20 A ¦ +12V - 62.5 A ¦ -12V - 0.3 A ¦ +5VSB - 3 A |
| Modular Cable Management: | Yes |
| 80 PLUS Certification: | 80 PLUS Gold |
| Miscellaneous | |
| Cooling System: | 120 mm fan |
| Features: | Fully modular, CircuitShield, PhaseWave design, Zero RPM fan mode, undervoltage protection, short-circuit protection, overpower protection |
| Compliant Standards: | cTUVus, TUV, CB, RCM, FCC, BSMI, KC, UKCA, ICES, PCIe 5.1 |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - 7 years |
| Environmental Parameters | |
| Min Operating Temperature: | 32 °F |
| Max Operating Temperature: | 104 °F |
| Dimensions & Weight | |
| Width: | 5.9 in |
| Depth: | 5.5 in |
| Height: | 3.4 in |
| Weight: | 5.56 lbs |
