About the product

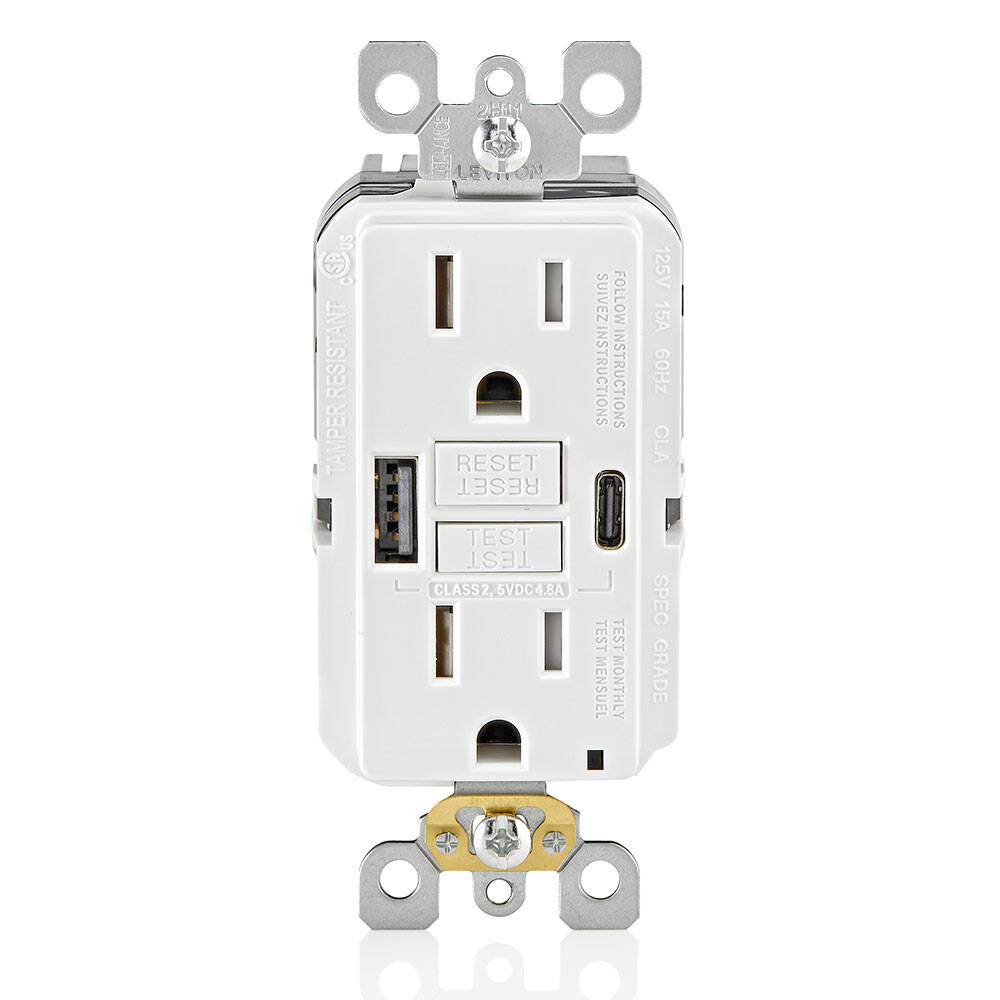

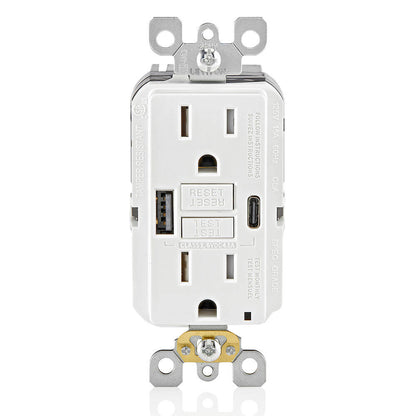

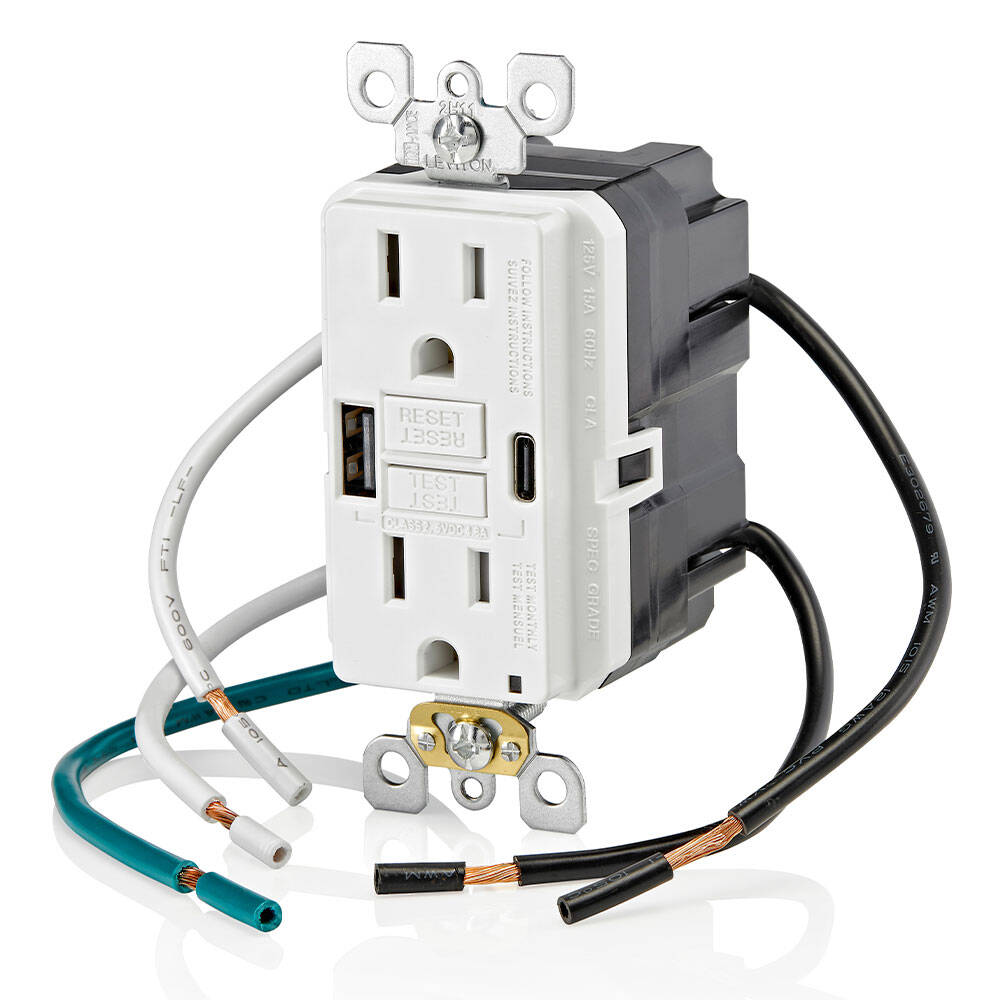

The 15A SmartlockPro® Self-Test GFCI Combination 24W (4.8A) Type A/C USB In-Wall Charger Outlet in white is a versatile and convenient addition to any space. It features a 15 Amp, 125 Volt receptacle/outlet with a 20 Amp feed-through for added power. The tamper-resistant design ensures safety, while the self-test feature provides continuous monitoring for optimal performance. With its Type A/C USB chargers offering a total output of 24W (4.8 Amps), you can easily charge multiple devices simultaneously. The outlet comes complete with wire leads, screws, and a self-grounding clip for easy installation. Its sleek white finish adds a touch of elegance to any room.
Leviton GUAC1-W 15A SmartlockPro Self-Test GFCI Combination Features:
- SAFE – Delivers continuous ground fault protection, automatically self-tests to ensure it can respond to a ground fault
- FAST CHARGING – Smart chip technology provides over 2X the charging power of other GFCI USB outlets for a faster charge
- CODE REQUIRED – Fulfill NEC® requirements anywhere GFCI protection is needed
- SIMPLE – The status indicator light provides simple, intuitive feedback
- INSTALL – Requires extra deep wall box for installation
Leviton GUAC1-W 15A SmartlockPro Self-Test GFCI Combination Specifications:
Product Features
- Amperage: 15A
- At Rated Voltage: 1 HP
- Brand: SmartlockPro
- Color: White
- Feature: Self-Test
- Flammability: UL94, 5VA
- Grade: Residential/Commercial Specification Grade
- Grounding: Self-Grounding
- NEMA: 5-15R
- Pole: 2
- Product Type: GFCI/Outlet/USB Combo
- Tamper Resistant: Yes
- Termination: Wire leads (12AWG)
- Trip Level: Class A, 5mA ± 1mA
- Type: GFCI/USB A/C Combination
- Voltage: 125 VAC
- Wallplate: Not included
- Warranty: 2-Year Limited
- Wire: 5
- AC Horsepower Ratings:
- At Rated Voltage: 1 HP
- Dielectric Voltage: Withstands 1250VAC per UL 943 and CSA-C22.2 No. 144.1-06
- Temperature Rise: Max 30C after 100 cycles OL at 150 percent rated current
Electrical Specifications:
- Grounding: Self-Grounding
- Operating Temperature: -10°C to 40°C
- Ratings: 15A - 125V, 4.8A @ 5V
- Temperature Rise: Max 30C after 100 cycles OL at 150 percent rated current
- Voltage: 125 VAC
Environmental Specifications:
- Flammability: UL94, 5VA
- Grounding Wire: Green ground wire
- Operating Temperature: -10°C to 40°C
Material Specifications:
- Body Material: Thermoplastic
- Color: White
- Cover Material: Thermoplastic
- Face Material: Thermoplastic
- Grade: Residential/Commercial Specification Grade
- Line Contacts: Brass Double Wipe .031 Thick
- Notes: Wallplate not included
- Product ID: Ratings are permanently marked on device
- Strap Material: Galvanized Steel
- Terminal ID: Green lead - GND. Line and load both have: Black lead - Hot, White lead - Neutral
- Yoke: Zinc-Plated Steel
Mechanical Specifications:
- Pole: 2
- Tamper Resistant: Yes
- Trip Level: Class A, 5mA ± 1mA
- Type: GFCI/USB A/C Combination
- Voltage: 125 VAC
- Wire: 5
Standards & Certifications:
- ANSI: Yes
- CSA C22.2 No. 42: Yes
- CSA-C22.2 No. 144.1-06: Yes
- FCC Part 15: Class B
- Fed Spec WC-596: No
- Listed: cCSAus
- NOM: Yes
- UL 1310: Yes
- UL 498: Yes
Technical Specifications
The 15A SmartlockPro® Self-Test GFCI Combination 24W (4.8A) Type A/C USB In-Wall Charger Outlet in white is a versatile and convenient addition to any space. It features a 15 Amp, 125 Volt receptacle/outlet with a 20 Amp feed-through for added power. The tamper-resistant design ensures safety, while the self-test feature provides continuous monitoring for optimal performance. With its Type A/C USB chargers offering a total output of 24W (4.8 Amps), you can easily charge multiple devices simultaneously. The outlet comes complete with wire leads, screws, and a self-grounding clip for easy installation. Its sleek white finish adds a touch of elegance to any room.
Leviton GUAC1-W 15A SmartlockPro Self-Test GFCI Combination Features:
- SAFE – Delivers continuous ground fault protection, automatically self-tests to ensure it can respond to a ground fault
- FAST CHARGING – Smart chip technology provides over 2X the charging power of other GFCI USB outlets for a faster charge
- CODE REQUIRED – Fulfill NEC® requirements anywhere GFCI protection is needed
- SIMPLE – The status indicator light provides simple, intuitive feedback
- INSTALL – Requires extra deep wall box for installation
Leviton GUAC1-W 15A SmartlockPro Self-Test GFCI Combination Specifications:
Product Features
- Amperage: 15A
- At Rated Voltage: 1 HP
- Brand: SmartlockPro
- Color: White
- Feature: Self-Test
- Flammability: UL94, 5VA
- Grade: Residential/Commercial Specification Grade
- Grounding: Self-Grounding
- NEMA: 5-15R
- Pole: 2
- Product Type: GFCI/Outlet/USB Combo
- Tamper Resistant: Yes
- Termination: Wire leads (12AWG)
- Trip Level: Class A, 5mA ± 1mA
- Type: GFCI/USB A/C Combination
- Voltage: 125 VAC
- Wallplate: Not included
- Warranty: 2-Year Limited
- Wire: 5
- AC Horsepower Ratings:
- At Rated Voltage: 1 HP
- Dielectric Voltage: Withstands 1250VAC per UL 943 and CSA-C22.2 No. 144.1-06
- Temperature Rise: Max 30C after 100 cycles OL at 150 percent rated current
Electrical Specifications:
- Grounding: Self-Grounding
- Operating Temperature: -10°C to 40°C
- Ratings: 15A - 125V, 4.8A @ 5V
- Temperature Rise: Max 30C after 100 cycles OL at 150 percent rated current
- Voltage: 125 VAC
Environmental Specifications:
- Flammability: UL94, 5VA
- Grounding Wire: Green ground wire
- Operating Temperature: -10°C to 40°C
Material Specifications:
- Body Material: Thermoplastic
- Color: White
- Cover Material: Thermoplastic
- Face Material: Thermoplastic
- Grade: Residential/Commercial Specification Grade
- Line Contacts: Brass Double Wipe .031 Thick
- Notes: Wallplate not included
- Product ID: Ratings are permanently marked on device
- Strap Material: Galvanized Steel
- Terminal ID: Green lead - GND. Line and load both have: Black lead - Hot, White lead - Neutral
- Yoke: Zinc-Plated Steel
Mechanical Specifications:
- Pole: 2
- Tamper Resistant: Yes
- Trip Level: Class A, 5mA ± 1mA
- Type: GFCI/USB A/C Combination
- Voltage: 125 VAC
- Wire: 5
Standards & Certifications:
- ANSI: Yes
- CSA C22.2 No. 42: Yes
- CSA-C22.2 No. 144.1-06: Yes
- FCC Part 15: Class B
- Fed Spec WC-596: No
- Listed: cCSAus
- NOM: Yes
- UL 1310: Yes
- UL 498: Yes
