About the product

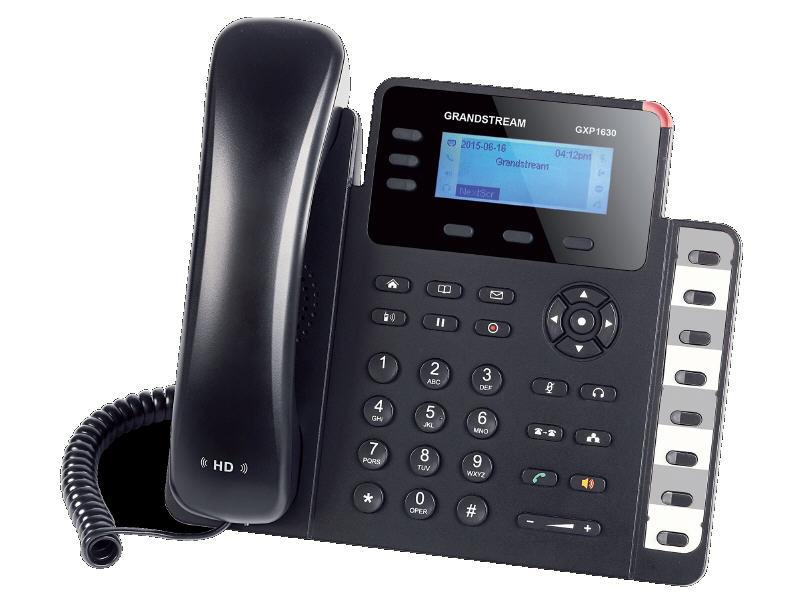

The GXP1630 is a powerful IP phone for small-to-medium businesses (SMBs). This Linux-based model includes 3 lines, 3 XML programmable soft keys, 8 BLF keys and 4-way conferencing. A 132x64 backlit LCD screen creates a clear display for easy viewing. Additional features such as dual switched gigabit network ports, HD audio, multi-language support, integrated PoE and call-waiting allow the GXP1630 to be a high quality, versatile and dependable office phone.
Specification
Protocols/Standards: SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP/RARP, ICMP, DNS (A record, SRV, NAPTR), DHCP, PPPoE, SSH, TFTP, NTP, STUN, SIMPLE, LLDP-MED, LDAP, TR-069, 802.1x, TLS, SRTP
Network Interfaces: Dual switched auto-sensing 10/100/1000 Mbps Ethernet ports, integrated PoE
Graphic Display :132 x 64 backlit graphical LCD display
Feature Keys:3 line keys with dual-color LED and 3 SIP accounts, 3 XML programmable context sensitive soft keys, 5 (navigation, menu) keys, 8 BLF keys, 13 dedicated function keys for MUTE, HEADSET, TRANSFER, CONFERENCE, SEND and REDIAL, SPEAKERPHONE, VOLUME, PHONEBOOK, MESSAGE, HOLD, PAGE/INTERCOM, RECORD, HOME
Voice Codecs: Support for G.711u/a, G.722 (wide-band), G.723(pending), G.726-32, G.729 A/B, inband and out-of-band DTMF (In audio, RFC2833, SIP INFO)
Telephony Features: Hold, transfer, forward (unconditional/no-answer/busy), call park/pickup, 4-way conference, shared-call-appearance (SCA) / bridged-line-appearance (BLA), downloadable phone book (XML, LDAP, up to 500 items), call waiting, call history (up to 200 records), off-hook auto dial, auto answer, click-to-dial, flexible dial plan, hot desking, personalized music ringtones, server redundancy & fail-over
Headset Jack: RJ9 headset jack (allowing EHS with Plantronics headsets)
HD Audio: Yes, HD handset and speakerphone with support for wideband audio
Base Stand: Yes, 2 angled positions available, wall mountable
Headset Jack: Yes
QoS: Layer 2 QoS (802.1Q, 802.1P) and Layer 3 QoS (ToS, DiffServ, MPLS)
Security: User and administrator level access control, MD5 and MD5-sess based authentication, 256-bit AES encrypted configuration file, TLS, SRTP, HTTPS, 802.1x media access control
Multi-language :English, German, Italian, French, Spanish, Portuguese, Russian, Croatian, simplified and traditional Chinese, Korean, Japanese and more
Upgrade/Provisioning :Firmware upgrade via TFTP / HTTP / HTTPS, mass provisioning using TR-069 or AES encrypted XML configuration file
Power and Green Energy Efficiency;Universal Power Supply Input 100-240VAC 50-60Hz; Output +5VDC, 600mA PoE:IEEE802.3 af Class 2, 3.84W-6.49W
Technical Specifications
| Primary Information | |
| Telephone Type: | IP Telephone |
| Key / Function Button: | 3 line keys with dual-color LED and 3 SIP accounts, 3 XML programmable contextsensitive soft keys, 5 (navigation, menu) keys, 8 BLF keys, 13 dedicated functionkeys for MUTE, HEADSET, TRANSFER, CONFERENCE, SEND and REDIAL, SPEAKERPHONE,VOLUME, PHONEBOOK, MESSAGE, HOLD, PAGE/INTERCOM, RECORD,HOME |
| Dimensions&Miscellaneous | |
| Width(Handset): | 192.5 Mm |
| Depth(Handset): | 220.5 Mm |
| Height(Handset): | 76.0 Mm |
| Special Feature | |
| COO: | Inquire |
| TAA compliance: | Inquire |
| UNSPSC Code | |
| UNSPSC Code: | 43191511 |
