Vertiv Liebert GXT5 UPS - 10kVA/10kW 230V | Online Rack Tower Energy S

Vertiv Liebert GXT5 UPS - 10kVA/10kW 230V | Online Rack Tower Energy S

Regular price $12,759.40 CAD
Regular price $17,477.00 CAD Sale price $12,759.40 CAD
-26% OFF Ask for quote
Vertiv Liebert GXT5 UPS - 10kVA/10kW 230V | Online Rack Tower Energy Star - Double Conversion | 5U | Built-in RDU101 Card| Color/Graphic LCD| 3-Year Warranty

VPN:GXT5-10KIRT5UXLN SKU:RSC283963 UPC:767041026696

  • It offers reliable, easy-to-manage power protection and battery backup with 10kVA (10kW) capacity.
  • UNITY Power Factor (1.0) for more usable power and more connected loads to save space and costs.
  • It includes a built-in Vertiv RDU101 network communications card for remote management.

Volume discount available - Ask for quote..

View full details

Recently Viewed

Vertiv Liebert GXT5 UPS - 10kVA/10kW 230V | Online Rack Tower Energy S

Product information summary

Vertiv Liebert GXT5 UPS - 10kVA/10kW 230V | Online Rack Tower Energy S

About the product

The Vertiv Liebert GXT5 uninterruptible power supply (UPS) protects critical equipment against outages and every type of power disturbance. This 10kVA/10kW online double conversion UPS offers continuous power conditioning in centralized and edge locations. With unity power factor (1.0), it allows more connected loads saving space and costs. This tower/rack mount UPS has a built-in Vertiv RDU101 communications card for remote monitoring to help you make more informed decisions and faster event resolution. With the free Vertiv Power Insight software, you can consolidate your view of up to 100 distributed UPS units providing simple notification of status and events in a single pane of glass. This 230V in/ 230 out single phase UPS has scalable runtime options with matching external battery cabinets to give extra runtime during an outage to support critical equipment. This battery backup is ENERGY STAR 2.0 certified and comes with an intuitive gravity sensing full-color LCD display. It comes with a 5-year warranty (3-year factory warranty plus 2-year extended warranty). This promotion is subject to the Dist This offer is not available in conjunction with any other offer/discount.ributor's product availability and is only available while product stocks last. Vertiv reserves the right to provide a 1-month notice to terminate the offer.

More from the Manufacturer

  • It offers reliable, easy-to-manage power protection and battery backup with 10kVA (10kW) capacity.
  • UNITY Power Factor (1.0) for more usable power and more connected loads to save space and costs.
  • It includes a built-in Vertiv RDU101 network communications card for remote management.
  • Vertiv 3-year warranty with optional 2-year extension for a total of 5 years in coverage.
  • It is ENERGY STAR 2.0 certified with higher efficiency, for energy savings and improved reliability.

Technical Specifications

Controls/Indicators
Status Indicators

LED/Full Color Graphic LCD

Environmental Conditions
Sound Emission55 dB
Maximum Operating Temperature104°F (40°C)
Maximum Operating Elevation9842.52 ft (3000000 mm)
Interfaces/Ports
Network (RJ-45)Yes
Modem (RJ-11)No
Serial PortYes
USB (HID Compliant) PortYes
Management
Bypass SwitchAutomatic & Manual
Internal
Emergency Power OFFYes
Network ManagementSNMP/Webcard
Battery Information
Battery ChemistryLead Acid
Battery Size12V
Battery Capacity9000 mAh
Number of Batteries16

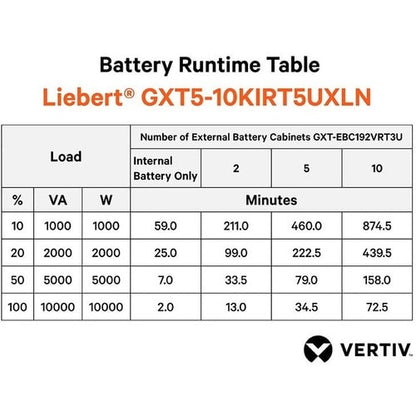

Backup/Run Time (Half Load)7 Minute
Backup/Run Time (Full Load)2 Minute
Battery CharacteristicsValve-regulated/Non-spillable
Replaceable BatteryYes
Miscellaneous
Package Contents
  • UPS
  • RDU101 SNMP/Webcard
  • 4 Post Fixed Rail Kit and Tower Stand
  • USB Cable
  • Quick Start Guide
  • Safety Instruction Manual
Certifications & Standards
  • IEC62040-1:2008 version
  • GS mark
  • IEC/EN/AS 62040-2 2nd Ed (Cat 2 - Table 6) ISTA 1E
Country of OriginChina
Environmentally FriendlyYes
TAA CompliantNo
Energy StarYes
Environmental ComplianceRegistration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Restriction of Hazardous Substances (RoHS)
Physical Characteristics
Weight (Approximate)164.24 lb (74500 g)
Form FactorRack/Tower
Rack Height5U
Height8.54" (217 mm)
Width16.93" (430 mm)
Depth24.80" (630 mm)
Product ColorBlack
Color FamilyBlack
General Information
Product TypeDouble Conversion Online UPS
Manufacturer Part NumberGXT510KIRT5UXLN
Manufacturer Website Addresshttp://www.vertiv.com/
Packaged Quantity1 Pack
ManufacturerVertiv
Product ModelGXT5-10KIRT5UXLN
Product NameGXT5 UPS-10kVA/10kW/230V|Online Rack Tower Energy Star
Product SeriesGXT5
Brand NameVertiv Liebert
Product ConditionNew
Power Description
Input Voltage230 V AC
Output Voltage240 V AC
230 V AC
200 V AC
208 V AC
220 V AC
Waveform TypePure Sine Wave
Input Voltage Range115 V AC - 288 V AC
Output Frequency60 Hz
Input Frequency70 Hz
Load Capacity (VA)10 kVA
Technical Information
Application/UsageBanking
Retail & Wholesale
Network
Mission Critical Equipment
IT Equipment
Healthcare
Finance
Edge Computing
Business
Telecommunication
Plug/Connector TypeHardwired
PhaseSingle Phase
Receptacle TypeIEC 320 EN 60320 C13
Terminal Block
IEC 60320 C19
EMI/RFI Noise FilterYes
Transfer Time0 ns
Receptacle Detail4 x IEC 60320 C19
4 x IEC 320 EN 60320 C13
