About the product

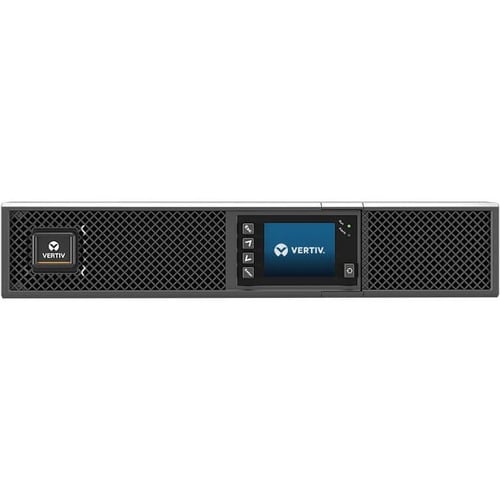

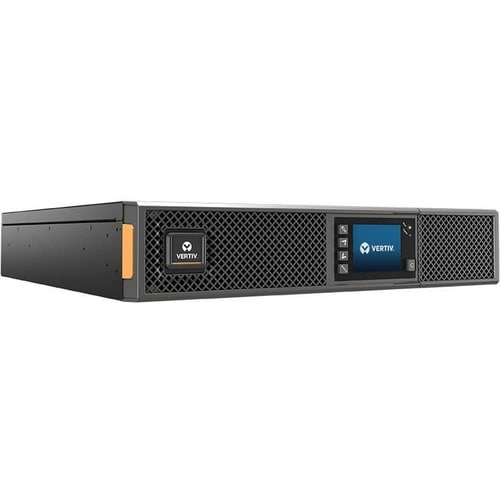

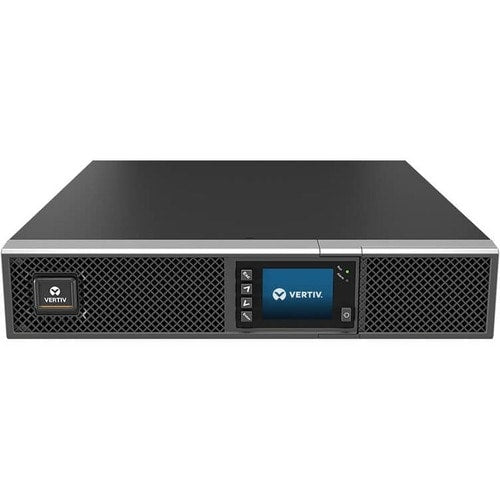

The Vertiv Liebert GXT5 UPS 2000VA/2000W is a 2U UPS solution for ensuring the health and availability of IT infrastructure. With online, double conversion technology, the UPS protects critical equipment against outages and every type of power disturbance without drawing on battery power, extending battery life and minimizing replacements. This can support a wide range of power environments including 200/208/220/230/240V user configurable AC power and has scalable runtime options with matching external battery cabinets to offer extra time during an outage to support critical equipment and activity. It includes hot-swappable batteries and all hardware for installing it as a tower or in an equipment rack. This single-phase UPS is ENERGY STAR® 2.0 certified and offers leading normal mode power efficiency and Eco-mode for ultimate efficiency levels. It comes with a 5-year warranty (3-year factory warranty plus 2-year extended warranty). This promotion is subject to the Distributor's product availability and is only available while product stocks last. Vertiv reserves the right to provide a 1-month notice to terminate the offer. This offer is not available in conjunction with any other offer/discount.
- 2 kW load capacity - backup power for your valuable electronics
- 2 kVA load capacity provides sufficient backup during power failures
- Up to 3.20 minute runtime on full load to preserve critical data from power shortage interruptions
Technical Specifications
| Controls/Indicators | |
| Status Indicators | Color LCD |
| Environmental Conditions | |
| Sound Emission | 48 dB |
| Maximum Operating Temperature | 104°F (40°C) |
| Environmental Sensors | Leak Detection Sensor |
| Humidity Sensor | |
| Temperature Sensor | |
| Interfaces/Ports | |
| VGA | No |
| Network (RJ-45) | Yes |
| Modem (RJ-11) | No |
| Serial Port | Yes |
| USB (HID Compliant) Port | Yes |
| Physical Characteristics | |
| Weight (Approximate) | 46.30 lb (21000 g) |
| Form Factor | Rack/Tower |
| Rack Height | 2U |
| Height | 3.35" (85 mm) |
| Width | 16.93" (430 mm) |
| Depth | 18.50" (470 mm) |
| Product Color | Black |
| Color Family | Black |
| General Information | |
| Product Type | Double Conversion Online UPS |
| Manufacturer Part Number | GXT52000IRT2UXL |
| Manufacturer Website Address | http://www.vertiv.com/ |
| Manufacturer | Vertiv |
| Product Model | GXT5-2000IRT2UXL |
| Product Name | GXT5 UPS - 2000VA/2000W 230V | Online Rack Tower |
| Product Series | GXT5 |
| Brand Name | Vertiv Liebert |
| Product Condition | New |
| Miscellaneous | |
| Package Contents |
|
| Software Included | Free Download - Power Insight 2.2 |
| Certifications & Standards |
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
| TAA Compliant | No |
| Energy Star | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) | |
| Power Description | |
| Circuit Breaker | Yes |
| Input Voltage | 230 V AC |
| Output Voltage | 220 V AC |
| 230 V AC | |
| 240 V AC | |
| 208 V AC | |
| 200 V AC | |
| Waveform Type | Pure Sine Wave |
| Input Voltage Range | 115 V AC - 288 V AC |
| Input Frequency | 70 Hz |
| Load Capacity (VA) | 2 kVA |
| Load Capacity (Watt) | 2 kW |
| Battery Information | |
| Battery Life | 5 Year |
| Battery Chemistry | Lead Acid |
| Hot Swappable | Yes |
| Battery Size | 12V |
| Battery Capacity | 9000 mAh |
| Hot Pluggable | Yes |
| Number of Batteries | 3 |

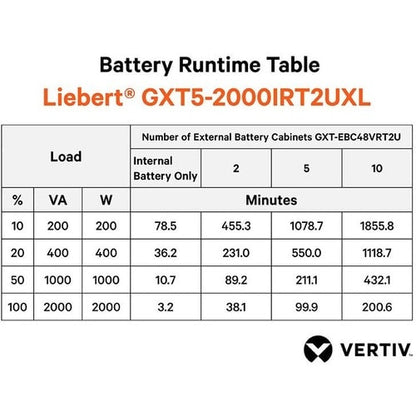

| Backup/Run Time (Half Load) | 10.70 Minute |
| Backup/Run Time (Full Load) | 3.20 Minute |
| Battery Characteristics | Valve-regulated, Non-spillable |
| Replaceable Battery | Yes |
| DC System Voltage | 48 V DC |
| Typical Battery Recharge Time | 4 Hour |
| Technical Information | |
| Application/Usage | Banking |
| VoIP | |
| Data Center | |
| Education | |
| Finance | |
| Government | |
| Healthcare | |
| Hosting | |
| Industry | |
| IT Infrastructure | |
| Large Network Peripheral | |
| Manufacturing | |
| Mission Critical Equipment | |
| Network Closet | |
| Network Workstation | |
| Retail and Wholesale | |
| Server | |
| Telecommunication | |
| Transportation | |
| Commercial | |
| Protection Type | Deep Discharge |
| Under Current | |
| Under Voltage | |
| Noise | |
| Output Over Current | |
| Output Over Voltage | |
| Output Short Circuit | |
| Over Charge | |
| Over Current | |
| Over Loading | |
| Over Power | |
| Over Temperature | |
| Over Voltage | |
| Power Failure | |
| Quad | |
| RFI | |
| Sag | |
| Short Circuit | |
| Soft Start | |
| Discharge | |
| Electric Shock | |
| Electronic Current Limit | |
| EMI | |
| Spike | |
| Surge | |
| Temperature | |
| Thermal Overload | |
| Transient | |
| EMI / RFI | |
| Excessive Low Battery | |
| Fuse | |
| Harmonics | |
| High/Low Voltage | |
| Inrush Current | |
| Lightning | |
| Line Noise | |
| Low Battery | |
| No Load | |
| AC Noise | |
| AC Surge | |
| Black Out | |
| Brownout | |
| Dataline Surge | |
| Plug/Connector Type | IEC 60320 C20 |
| Cord Length | 10 ft (3.05 m) |
| Phase | Single Phase |

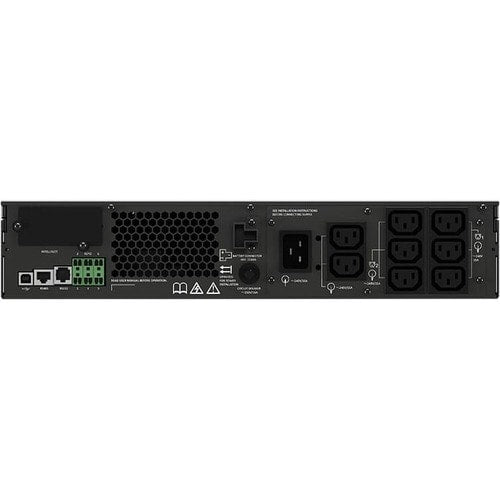

| Receptacle Type | IEC 60320 C13 |
| Transfer Time | 0 ns |
| Receptacle Detail | 8 x IEC 60320 C13 |
