About the product

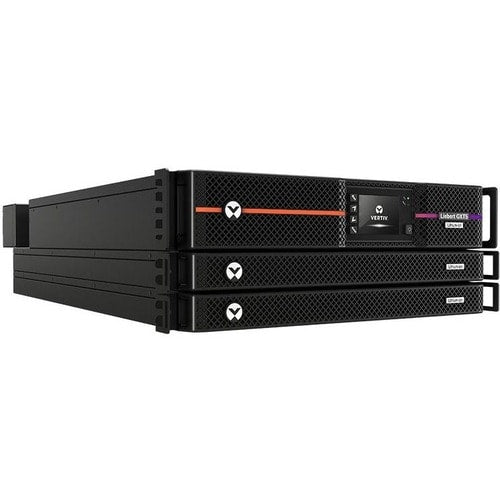

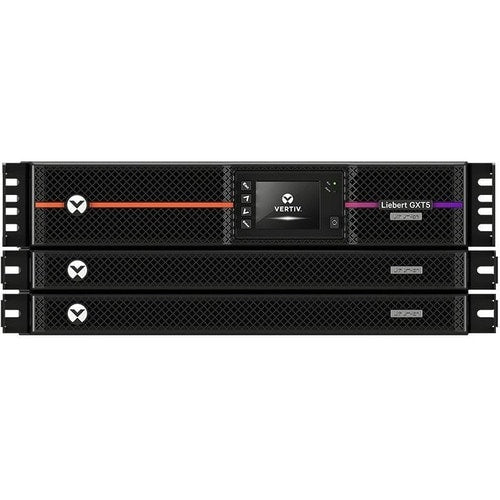

The Vertiv Liebert GXT5 Lithium-Ion UPS (5-10kVA) protects critical IT applications from outages and power disturbances. This online high-capacity UPS offers the highest level of power conditioning and battery backup in server rooms, network closets, and other edge or distributed IT locations. Lithium-Ion batteries require fewer battery replacements and last up to 3x as long as VRLA batteries reducing maintenance, labor, and replacement costs (resulting in the lowest TCO). They provide industry-leading runtime (up to 14 minutes at full load) to protect critical equipment during an unexpected power loss. They give better performance at higher temperatures, support up to 10 times more discharge cycles, and deliver faster recharge times compared to VRLA batteries. The UPS has Integrated Maintenance Bypass Cabinet (MBC) which provides continuous power to connected equipment even during UPS maintenance or replacement, if needed. It also has RDU101 SNMP/Webcard for remote management.
Technical Specifications
| Controls/Indicators | |
| Status Indicators | LED & LCD |
| Display & Graphics | |
| Display | LCD/LED |
| Battery Information | |
| Battery Chemistry | Lithium Ion (Li-Ion) |
| Backup/Run Time (Half Load) | 23 Minute |
| Backup/Run Time (Full Load) | 11 Minute |
| Interfaces/Ports | |
| USB | Yes |
| Network (RJ-45) | Yes |
| Modem (RJ-11) | No |
| Serial Port | Yes |
| Physical Characteristics | |
| Weight (Approximate) | 155 lb (70306.82 g) |
| Form Factor | Rack/Tower |
| Rack Height | 4U |
| Height | 6.90" (175.26 mm) |
| Width | 16.90" (429.26 mm) |
| Depth | 35" (889 mm) |
| General Information | |
| Product Type | Double Conversion Online UPS |
| Manufacturer Part Number | GXT5LI-10KMVRT4UXLN |
| Manufacturer Website Address | http://www.vertiv.com/ |
| Manufacturer | Vertiv |
| Product Model | GXT5LI-10KMVRT4UXLN |
| Product Name | GXT5LI-10KMVRT4UXLN 10000VA/10000W Rack/Tower UPS |
| Brand Name | Vertiv Liebert |
| Power Description | |
| Input Voltage | 230 V AC |
| 120 V AC | |
| Output Voltage | 240 V AC |
| 120 V AC | |
| Waveform Type | Pure Sine Wave |
| Load Capacity (VA) | 10 kVA |
| Load Capacity (Watt) | 10 kW |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
| TAA Compliant | No |
| Energy Star | Yes |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Restriction of Hazardous Substances (RoHS) 2 | |
| Waste Electrical and Electronic Equipment Directive (WEEE) | |
| Technical Information | |
| Application/Usage | Network Closet |
| Server Room | |
| IT Equipment | |
| Edge Computing | |
| Protection Type | Output Over Voltage |
| Brownout | |
| Fuse | |
| Plug/Connector Type | Hardwired |
| Phase | Single Phase |
| Receptacle Type | Hardwired |
| Transfer Time | 0 ns |
