About the product

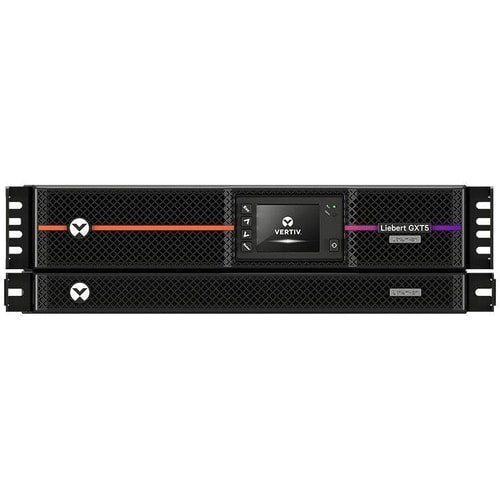

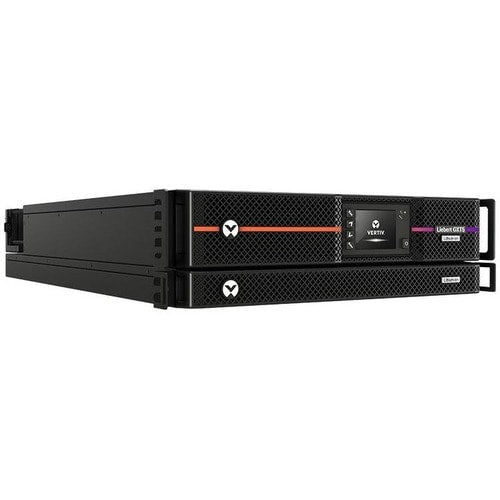

The Vertiv Liebert GXT5 Lithium-Ion UPS (5-10kVA) protects critical IT applications from outages and power disturbances. This online high-capacity UPS offers the highest level of power conditioning and battery backup in server rooms, network closets, and other edge or distributed IT locations. Lithium-Ion batteries require fewer battery replacements and last up to 3x as long as VRLA batteries reducing maintenance, labor, and replacement costs (resulting in the lowest TCO). They provide industry-leading runtime (up to 14 minutes at full load) to protect critical equipment during an unexpected power loss. They give better performance at higher temperatures, support up to 10 times more discharge cycles, and deliver faster recharge times compared to VRLA batteries. The UPS has Integrated Maintenance Bypass Cabinet (MBC) which provides continuous power to connected equipment even during UPS maintenance or replacement, if needed. It also has RDU101 SNMP/Webcard for remote management.
- 5 kVA load capacity - work without any interruption during power outages
- 5 kW load capacity - backup power for your valuable electronics
- Prevent critical data loss by staying powered during a blackout with up to 5 kW load capacity
- Up to 10 minute runtime on full load to preserve critical data from power shortage interruptions
Technical Specifications
| Controls/Indicators | |
| Status Indicators | LED & LCD |
| Display & Graphics | |
| Display | LCD |
| Battery Information | |
| Battery Chemistry | Lithium Ion (Li-Ion) |
| Hot Swappable | Yes |
| Backup/Run Time (Half Load) | 21.50 Minute |
| Backup/Run Time (Full Load) | 10 Minute |

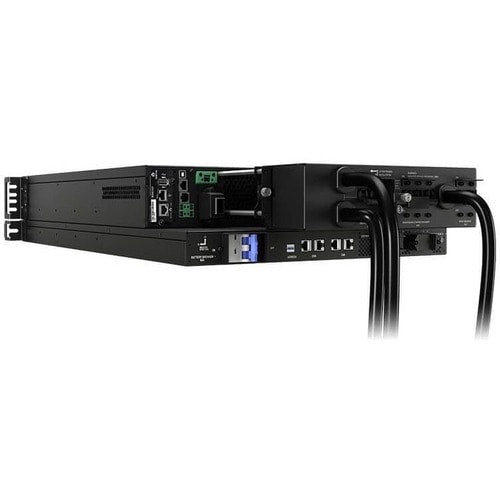

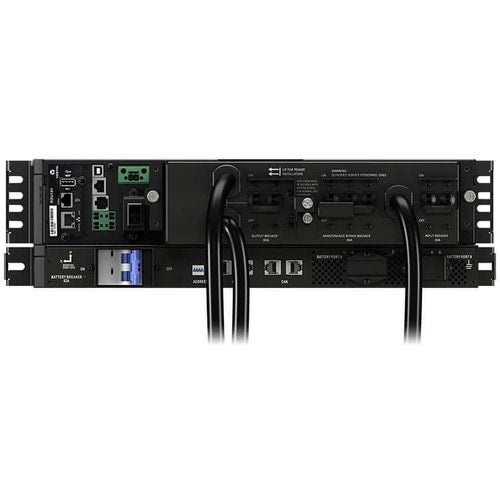

| Interfaces/Ports | |
| USB | Yes |
| VGA | No |
| Network (RJ-45) | Yes |
| Modem (RJ-11) | No |
| Serial Port | Yes |
| Physical Characteristics | |
| Weight (Approximate) | 84 lb (38101.76 g) |
| Form Factor | Rack/Tower |
| Rack Height | 3U |
| Height | 5.20" (132.08 mm) |
| Width | 16.90" (429.26 mm) |
| Depth | 35" (889 mm) |
| General Information | |
| Product Type | Double Conversion Online UPS |
| Manufacturer Part Number | GXT5LI-5000MVRT3UXLN |
| Manufacturer Website Address | http://www.vertiv.com/ |
| Manufacturer | Vertiv |
| Product Model | GXT5LI-5000MVRT3UXLN |
| Product Name | GXT5LI-5000MVRT3UXLN 5000VA/5000W Rack/Tower UPS |
| Brand Name | Vertiv Liebert |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
| TAA Compliant | No |
| Energy Star | Yes |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Restriction of Hazardous Substances (RoHS) 2 | |
| Waste Electrical and Electronic Equipment Directive (WEEE) | |
| Power Description | |
| Circuit Breaker | Yes |
| Input Voltage | 120 V AC |
| 230 V AC | |
| Output Voltage | 120 V AC |
| 240 V AC | |
| Waveform Type | Pure Sine Wave |
| Input Voltage Range | 120 V AC - 240 V AC |
| Load Capacity (VA) | 5 kVA |
| Load Capacity (Watt) | 5 kW |
| Technical Information | |
| Application/Usage | Server Room |
| Edge Computing | |
| IT Equipment | |
| Network Closet | |
| Protection Type | Fuse |
| Dataline | |
| Brownout | |
| Output Over Voltage | |
| Plug/Connector Type | NEMA L14-30P |
| Phase | Single Phase |
| Receptacle Type | NEMA L14-30R |
| Transfer Time | 0 ns |
| Receptacle Detail | 2 x NEMA L14-30R |
