About the product

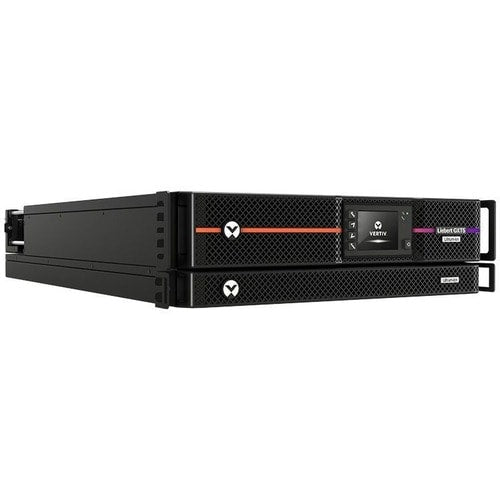

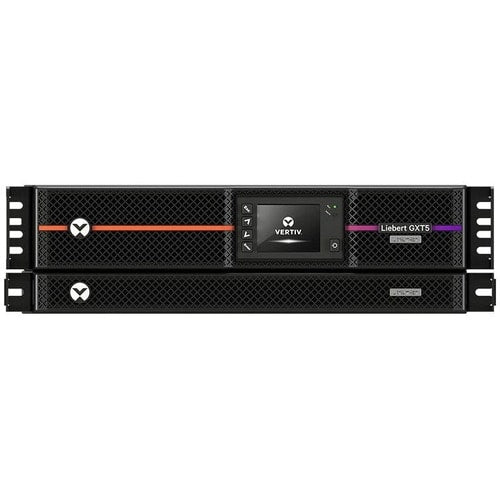

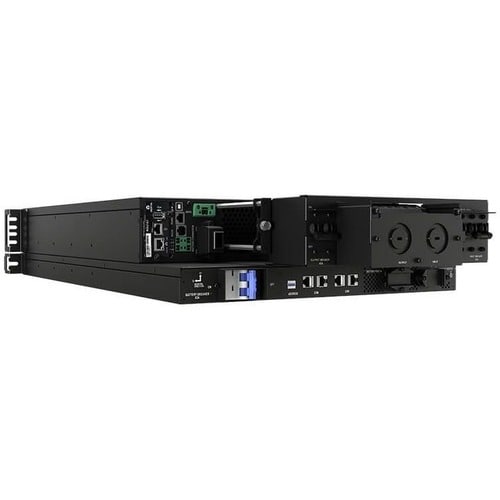

The Vertiv Liebert GXT5 Lithium-Ion UPS (5-10kVA) protects critical IT applications from outages and power disturbances. This online high-capacity UPS offers the highest level of power conditioning and battery backup in server rooms, network closets, and other edge or distributed IT locations. Lithium-Ion batteries require fewer battery replacements and last up to 3x as long as VRLA batteries reducing maintenance, labor, and replacement costs (resulting in the lowest TCO). They provide industry-leading runtime (up to 14 minutes at full load) to protect critical equipment during an unexpected power loss. They give better performance at higher temperatures, support up to 10 times more discharge cycles, and deliver faster recharge times compared to VRLA batteries. The UPS has Integrated Maintenance Bypass Cabinet (MBC) which provides continuous power to connected equipment even during UPS maintenance or replacement, if needed. It also has RDU101 SNMP/Webcard for remote management.
- Prevent critical data loss by staying powered during a blackout with up to 6 kW load capacity
- 6 kVA load capacity provides sufficient backup during power failures
- Up to 8.50 minute runtime on full load to preserve critical data from power shortage interruptions
Technical Specifications
| Controls/Indicators | |
| Status Indicators | LED & LCD |
| Display & Graphics | |
| Display | LCD |
| Battery Information | |
| Battery Chemistry | Lithium Ion (Li-Ion) |
| Hot Swappable | Yes |
| Backup/Run Time (Half Load) | 19 Minute |
| Backup/Run Time (Full Load) | 8.50 Minute |
| Interfaces/Ports | |
| USB | Yes |
| VGA | No |
| Network (RJ-45) | Yes |
| Modem (RJ-11) | No |
| Serial Port | Yes |
| Physical Characteristics | |
| Weight (Approximate) | 80 lb (36287.39 g) |
| Form Factor | Rack/Tower |
| Rack Height | 3U |
| Height | 5.20" (132.08 mm) |
| Width | 16.90" (429.26 mm) |
| Depth | 35" (889 mm) |
| General Information | |
| Product Type | Double Conversion Online UPS |
| Manufacturer Part Number | GXT5LI-6000MVRT3UXLN |
| Manufacturer Website Address | http://www.vertiv.com/ |
| Manufacturer | Vertiv |
| Product Model | GXT5LI-6000MVRT3UXLN |
| Product Name | GXT5LI-6000MVRT3UXLN 6000VA/6000W Rack/Tower UPS |
| Brand Name | Vertiv Liebert |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
| TAA Compliant | No |
| Energy Star | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) | |
| Restriction of Hazardous Substances (RoHS) 2 | |
| Power Description | |
| Circuit Breaker | Yes |
| Input Voltage | 120 V AC |
| 230 V AC | |
| Output Voltage | 120 V AC |
| 240 V AC | |
| Waveform Type | Pure Sine Wave |
| Input Voltage Range | 120 V AC - 240 V AC |
| Load Capacity (VA) | 6 kVA |
| Load Capacity (Watt) | 6 kW |
| Technical Information | |
| Application/Usage | Server Room |
| Network Closet | |
| IT Equipment | |
| Edge Computing | |
| Protection Type | Dataline |
| Brownout | |
| Fuse | |
| Output Over Voltage | |
| Plug/Connector Type | Hardwired |
| Phase | Single Phase |
| Receptacle Type | Hardwired |
| Transfer Time | 0 ns |
