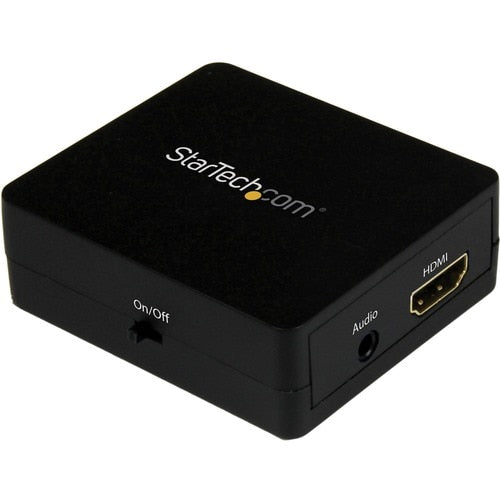

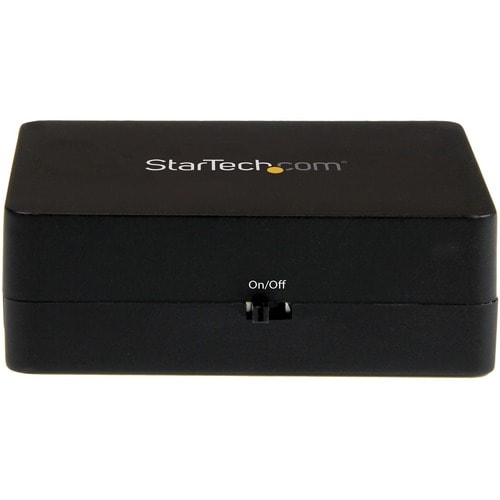

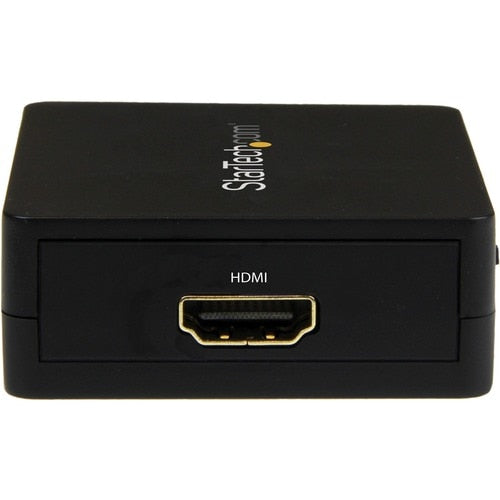

StarTech.com HDMI Audio Extractor
StarTech.com HDMI Audio Extractor
VPN:HD2A SKU:CBAV9557F CPU:65030863308
Easily integrates the audio from your HDMI source with equipment that doesn't support HDMIExtracts analog and digital audio with an included 3.5mm to SPDIF adapterExpand the capabilities of the audio extractor by converting to RCA audio, using an inexpensive 3.5mm to RCA adapter (sold separately)
Couldn't load pickup availability
Volume discount available - Ask for quote..
View full details






Recently Viewed
StarTech.com HDMI Audio Extractor
Product information summary

About the product

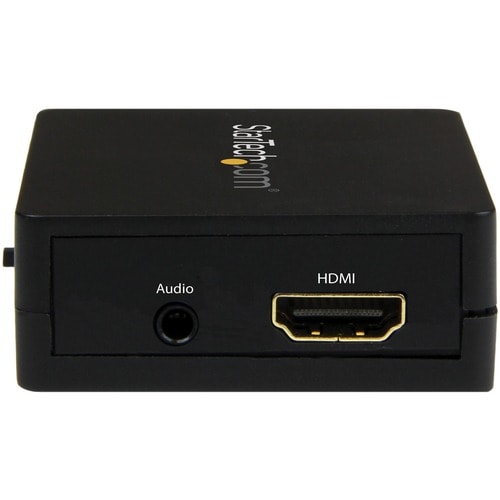

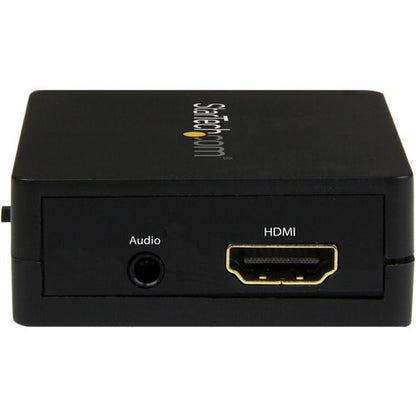

This HDMI® audio extractor lets you separate stereo audio from your HDMI video signal and connect it to a 3.5mm audio device, such as your stereo sound system or desktop speakers. You can also extract the audio from the HDMI signal and integrate it into an optical TOSLINK® application, using the included digital SPDIF adapter. Hassle-free integration Your latest consumer A/V equipment probably only offers an HDMI output. This can make it difficult to integrate devices

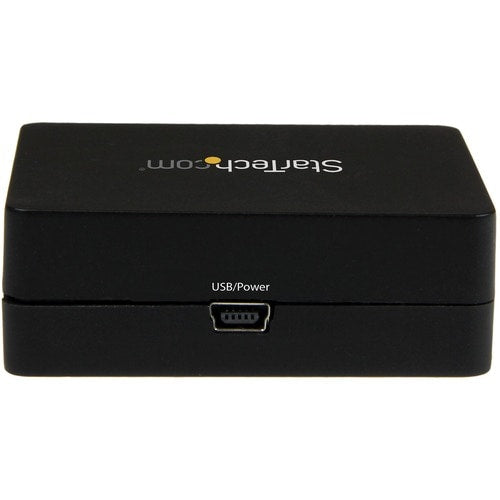

such as your new Blu-ray™ player or computer system, with your existing audio equipment or desktop speakers. The HDMI audio extractor is USB powered using the included power cable, for easy integration with your computer systems. The adapter also features a small footprint that discreetly blends into your hardware setup, for a uniform look. Versatile connection options With a 3.5mm audio output and a TOSLINK adapter included, the HDMI audio extractor lets you output audio to virtually any non-HDMI equipment, whether it's digital or analog. This makes the audio extractor great for any application where you need to connect your HDMI source to speakers that don't have an HDMI input - such as desktop speakers, or a classroom or boardroom sound system. Maximum compatibility The audio extractor is HDCP enabled and HDMI 1.3b compliant, to ensure compatibility with your HDMI device. Plus, the HDMI output supports resolutions up to 1920x1080 (1080p) at 60Hz, to fit any HD application. The HDMI audio extractor can also be used with an inexpensive dual-RCA composite adapter (sold separately) to integrate the audio from your HDMI source into 2-channel RCA audio applications. The HD2A is backed by a 2-year StarTech.com warranty and free lifetime technical support. More from the Manufacturer More from the ManufacturerEasily integrates the audio from your HDMI source with equipment that doesn't support HDMIExtracts analog and digital audio with an included 3.5mm to SPDIF adapterExpand the capabilities of the audio extractor by converting to RCA audio, using an inexpensive 3.5mm to RCA adapter (sold separately)Discreet installation with small footprintSupports resolutions up to 1080p with HDMI pass-throughHDCP compliantUSB-powered
Technical Specifications
Power Description | |
Power Source | USB |
Miscellaneous | |
Package Contents |
|
Country of Origin | China |
Environmentally Friendly | Yes |
Technical Information | |
Functions | Audio Extraction |
Maximum Resolution | 1920 x 1080 |
Screen Mode Supported | Full HD |
Interfaces/Ports | |
USB | Yes |
HDMI | Yes |
Audio Line Out | Yes |
Number of HDMI Inputs | 1 |
Number of HDMI Outputs | 1 |
Physical Characteristics | |
Weight (Approximate) | 1.38 oz (39 g) |
Length | 2.40" (60.96 mm) |
Height | 0.80" (20.32 mm) |
Width | 2.20" (55.88 mm) |
Product Color | Black |
Color Family | Black |
General Information | |
Product Type | Signal Extractor |
Manufacturer Part Number | HD2A |
Manufacturer Website Address | http://www.startech.com |
Packaged Quantity | 1 Each |
Manufacturer | StarTech.com |
Product Name | HDMI Audio Extractor - 1080p |
Brand Name | StarTech.com |
