About the product

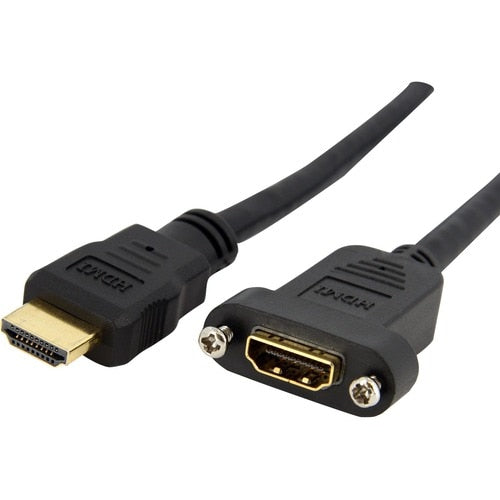

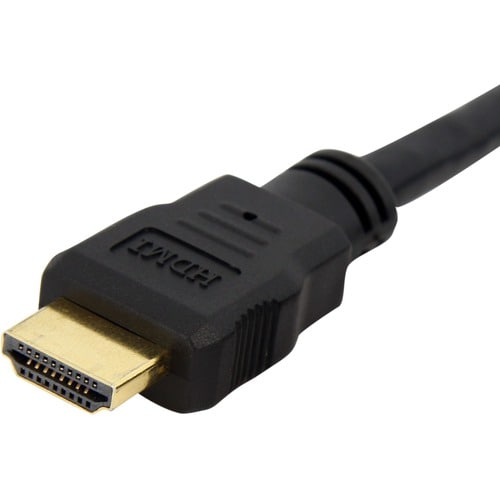

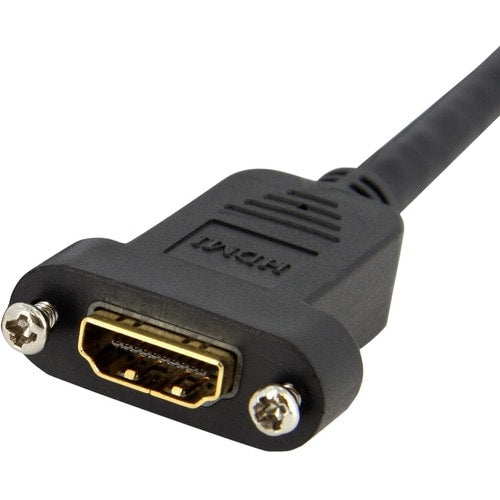

The HDMIPNLFM3 3ft High Speed HDMI® Cable for Panel Mount features an HDMI male connector on one end, and an HDMI panel mount (female) molded connector on the other, providing a well-secured, easy to access HDMI connection on any machine port or faceplate.
Backed by StarTech.com's Lifetime Warranty.
More from the Manufacturer
- HIGH SPEED PANEL MOUNT CABLE: 3 ft (91 cm) HDMI 1.4b cable supports 4K (3840x2160p, 24, 25, 30Hz | 4096x2160p, 24Hz), Full HD (1920x1080p, 120Hz), 10.2 Gbps bandwidth, wide aspect ratio, 8Ch Audio (5.1/7.1/DD+/Dolby TrueHD), 3D Video
- DURABLE: HDMI Ultra HD cable with durable PVC jacket for high strength and reliability; Molded female connector with two 4-40 (0.31"/8mm long) screws to secure on to a machine faceplate/port; Ideal for Commercial environments
- QUALITY CONSTRUCTION: 28AWG wire, corrosion resistant gold-plated connectors, and superior EMI shielding with Al-Mylar foil and copper braid improve signal integrity and reliability, providing higher quality video and audio
- APPLICATIONS: Allows easy access to HDMI ports on your computer/laptop/desktop/workstation; Connect TV/monitor/display/projector; Ideal for use in retail kiosk/booth/lecture podium/embedded applications; Samsung/Sony/Apple TV/Dell/LG
- SPECS: 3 ft (91 cm) | Black | HDMI 1.4 | HDMI Male to Female (panel mountable with two 4-40 screws) | 28 AWG | PVC Jacket | Shield: Al-Mylar foil with Braid | ARC, Deep Color, HDCP 1.4, CEC, YCC601 Color | Supports HDMI 1.4 and earlier
Technical Specifications
| Miscellaneous | |
| Certifications & Standards | CMG Rated |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Restriction of Hazardous Substances (RoHS) | |
| Waste Electrical and Electronic Equipment Directive (WEEE) | |
| Physical Characteristics | |
| Shipping Weight (Approximate) | 3.36 oz (95.25 g) |
| Weight (Approximate) | 3.03 oz (86 g) |
| Shipping Height | 0.51" (12.95 mm) |
| Shipping Width | 7.87" (199.90 mm) |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Product Color | Black |
| Color Family | Black |
| General Information | |
| Product Type | Video Cable Adapter |
| Manufacturer Part Number | HDMIPNLFM3 |
| Manufacturer Website Address | http://www.startech.com |
| Packaged Quantity | 1 Each |
| Manufacturer | StarTech.com |
| Product Name | 3 ft Standard HDMI® Cable for Panel Mount - F/M |
| Brand Name | StarTech.com |
| Packing | Bagged |
| Technical Information | |
| Cable Length | 3 ft (0.91 m) |
| Conductor | Copper |
| Device Supported | PC |
| Faceplate | |
| Audio/Video Device | |
| Jacket Type | CMG |
| Features | Molded |
| Cable Characteristic | Extension Cable |
| Cable Type | HDMI |
| Connector Type on First End | HDMI Digital Audio/Video - Female |
| Connector Type on Second End | HDMI Digital Audio/Video - Male |
| American Wire Gauge | 28 AWG |
| Connector on First End Details | Digital Audio/Video - Female |
| 1 x 19-pin HDMI Digital Audio/Video - Female | |
| Connector on Second End Details | 1 x 19-pin HDMI Digital Audio/Video - Male |
| Connector Gender on First End | Female |
| Connector Gender on Second End | Male |
