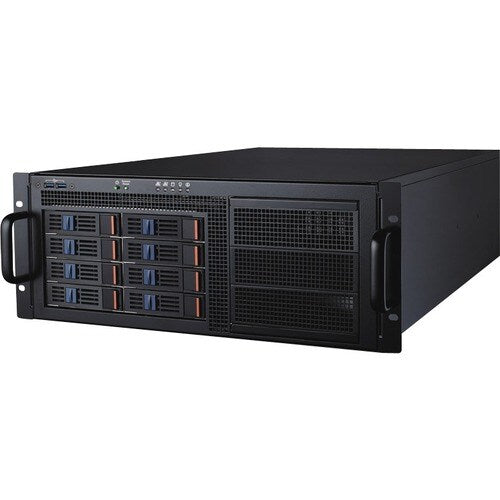

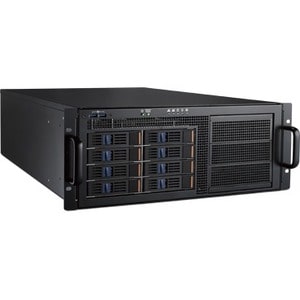

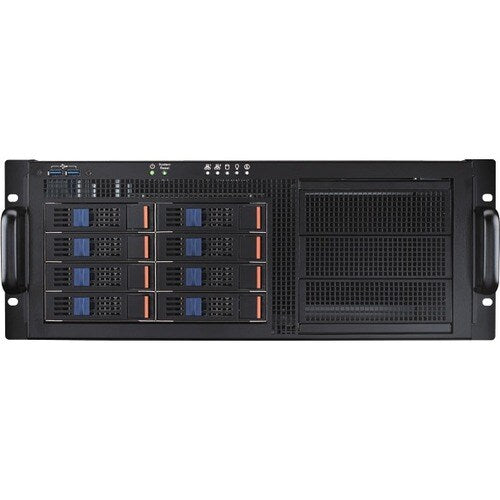

4U RACK/TOWER CHASSIS

Name: 4U RACK/TOWER CHASSIS
Brand: Advantech
SKU: RSC370428
Price: 2713.68 CAD
Availability: OutOfStock

$2,713.68 CAD

~~$3,039.32 CAD~~ $2,713.68 CAD

-10% OFF Ask for quote

Shipping calculated at checkout.

Advantech 4U Rackmount / Tower Chassis for EATX/ATX/MicroATX Motherboard - Tower/Rack-mountable - 4U - 13 x Bay - 2 x 1.80 kW - Power Supply Installed - EATX, ATX, Micro ATX Motherboard Supported - 5 x Fan(s) Supported - 3 x External 5.25" Bay - 2 x Internal 2.5" Bay - 8 x External 2.5"/3.5" Bay(s) - 10x Slot(s) - 2 x USB(s)

VPN:HPC-7483-18RXE SKU:RSC370428 UPC:

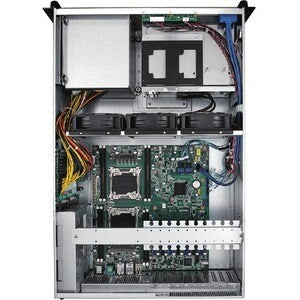

Supports EATX motherboard to provide a significant number of PCI slots, expansion slots and peripheral ports with enhanced heat dissipation capability
13 expansion bays provide enough space to lodge numerous PC components

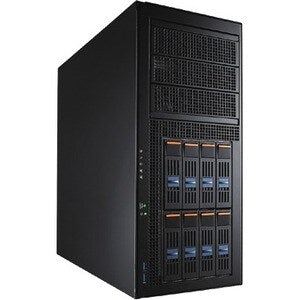

The tower/rack-mountable structure offers a higher flow of air and ample area to store hardware

Quantity

Volume discount available - Ask for quote..

View full details

Product information summary

About the product

Supports EATX motherboard to provide a significant number of PCI slots, expansion slots and peripheral ports with enhanced heat dissipation capability
13 expansion bays provide enough space to lodge numerous PC components
The tower/rack-mountable structure offers a higher flow of air and ample area to store hardware

Technical Specifications

I/O Expansions

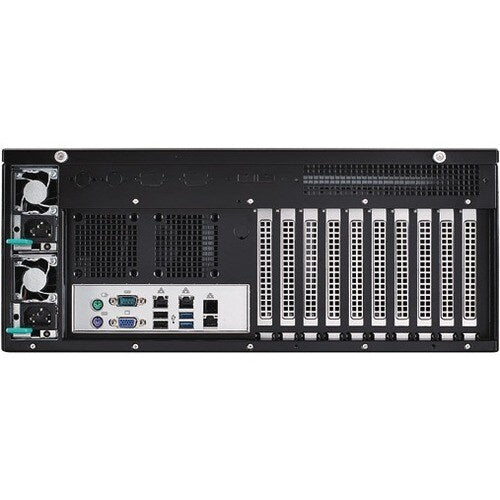

Total Number of Expansion Slots	10
Interfaces/Ports
Total Number of USB Ports	2
Miscellaneous
Country of Origin	China
Bays
"Number of External 5.25"" Bays"	3
"Number of Internal 2.5"" Bays"	2
Number of Total Expansion Bays	13
"Number of External 2.5""/3.5"" Bays"	8
Power Description
Number of Power Supplies Supported	2
Number of Power Supplies Installed	2
Power Supply Wattage	1.80 kW
Power Supply Installed	Yes
Physical Characteristics
Weight (Approximate)	44.09 lb (20000 g)
Form Factor	Tower/Rack-mountable
Height	6.97" (177 mm)
Width	17.13" (435 mm)
Depth	25.91" (658 mm)
Compatible Rack Unit	4U
Technical Information
Motherboard Supported	ATX
	Micro ATX
	EATX
Number of Fans Supported	5
Number of Fans Installed	3
Installed Fan Size	4.72" (120 mm)
General Information
Product Type	Server Case
Manufacturer Part Number	HPC-7483-18RXE
Manufacturer Website Address	http://www.advantech.com
Manufacturer	Advantech Co., Ltd
Product Model	HPC-7483
Product Name	4U Rackmount / Tower Chassis for EATX/ATX/MicroATX Motherboard
Brand Name	Advantech
