Advantech
2U STORAGE CHASSIS FOR ATX/EATX
2U STORAGE CHASSIS FOR ATX/EATX
Regular price
$2,756.71 CAD
Regular price
$3,087.52 CAD
Sale price
$2,756.71 CAD
Unit price
/
per
Shipping calculated at checkout.

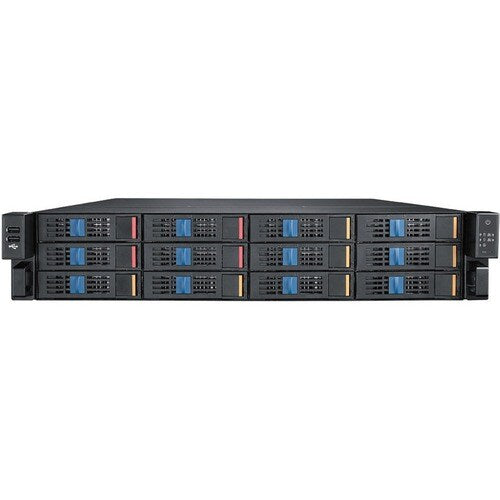

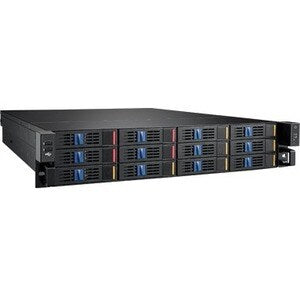

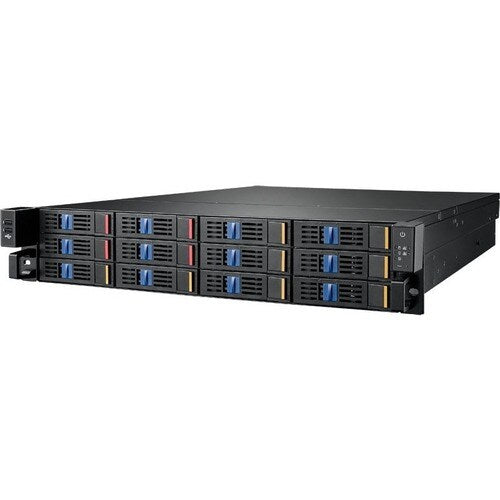

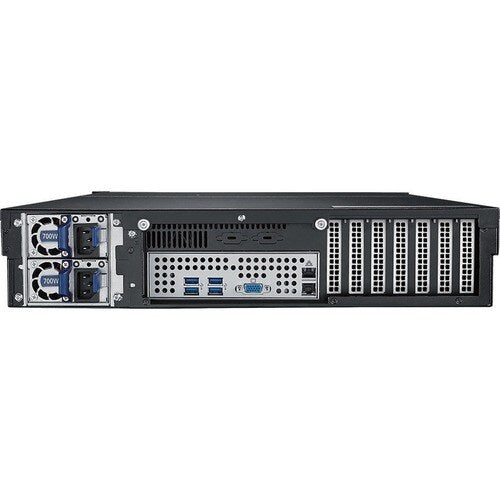

Advantech HPC-8212 Server Case - Rack-mountable - 2U - 14 x Bay - 2 x 650 W - Power Supply Installed - EATX, ATX, Micro ATX Motherboard Supported - 2 x Internal 2.5" Bay - 12 x External 2.5"/3.5" Bay(s) - 6x Slot(s) - 2 x USB(s)
VPN:HPC-8212SE-R6A1E SKU:RSC786558 UPC:
- Sturdy 2U Rack-mountable case to shield censorious hardware and the user-friendly structure enables easy operations
- Supports EATX motherboard to provide a significant number of PCI slots, expansion slots and peripheral ports with enhanced heat dissipation capability
- 14 expansion bays - Add more hardware and make the machine powerful enough to seamlessly handle critical and heavy computing apps
Couldn't load pickup availability
Volume discount available - Ask for quote..
View full details



Recently Viewed
2U STORAGE CHASSIS FOR ATX/EATX
Product information summary

About the product
2U Storage Chassis for EATX/ATX/Micro ATX Serverboards with 12 Hot-Swappable Drive Bays
- 2U rackmount chassis supports EATX/ATX/uATX motherboard
- 12-bay hot-swappable 3.5"/2.5" SAS 12Gb/s drives or SATA 6Gb/s drives
- 4 x NVMe drives supported via an optional riser card
- Default 7x slots (low profile) rear panel, 3x slots (full height) optional
- Supports Flex ATX Power, 80+ redundant power supply
- Sturdy 2U Rack-mountable case to shield censorious hardware and the user-friendly structure enables easy operations
- Supports EATX motherboard to provide a significant number of PCI slots, expansion slots and peripheral ports with enhanced heat dissipation capability
- 14 expansion bays - Add more hardware and make the machine powerful enough to seamlessly handle critical and heavy computing apps
Technical Specifications
I/O Expansions | |
Total Number of Expansion Slots | 6 |
Interfaces/Ports | |
Total Number of USB Ports | 2 |
Miscellaneous | |
Country of Origin | China |
Bays | |
"Number of Internal 2.5"" Bays" | 2 |
Number of Total Expansion Bays | 14 |
"Number of External 2.5""/3.5"" Bays" | 12 |
Power Description | |
Number of Power Supplies Supported | 2 |
Number of Power Supplies Installed | 2 |
Power Supply Wattage | 650 W |
Power Supply Installed | Yes |
Technical Information | |
Motherboard Supported | Micro ATX |
EATX | |
ATX | |
Number of Fans Installed | 4 |
Installed Fan Size | 3.15" (80 mm) |
Physical Characteristics | |
Weight (Approximate) | 55.12 lb (25000 g) |
Form Factor | Rack-mountable |
Height | 3.48" (88.40 mm) |
Width | 17.24" (438 mm) |
Depth | 24.41" (620 mm) |
Compatible Rack Unit | 2U |
General Information | |
Product Type | Server Case |
Manufacturer Part Number | HPC-8212SE-R6A1E |
Manufacturer Website Address | http://www.advantech.com |
Manufacturer | Advantech Co., Ltd |
Product Model | HPC-8212 |
Product Name | HPC-8212 Server Case |
Brand Name | Advantech |
Product compare
Product warranty
Standard manufacturer warranty as applicable
Return policy
15 days return in original condition.
Price guarantee
!00% we are always lower than market price.
