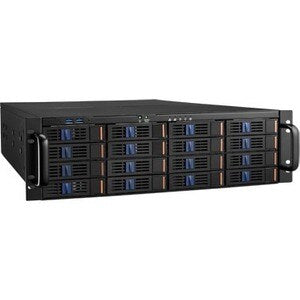

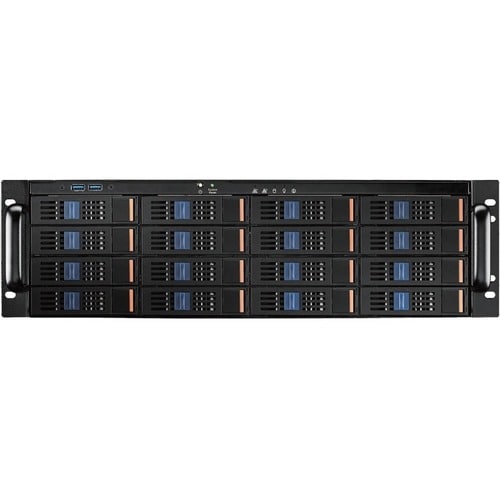

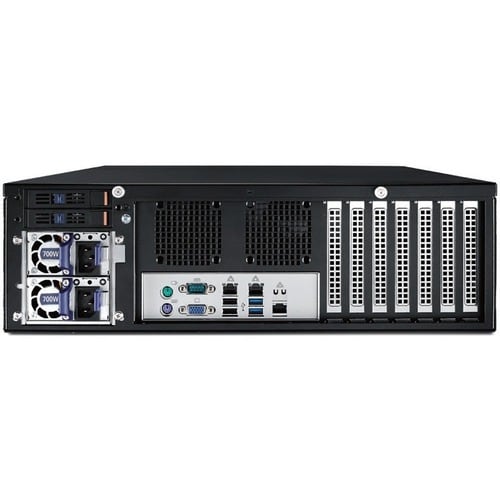

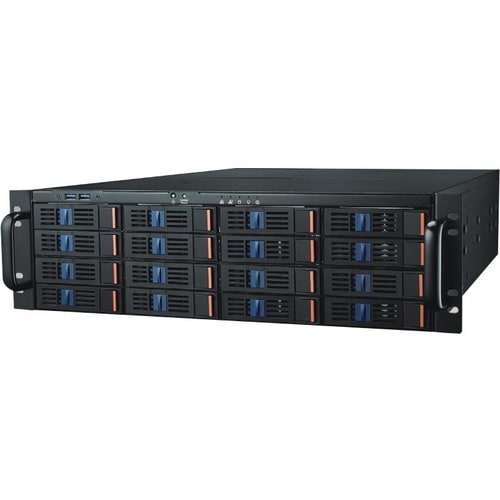

About the product
- Rack-mountable size for convenient installation and smooth operations
- Supports ATX motherboards to provide a significant number of PCI slots, expansion slots and peripheral ports with enhanced heat dissipation capability
- 18 expansion bays provide enough space to lodge numerous PC components
Technical Specifications
| I/O Expansions | |
| Total Number of Expansion Slots | 6 |
| Interfaces/Ports | |
| Total Number of USB Ports | 2 |
| Bays | |
| "Number of External 2.5"" Bays" | 2 |
| Number of Total Expansion Bays | 18 |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | China |
| Power Description | |
| Number of Power Supplies Supported | 2 |
| Number of Power Supplies Installed | 2 |
| Power Supply Wattage | 550 W |
| Power Supply Installed | Yes |
| Technical Information | |
| Motherboard Supported | Micro ATX |
| ATX | |
| Number of Fans Installed | 4 |
| Installed Fan Size | 3.15" (80 mm) |
| Physical Characteristics | |
| Weight (Approximate) | 61.73 lb (28000 g) |
| Form Factor | Rack-mountable |
| Height | 5.20" (132 mm) |
| Width | 17.13" (435 mm) |
| Depth | 21.26" (540 mm) |
| Compatible Rack Unit | 3U |
| General Information | |
| Product Type | Server Case |
| Manufacturer Part Number | HPC-8316SA-R5A1E |
| Manufacturer Website Address | http://www.advantech.com |
| Manufacturer | Advantech Co., Ltd |
| Product Model | HPC-8316 |
| Product Name | HPC-8316 Server Case |
| Brand Name | Advantech |
