About the product

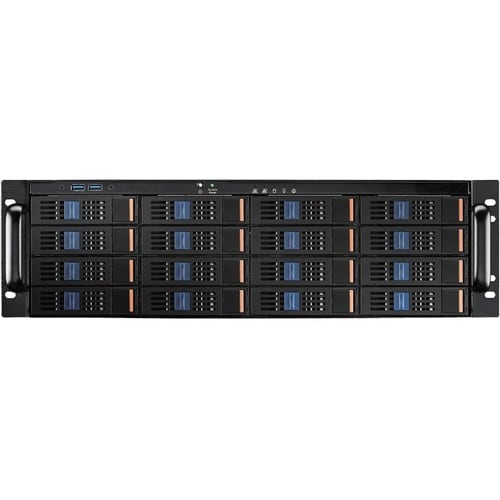

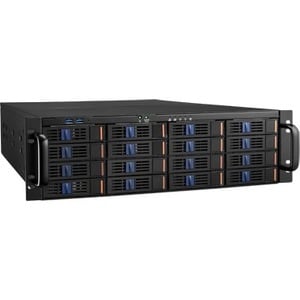

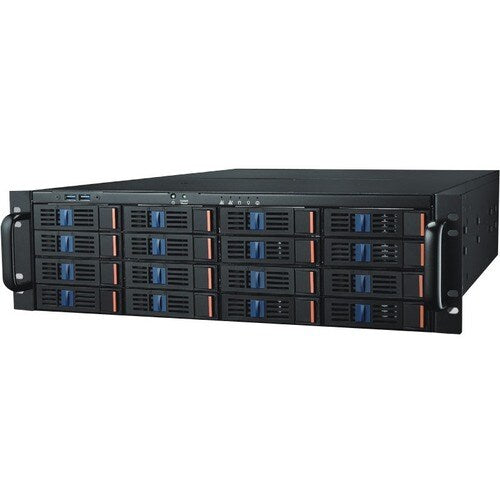

3U Storage Chassis for EATX/ATX/Micro ATX Serverboards with 16 Hot-Swappable Drive Bays
- 3U rackmount chassis supports EATX/ATX/Micro ATX serverboards
- Features 16 hot-swappable drive bays for 3.5/2.5" SAS 12 Gb/s or SATA 6 Gb/s drives

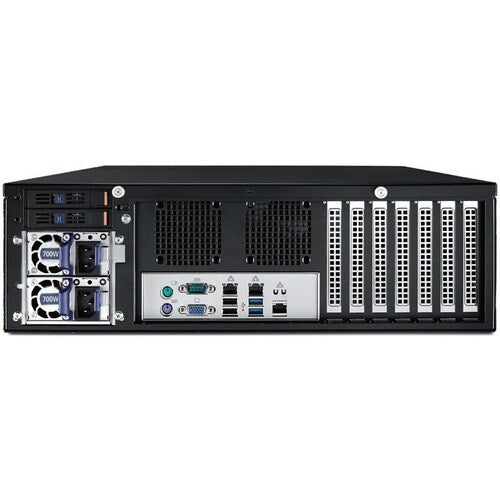

- Two rear 2.5" SATA drive bays with an optional hot-swappable bay for SAS SKUs
- Two front-accessible USB 3.0 ports
- Eliminates the need for an additional HBA card for SATA SKU chassis
- Supports Flex ATX Power, 2U 80+ single or redundant power supply
- Rack-mountable size for convenient installation and smooth operations
- Supports micro ATX motherboard to provide a significant number of PCI slots, expansion slots and peripheral ports with enhanced heat dissipation capability
- 18 expansion bays - Add more hardware and make the machine powerful enough to seamlessly handle critical and heavy computing apps
Technical Specifications
| I/O Expansions | |
| Total Number of Expansion Slots | 6 |
| Interfaces/Ports | |
| Total Number of USB Ports | 2 |
| Bays | |
| "Number of External 2.5"" Bays" | 2 |
| Number of Total Expansion Bays | 18 |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | China |
| Power Description | |
| Number of Power Supplies Supported | 2 |
| Number of Power Supplies Installed | 2 |
| Power Supply Wattage | 800 W |
| Power Supply Installed | Yes |
| Physical Characteristics | |
| Weight (Approximate) | 61.73 lb (28000 g) |
| Form Factor | Rack-mountable |
| Height | 5.20" (132 mm) |
| Width | 17.13" (435 mm) |
| Depth | 24.41" (620 mm) |
| Compatible Rack Unit | 3U |
| Technical Information | |
| Motherboard Supported | ATX |
| EATX | |
| Micro ATX | |
| Number of Fans Supported | 6 |
| Number of Fans Installed | 4 |
| Installed Fan Size | 3.15" (80 mm) |
| General Information | |
| Product Type | Server Case |
| Manufacturer Part Number | HPC-8316SE-R8A1E |
| Manufacturer Website Address | http://www.advantech.com |
| Manufacturer | Advantech Co., Ltd |
| Product Model | HPC-8316 |
| Product Name | HPC-8316 Server Case |
| Brand Name | Advantech |
