4U STORAGE CHASSIS FOR ATX SERVE

Name: 4U STORAGE CHASSIS FOR ATX SERVE
Brand: Advantech
SKU: RSC997766
Price: 3211.15 CAD
Availability: OutOfStock

$3,211.15 CAD

~~$3,596.49 CAD~~ $3,211.15 CAD

-10% OFF Ask for quote

Shipping calculated at checkout.

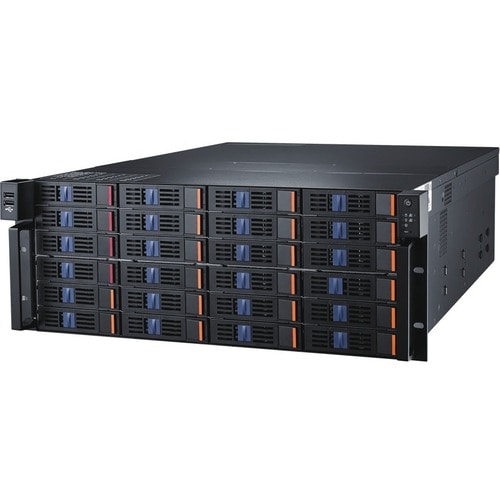

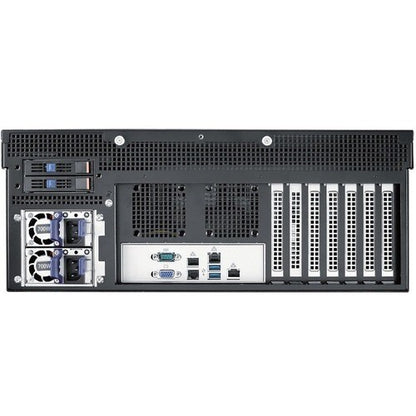

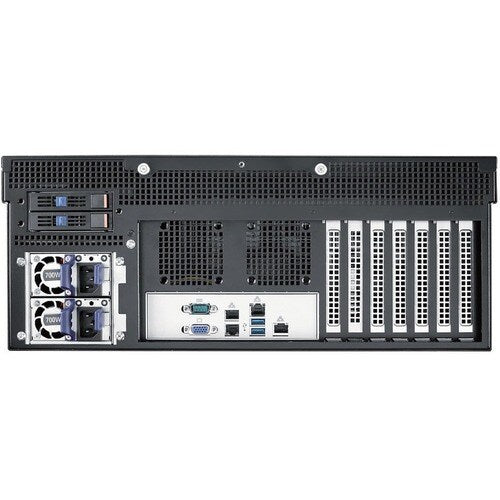

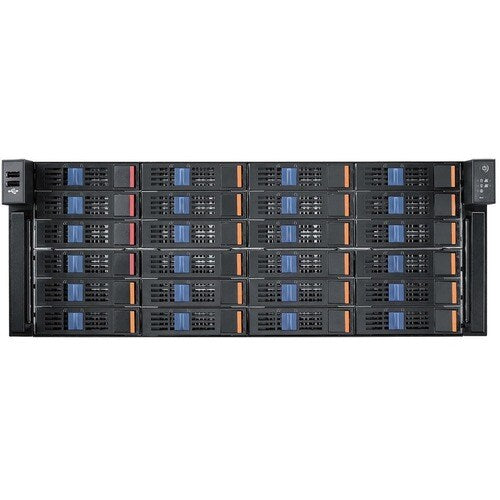

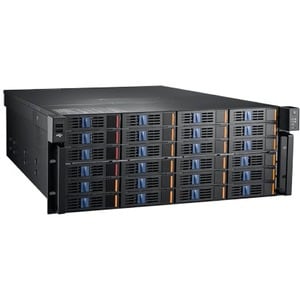

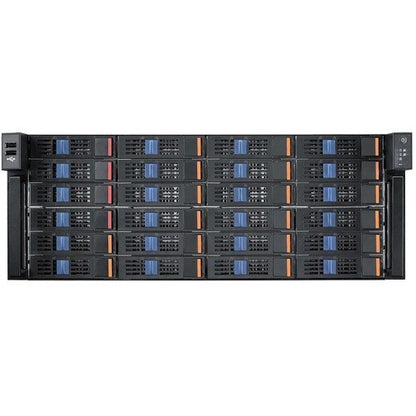

Advantech 4U Storage Chassis for ATX/EATX Serverboard with 24 Hot-swap Drive Bays - Rack-mountable - 4U - 26 x Bay - 2 x 550 W - Power Supply Installed - ATX, EATX, Micro ATX Motherboard Supported - 2 x External 2.5" Bay - 24 x External 2.5"/3.5" Bay(s) - 6x Slot(s) - 2 x USB(s)

VPN:HPC-8424SA-R5A1E SKU:RSC997766 UPC:

Rack-mountable size for convenient installation and smooth operations
Supports EATX motherboard to provide a significant number of PCI slots, expansion slots and peripheral ports with enhanced heat dissipation capability
Total 26 expansion bays; ample for the demandable computing

Quantity

Volume discount available - Ask for quote..

View full details

Product information summary

About the product

Rack-mountable size for convenient installation and smooth operations
Supports EATX motherboard to provide a significant number of PCI slots, expansion slots and peripheral ports with enhanced heat dissipation capability
Total 26 expansion bays; ample for the demandable computing

Technical Specifications

I/O Expansions
Total Number of Expansion Slots	6
Interfaces/Ports
Total Number of USB Ports	2
Miscellaneous
Package Contents	4U Storage Chassis for ATX/EATX Serverboard with 24 Hot-swap Drive Bays 1 x Slide Rail Kit
Country of Origin	China
Bays
"Number of External 2.5"" Bays"	2
Number of Total Expansion Bays	26
"Number of External 2.5""/3.5"" Bays"	24
Power Description
Number of Power Supplies Supported	2
Number of Power Supplies Installed	2
Power Supply Wattage	550 W
Power Supply Installed	Yes
Technical Information
Motherboard Supported	EATX
	Micro ATX
	ATX
Number of Fans Installed	4
Installed Fan Size	3.15" (80 mm)
Physical Characteristics
Weight (Approximate)	68.34 lb (31000 g)
Form Factor	Rack-mountable
Height	6.93" (176.02 mm)
Width	17.24" (437.90 mm)
Depth	21.26" (540 mm)
Compatible Rack Unit	4U
General Information
Product Type	Server Case
Manufacturer Part Number	HPC-8424SA-R5A1E
Manufacturer Website Address	http://www.advantech.com
Manufacturer	Advantech Co., Ltd
Product Model	HPC-8424
Product Name	4U Storage Chassis for ATX/EATX Serverboard with 24 Hot-swap Drive Bays
Brand Name	Advantech
