About the product

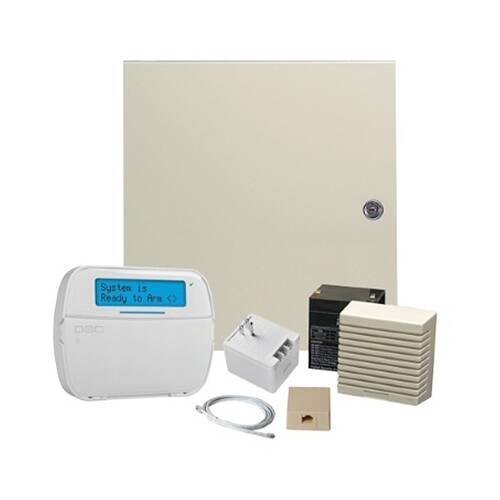

The DSC Neo Kit with 8 to 32 zone expandable panel and Full Message Hardwired LCD Keypad kit includes the essential hardware required to start building a wired DSC PowerSeries NEO system, including:
1x HS2032NK PowerSeries NEO Alarm Panel
1x PC5003C metal alarm cabinet
1x HS2LCD N Full Message Hardwired LCD Keypad
1x 12V backup battery
1x Plug-in transformer
1x Indoor surface-mount siren
Designed for commercial and residential security solutions. Additional hardware sold separately. Wired sensor connections only, wireless transceiver or additional keypad with wireless transceiver (sold separately) required for wireless sensors.
NOTE: PowerSeries NEO requires professional monitoring and will only work as a local alarm without a service contract. NEO systems are NOT backwards compatible with legacy PowerSeries 433 MHz keypads or expanders. Please ensure compatibility before purchasing in retrofit installs.
HS32-51CAN Kit Specs and Features
HS2032NK NEO Panel
- 8 hardwire inputs can be expanded to 32 zones
- 2 PGM outputs
- Supports 4 partitions
- 500 event buffer
- Allows for remote firmware upgrades (panel/keypads/transceiver)
- 128 bit AES encryption for the highest level of protection
- Operating Temperature: 0 to 40 degrees C (32 to 120 F)
- Requires 16.5 VAC transformer (not included)
- Supports up to 8 wired keypads
- Supports up to 72 user access codes
- FCC/IC, SIA CP-01, CSFM, CNC, Anatel Control Panel Approvals
HS2LCD N Keypad
- Supports up to 6 different languages
- Global Partition Status
- Supports up to 128 hardwired or wireles zones (additional hardware required)
- Menu-based programming with icons
- Slimline build with white backlit keys and blue LCD backlit display
- Includes input/output terminal
- Panic keys
- Includes wall mount & cover tamper
Technical Specifications
The DSC Neo Kit with 8 to 32 zone expandable panel and Full Message Hardwired LCD Keypad kit includes the essential hardware required to start building a wired DSC PowerSeries NEO system, including:
1x HS2032NK PowerSeries NEO Alarm Panel
1x PC5003C metal alarm cabinet
1x HS2LCD N Full Message Hardwired LCD Keypad
1x 12V backup battery
1x Plug-in transformer
1x Indoor surface-mount siren
Designed for commercial and residential security solutions. Additional hardware sold separately. Wired sensor connections only, wireless transceiver or additional keypad with wireless transceiver (sold separately) required for wireless sensors.
NOTE: PowerSeries NEO requires professional monitoring and will only work as a local alarm without a service contract. NEO systems are NOT backwards compatible with legacy PowerSeries 433 MHz keypads or expanders. Please ensure compatibility before purchasing in retrofit installs.
HS32-51CAN Kit Specs and Features
HS2032NK NEO Panel
- 8 hardwire inputs can be expanded to 32 zones
- 2 PGM outputs
- Supports 4 partitions
- 500 event buffer
- Allows for remote firmware upgrades (panel/keypads/transceiver)
- 128 bit AES encryption for the highest level of protection
- Operating Temperature: 0 to 40 degrees C (32 to 120 F)
- Requires 16.5 VAC transformer (not included)
- Supports up to 8 wired keypads
- Supports up to 72 user access codes
- FCC/IC, SIA CP-01, CSFM, CNC, Anatel Control Panel Approvals
HS2LCD N Keypad
- Supports up to 6 different languages
- Global Partition Status
- Supports up to 128 hardwired or wireles zones (additional hardware required)
- Menu-based programming with icons
- Slimline build with white backlit keys and blue LCD backlit display
- Includes input/output terminal
- Panic keys
- Includes wall mount & cover tamper
