About the product

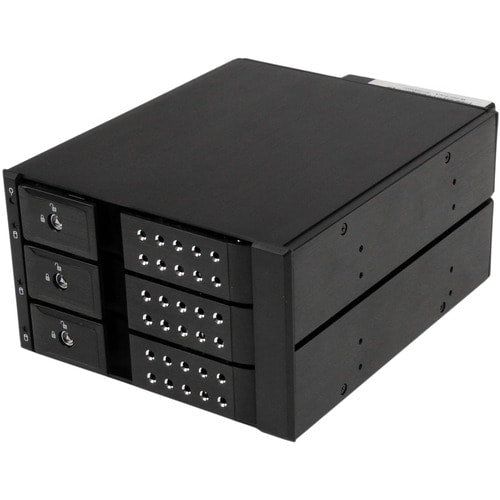

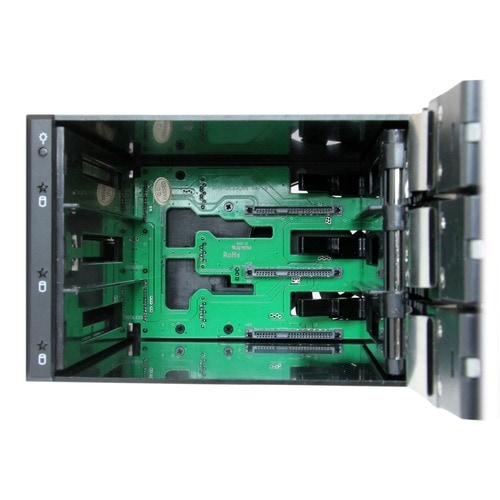

The HSB3SATSASBA Removable 3-drive backplane lets you quickly install and hot-swap 3.5" drives from the front of your computer, by turning two 5.25" bays into a hot-swappable interface for you to connect up to three 3.5" SATA or SAS hard drives (HDD).
For added versatility, the hard drive bay can interface with SATA I/II/III and SAS I/II hard drives -- an ideal accommodation for enterprise system applications.

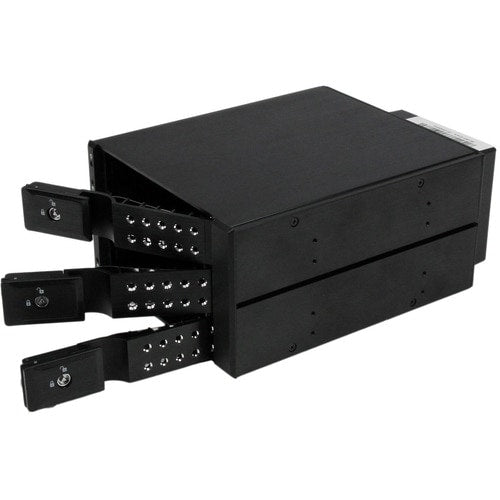

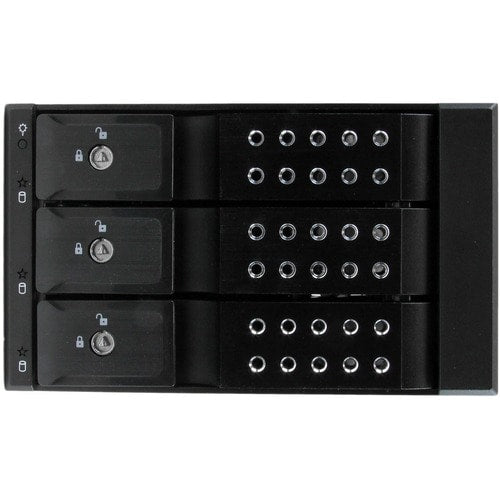

For a quick and secure method of installing and removing drives, the backplane features ejection levers and a key-lock design. To help prevent drive failure, the bay provides excellent heat dissipation with a built-in fan, and a vented solid aluminum enclosure.
The HSB3SATSASBA is backed by a StarTech.com 2-year warranty and free lifetime technical support.
More from the Manufacturer
- Solid aluminum construction
- Key lock design

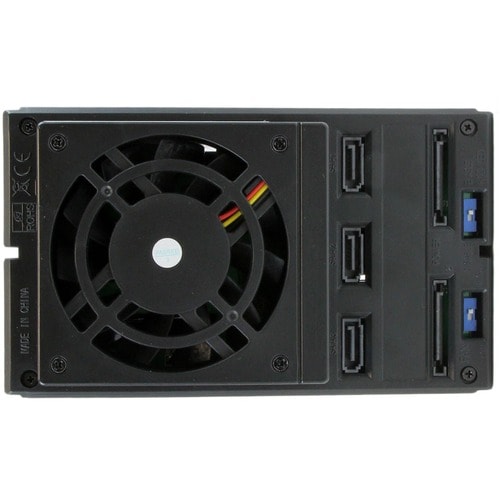

- Built-in fan
- 3 drive bay design
- Installs in two 5.25" drive bays
- Trayless design for hot swap support
- Support for SATA revision I/II/III (1.5/3.0/6.0 Gbps)
- Support for SAS revision I/II (3.0/6.0 Gbps)
- UL VO flammability rating
- Power and Activity LEDs for each drive
Technical Specifications
| Network & Communication | |
| Wireless LAN | No |
| I/O Expansions | |
| Number of Total Expansion Bays | 3 |
| "Number of 3.5"" Bays" | 3 |
| Technical Information | |
| Number of Hard Drives Supported | 3 |
| Number of Hard Drives Installed | No |
| Interfaces/Ports | |
| Host Interface | Serial ATA/600 |
| Network (RJ-45) | No |
| Drive Interface | SATA/600 |
| Serial Attached SCSI (SAS) | |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Restriction of Hazardous Substances (RoHS) | |
| Waste Electrical and Electronic Equipment Directive (WEEE) | |
| General Information | |
| Product Type | Drive Enclosure |
| Manufacturer Part Number | HSB3SATSASBA |
| Manufacturer Website Address | http://www.startech.com |
| Packaged Quantity | 1 Each |
| Manufacturer | StarTech.com |
| Product Name | 3 SATA HDD Backplane |
| Brand Name | StarTech.com |
| Physical Characteristics | |
| Weight (Approximate) | 2.70 lb (1224.70 g) |
| Form Factor | Internal |
| Height | 4.30" (109.22 mm) |
| Width | 5.70" (144.78 mm) |
| Depth | 7.60" (193.04 mm) |
| Compatible Drive Bay Width | 5.25" |
| Cooling Fan | Yes |
| Product Color | Black |
| Color Family | Black |
| Product Material | Aluminum |
