About the product

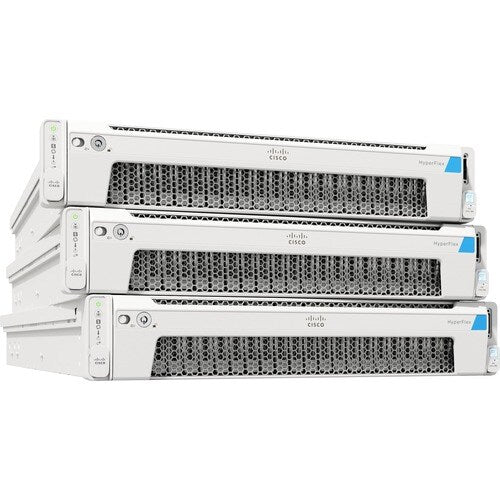

Cisco HyperFlex Edge Systems are optimized for remote sites, branch offices, and edge environments. As a smaller form factor of Cisco HyperFlex, Cisco HyperFlex Edge keeps the full power of a next generation hyperconverged platform even without connecting to Cisco UCS Fabric Interconnects. Cisco HyperFlex Edge Systems support a variable configuration of 2, 3, or 4 HX converged nodes and supports the scale up of CPU, memory, and storage capacity (hot-add additional capacity drives).
The Cisco HyperFlex Edge operates using existing top of rack 1GE or 10/25GE switching with options for both single and dual switch configurations. HyperFlex Edge is typically deployed in environments with a minimal infrastructure footprint, hence the use of UCS compute-only nodes is not supported.
The Cisco HyperFlex Edge operates using existing top of rack 1GE or 10/25GE switching with options for both single and dual switch configurations. HyperFlex Edge is typically deployed in environments with a minimal infrastructure footprint, hence the use of UCS compute-only nodes is not supported.
- Provides 2 USB ports for responsive and expanded device connections
- DDR4 SDRAM compatible slot - Installs memory that reduces processor's idle time and enhances computer's performance
- 12Gb/s SAS interface for high speed and reliability
- Optimize business network's performance with 10 Gigabit Ethernet connectivity
- Perform computational tasks effectively accrediting the Xeon Platinum processor
Technical Specifications
| Storage | |
| Optical Drive Type | No |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | C621A |
| Controllers | |
| Controller Type | 12Gb/s SAS |
| RAID Supported | Yes |
| Display & Graphics | |
| Graphics Controller Model | G200e |
| Graphics Memory Capacity | 8 MB |
| I/O Expansions | |
| Number of Total Expansion Bays | 24 |
| Total Number of Expansion Slots | 5 |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| 10 Gigabit Ethernet | |
| Operating System | |
| Operating System Supported | Windows Server 2019 Datacenter |
| Windows Server 2019 Standard | |
| Interfaces/Ports | |
| Total Number of USB Ports | 2 |
| Number of USB 3.0 Ports | 2 |
| Number of VGA Ports | 1 |
| Power Description | |
| Input Voltage | 120 V AC |
| 230 V AC | |
| Plug/Connector Type | C14 |
| Memory | |
| Maximum Memory Supported | 8 TB |
| Memory Technology | DDR4 SDRAM |
| Memory Standard | DDR4-3200/PC4-25600 |
| Intel Optane Memory Ready | Yes |
| Total Number of Memory Slots | 32 |
| Physical Characteristics | |
| Weight (Approximate) | 61.73 lb (28000 g) |
| Form Factor | Rack-mountable |
| Rack Height | 2U |
| Height | 3.42" (86.87 mm) |
| Width | 16.90" (429.26 mm) |
| Depth | 30" (762 mm) |
| Processor | |
| Processor Supported | Xeon Platinum |
| Xeon Gold | |
| Xeon Bronze | |
| Xeon Silver | |
| 64-bit Processing | Yes |
| Number of Processors Supported | 2 |
| General Information | |
| Product Type | Server Barebone System |
| Manufacturer Part Number | HX-E-240-M6SX |
| Manufacturer Website Address | http://www.cisco.com |
| Manufacturer | Cisco Systems, Inc |
| Product Name | HyperFlex HX240 M6 Barebone System |
| Product Line | HyperFlex |
| Product Series | HX240 M6 |
| Brand Name | Cisco |
