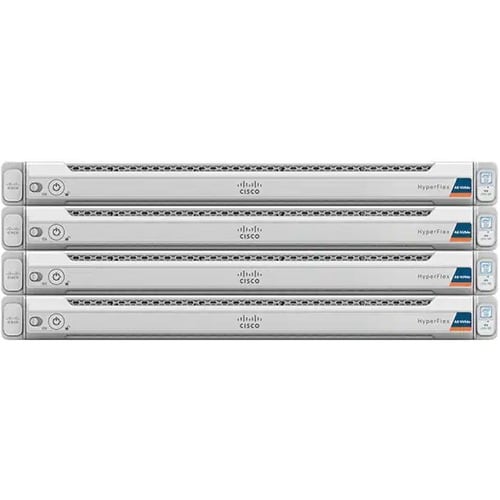

Cisco HyperFlex HX220 M6 Server Barebone System - 1U Rack-mountable

Name: Cisco HyperFlex HX220 M6 Server Barebone System - 1U Rack-mountable
Brand: Cisco
SKU: 952B5PCM
Price: 8764.18 CAD
Availability: OutOfStock

$8,764.18 CAD

~~$9,815.88 CAD~~ $8,764.18 CAD

-10% OFF Ask for quote

Shipping calculated at checkout.

Cisco HyperFlex HX220 M6 Server Barebone System - 1U Rack-mountable - 2 x Processor Support - Intel C621A Chip - 4 TB DDR4 SDRAM DDR4-3200/PC4-25600 Maximum RAM Support - 32 Total Memory Slots - 12Gb/s SAS, Serial ATA/600 Controller - G200e 8 MB Graphic(s) - Processor Support (Xeon Platinum, Xeon Gold, Xeon Silver, Xeon Bronze) - Gigabit Ethernet, 10 Gigabit Ethernet - 2 USB 3.0 Port(s) - 3 Year

VPN:HXAF-E-220M6SSKU:952B5PCM UPC:

Provides 2 USB ports for responsive and expanded device connections
DDR4 SDRAM compatible slot - Allows the memory to operate at an effective bus speed while using minimal power, resulting in an optimal computer performance and improved memory heat dissipation
12Gb/s SAS interface for high speed and reliability

Quantity

Volume discount available - Ask for quote..

View full details

Product information summary

Cisco HyperFlex HX220 M6 Server Barebone System - 1U Rack-mountable

About the product

Provides 2 USB ports for responsive and expanded device connections

DDR4 SDRAM compatible slot - Allows the memory to operate at an effective bus speed while using minimal power, resulting in an optimal computer performance and improved memory heat dissipation

12Gb/s SAS interface for high speed and reliability

Optimize business network's performance with 10 Gigabit Ethernet connectivity

Perform computational tasks effectively accrediting the Xeon Platinum processor

Technical Specifications

Warranty
Additional Warranty Information	Next business day (NBD) onsite parts replacement eight hours a day, five days a week. 90-day software warranty on media.
Chipset
Chipset Manufacturer	Intel
Chipset Model	C621A
Display & Graphics
Graphics Controller Model	G200e
Graphics Memory Capacity	8 MB
Network & Communication
Ethernet Technology	10 Gigabit Ethernet
	Gigabit Ethernet
Storage
Supported Storage Drive Interfaces	Serial ATA III
	SAS-3
Controllers
Controller Type	Serial ATA/600
	12Gb/s SAS
RAID Supported	No
I/O Expansions
Number of Total Expansion Bays	10
Number of PCI Express x16 Slots	5
Total Number of Expansion Slots	5
Interfaces/Ports
Total Number of USB Ports	2
Number of USB 3.0 Ports	2
Number of VGA Ports	1
Memory
Maximum Memory Supported	4 TB
Memory Technology	DDR4 SDRAM
Memory Standard	DDR4-3200/PC4-25600
Total Number of Memory Slots	32
Power Description
Input Voltage	120 V AC
	230 V AC
Frequency	60 Hz
	50 Hz
Physical Characteristics
Weight (Approximate)	42.55 lb (19300 g)
Form Factor	Rack-mountable
Rack Height	1U
Height	1.70" (43.18 mm)
Width	16.90" (429.26 mm)
Depth	30" (762 mm)
Processor
Processor Supported	Xeon Bronze
	Xeon Gold
	Xeon Platinum
	Xeon Silver
64-bit Processing	Yes
Number of Processors Supported	2
General Information
Product Type	Server Barebone System
Manufacturer Part Number	HXAF-E-220M6S
Manufacturer Website Address	http://www.cisco.com
Manufacturer	Cisco Systems, Inc
Product Model	HX220 M6
Product Name	HyperFlex HX220 M6 Edge Barebone System
Product Line	HyperFlex
Product Series	HX220 M6 Edge
Brand Name	Cisco
