About the product
Cisco HyperFlex™ Systems unlock the full potential of hyperconvergence. The systems are based on an end-to-end software-defined infrastructure, combining software-defined computing in the form of Cisco Unified Computing System (Cisco UCS) servers; software-defined storage with the powerful Cisco HX Data Platform and software-defined networking with the Cisco UCS fabric that will integrate smoothly with Cisco Application Centric Infrastructure (Cisco ACI™). Together with a single point of connectivity and hardware management, these technologies deliver a preintegrated and adaptable cluster that is ready to provide a unified pool of resources to power applications as your business needs dictate.

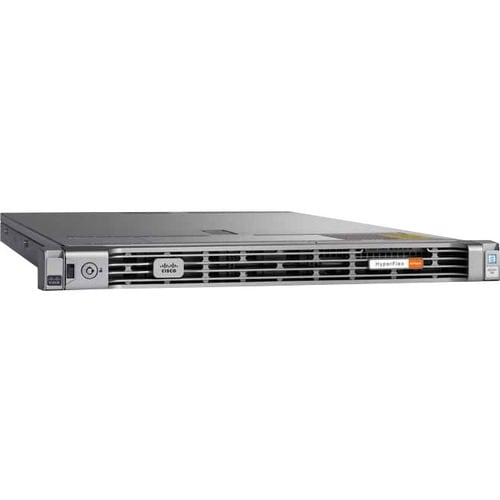

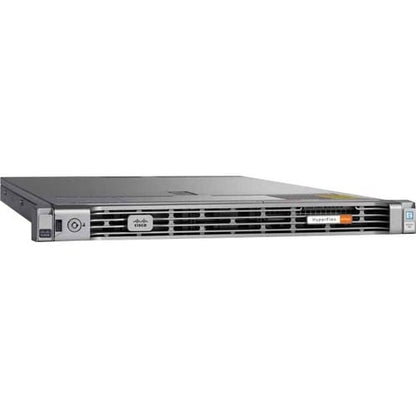

The Cisco HyperFlex HX220C M6 All NVMe/All Flash/Hybrid Server Nodes extends the capabilities of Cisco's HyperFlex portfolio in a 1U form factor with the addition of the 3rd Gen Intel® Xeon® Scalable Processors (Ice Lake), 16 DIMM slots per CPU for 3200-MHz DDR4 DIMMs with DIMM capacity points up to 128 GB. The maximum memory capacity for 2 CPUs is listed here:
- 4 TB: 32 x 128 GB DDR4 DIMMs or
- 10 TB: 16 x 128 GB DDR4 DIMMs and 16 x 512 GB Intel® Optane™ Persistent Memory Modules (PMem)
- Provides 2 USB ports for responsive and expanded device connections
- DDR4 SDRAM compatible slot - Install memory that synchronizes electrical and clock signals for an efficient data throughput
- 12Gb/s SAS interface for high speed and reliability
- Featuring Gigabit Ethernet port for ultra-fast network speeds
- Experience high performance, built-in security and remote management capabilities with Intel Xeon processor
Technical Specifications
| I/O Expansions | |
| Number of Total Expansion Bays | 10 |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Warranty | |
| Additional Warranty Information |
|
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | C621A |
| Controllers | |
| Controller Type | 12Gb/s SAS |
| RAID Supported | No |
| Display & Graphics | |
| Graphics Controller Model | G200e |
| Graphics Memory Capacity | 8 MB |

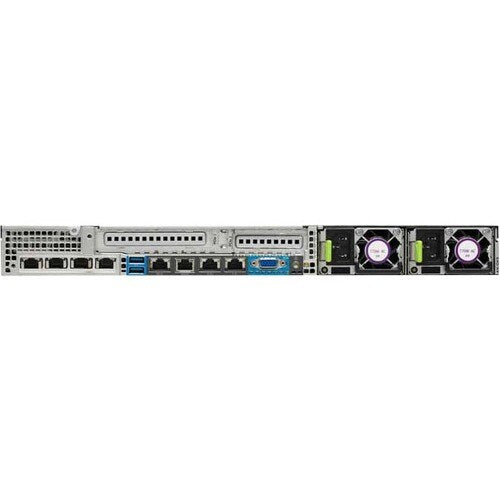

| Interfaces/Ports | |
| Total Number of USB Ports | 2 |
| Number of USB 3.0 Ports | 2 |
| Number of VGA Ports | 1 |
| Processor | |
| Processor Supported | Xeon |
| Number of Nodes | 1 |
| Number of Processors Supported | 2 |
| Power Description | |
| Input Voltage | 120 V AC |
| 230 V AC | |
| Frequency | 50 Hz |
| 60 Hz | |
| Memory | |
| Maximum Memory Supported | 4 TB |
| Memory Technology | DDR4 SDRAM |
| Memory Standard | DDR4-3200/PC4-25600 |
| Intel Optane Memory Ready | Yes |
| Total Number of Memory Slots | 32 |
| Physical Characteristics | |
| Weight (Approximate) | 42.55 lb (19300 g) |
| Form Factor | Rack-mountable |
| Rack Height | 1U |
| Height | 1.70" (43.18 mm) |
| Width | 18.90" (480.06 mm) |
| Depth | 30" (762 mm) |
| General Information | |
| Product Type | Server Barebone System |
| Manufacturer Part Number | HXAF220C-M6S |
| Manufacturer Website Address | http://www.cisco.com |
| Manufacturer | Cisco Systems, Inc |
| Product Model | HX220c M6 |
| Product Name | HyperFlex HX220c M6 Barebone System |
| Product Line | HyperFlex |
| Product Series | HX220c M6 |
| Brand Name | Cisco |
