About the product

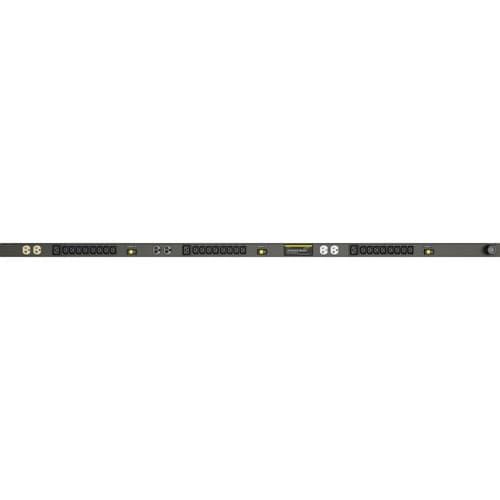

I10034 provides reliable power distribution where you need it in the rack. With the Geist Upgradeable hot-swap technology, users may easily transform basic PDUs to metered or monitored PDUs with the addition of the appropriate Interchangeable Monitoring Device (IMD) module; all without causing any interruption.
Technical Specifications
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | United States |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Physical Characteristics | |
| Length | 72" (1828.80 mm) |
| Mount Type | Rack-mountable |
| Rack Height | 0U |
| Width | 2" (50.80 mm) |
| Depth | 2" (50.80 mm) |
| Mounting Orientation | Vertical |
| Power Description | |
| Input Voltage | 120 V AC |
| 230 V AC | |
| Output Voltage | 208 V AC |
| Input Current | 30 A |
| Input Voltage Range | 120 V AC - 230 V AC |
| Power Rating (Watt) | 8.60 kW |
| General Information | |
| Product Type | PDU |
| Manufacturer Part Number | I10034 |
| Manufacturer Website Address | http://www.vertiv.com/ |
| Manufacturer | Vertiv |
| Product Model | MN01X4W1-33M149-3TL21A0A10-S |
| Product Name | MN01X4W1-33M149-3TL21A0A10-S 33-Outlets PDU |
| Brand Name | Vertiv Geist |
| Technical Information | |
| Protection Type | Overcurrent Protection |
| Plug/Connector Type | NEMA L21-30P |
| Phase | Three Phase |
| Receptacle Type | U-Lock IEC 60320 C13 |
| U-Lock IEC 60320 C19 | |
| NEMA 5-20R | |
| PDU Type | Basic |
| Receptacle Detail | 24 x U-Lock IEC 60320 C13 |
| 6 x NEMA 5-20R | |
| 3 x U-Lock IEC 60320 C19 | |
| Plug/Connector Detail | 1 x NEMA L21-30P |
