About the product

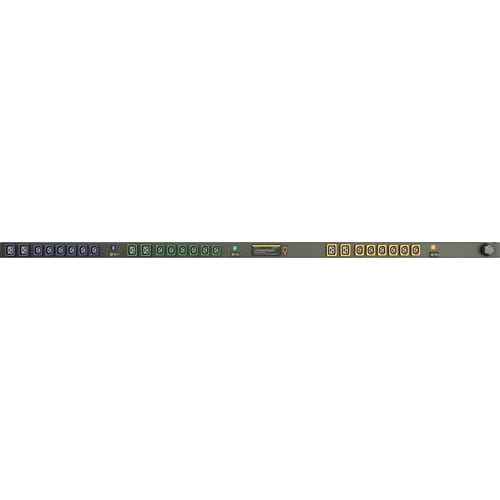

I10051L provides reliable power distribution where you need it in the rack. With the Geist Upgradeable hot-swap technology, users may easily transform basic PDUs to metered or monitored PDUs with the addition of the appropriate Interchangeable Monitoring Device (IMD) module; all without causing any interruption.
- PDU is reliable for power protection and management solutions
- With basic PDU it becomes the easiest way to distribute facility UPS or generator power to multiple rack loads
Technical Specifications
| Miscellaneous | |
| Country of Origin | United States |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Power Description | |
| Input Voltage | 230 V AC |
| Output Voltage | 208 V AC |
| Input Current | 60 A |
| Power Rating (Watt) | 9.90 kW |
| Physical Characteristics | |
| Length | 72" (1828.80 mm) |
| Mount Type | Rack-mountable |
| Rack Height | 0U |
| Width | 2.25" (57.15 mm) |
| Depth | 3.44" (87.38 mm) |
| Mounting Orientation | Vertical |
| General Information | |
| Product Type | PDU |
| Manufacturer Part Number | I10051L |
| Manufacturer Website Address | http://www.vertiv.com/ |
| Manufacturer | Vertiv |
| Product Model | MN01X8W1-24PH68-6PS6D0A10-S |
| Product Name | MN01X8W1-24PH68-6PS6D0A10-S 24-Outlet PDU |
| Brand Name | Vertiv Geist |
| Technical Information | |
| Protection Type | Overcurrent Protection |
| Plug/Connector Type | 2P+E (IP67) |
| Receptacle Type | U-Lock IEC 60320 C19 |
| U-Lock IEC 60320 C13 | |
| PDU Type | Basic |
| Receptacle Detail | 6 x U-Lock IEC 60320 C19 |
| 18 x U-Lock IEC 60320 C13 | |
| Plug/Connector Detail | 1 x 2P+E (IP67) |
