About the product

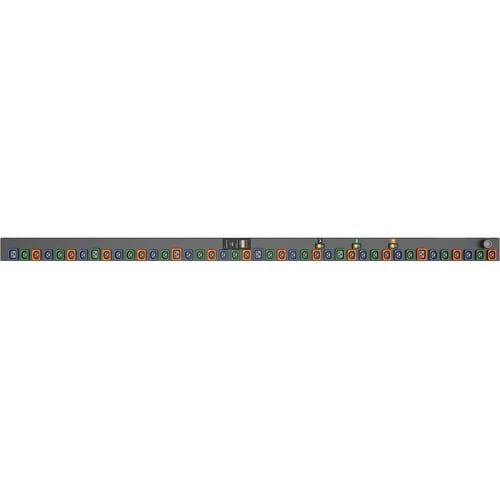

The I10145L provides real-time power metrics to help prevent overloads and safely optimize load levels. Using Visible Light Communication (VLC) technology, I10145L optically transmits power usage data from its LED display to a handheld device over the Geist Mobile App, presenting comprehensive real-time power usage data down to the phase and circuit levels. With the Geists Upgradeable hot-swap technology, users may easily transform Metered PDUs to Monitored by replacing the Interchangeable Monitoring Device (IMD) module, without causing any interruption.
Technical Specifications
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | United States |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Power Description | |
| Input Voltage | 230 V AC |
| Output Voltage | 208 V AC |
| Input Current | 30 A |
| Power Rating (Watt) | 8.60 kW |
| Physical Characteristics | |
| Length | 75" (1905 mm) |
| Mount Type | Rack-mountable |
| Rack Height | 0U |
| Width | 3.50" (88.90 mm) |
| Depth | 2" (50.80 mm) |
| Mounting Orientation | Vertical |
| General Information | |
| Product Type | PDU |
| Manufacturer Part Number | I10145L |
| Manufacturer Website Address | http://www.vertiv.com/ |
| Manufacturer | Vertiv |
| Product Model | MN01D5W1-42PZ68-3TL15A0A10-S-A |
| Product Name | MN01D5W1-42PZ68-3TL15A0A10-S-A 42-Outlets PDU |
| Brand Name | Vertiv Geist |
| Technical Information | |
| Plug/Connector Type | NEMA L15-30P |
| Phase | Three Phase |
| Receptacle Type | U-Lock IEC 60320 C13 |
| U-Lock IEC 60320 C19 | |
| PDU Type | Metered |
| Receptacle Detail | 6 x U-Lock IEC 60320 C19 |
| 36 x U-Lock IEC 60320 C13 | |
| Plug/Connector Detail | 1 x NEMA L15-30P |
