About the product

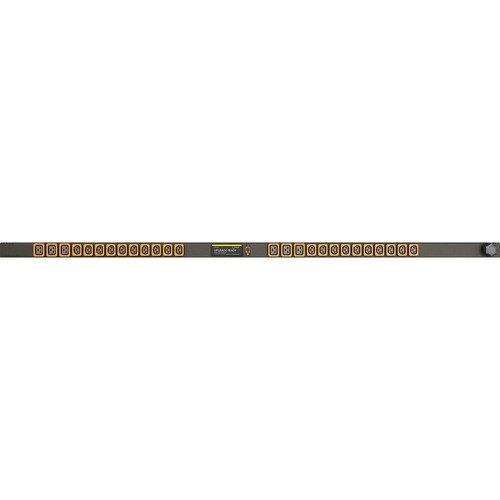

I10175L provides reliable power distribution where you need it in the rack. With the Geist Upgradeable hot-swap technology, users may easily transform basic PDUs to metered or monitored PDUs with the addition of the appropriate Interchangeable Monitoring Device (IMD) module; all without causing any interruption.
- Electric power fitted to racks of computers and networking equipment within a data center
- Provide circuit protection and easy configuration for trouble-free access
- Basic PDU deliver power to wiring closets, server rooms & equipment racks in a cost-effective way
- With basic PDU it becomes the easiest way to distribute facility UPS or generator power to multiple rack loads
Technical Specifications
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | United States |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Power Description | |
| Input Voltage | 230 V AC |
| Output Voltage | 208 V AC |
| Input Current | 20 A |
| Power Rating (Watt) | 3.30 kW |
| Physical Characteristics | |
| Length | 66.25" (1682.75 mm) |
| Mount Type | Rack-mountable |
| Rack Height | 0U |
| Width | 2" (50.80 mm) |
| Depth | 2" (50.80 mm) |
| Mounting Orientation | Vertical |
| General Information | |
| Product Type | PDU |
| Manufacturer Part Number | I10175L |
| Manufacturer Website Address | http://www.vertiv.com/ |
| Manufacturer | Vertiv |
| Product Model | MN01X4B0-26PJ68-2TL6A0A10-S |
| Product Name | MN01X4B0-26PJ68-2TL6A0A10-S 26-Outlets PDU |
| Brand Name | Vertiv Geist |
| Technical Information | |
| Plug/Connector Type | NEMA L6-20P |
| Receptacle Type | U-Lock IEC 60320 C13 |
| U-Lock IEC 60320 C19 | |
| PDU Type | Basic |
| Receptacle Detail | 20 x U-Lock IEC 60320 C13 |
| 6 x U-Lock IEC 60320 C19 | |
| Plug/Connector Detail | 1 x NEMA L6-20P |
