About the product

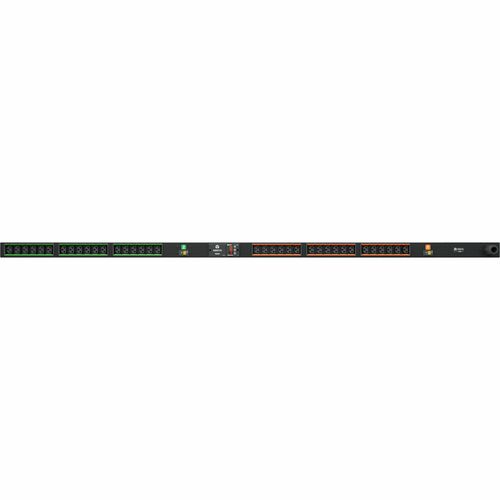

Upgradeable Metered rPDUs provide reliable power distribution to critical IT equipment within a rack or cabinet while delivering a view of real-time view of power usage from a local LED display.
Benefits
- With the Geist Upgradeable hot-swap technology, users may easily transform metered rPDUs to monitored rPDUs with the addition of the appropriate Interchangeable Monitoring Device (IMD).
- Avoid accidental overloads when deploying or moving critical server equipment with instant access to power consumption metrics on the local digital display.
- Every unit is 100% tested for reliability and functionality.
- Simple and convenient configuration options for cord lengths and chassis colors.
Technical Specifications
| Warranty | |
| Additional Warranty Information | 5-year limited warranty if registered within 120 days of purchase, otherwise warranty defaults to 3 years |
| Power Description | |
| Input Voltage | 230 V AC |
| Output Voltage | 208 V AC |
| Input Current | 30 A |
| Input Voltage Range | 200 V AC - 240 V AC |
| Power Rating (Watt) | 4.90 kW |
| Miscellaneous | |
| Application/Usage | IT Equipment |
| Server Rack/Cabinet | |
| Package Contents |
|
| Country of Origin | United States |
| Environmentally Friendly | Yes |
| TAA Compliant | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| General Information | |
| Product Type | PDU |
| Manufacturer Part Number | I10494 |
| Manufacturer Website Address | http://www.vertiv.com/ |
| Manufacturer | Vertiv |
| Product Model | MN01D4B1-36CF18-3TL6A0A10-S |
| Product Name | rPDU MN01D4B1-36CF18-3TL6A0A10-S 36-Outlets PDU |
| Product Series | rPDU |
| Brand Name | Vertiv Geist |
| Technical Information | |
| Features | LED Display |
| Protection Type | Double Pole |
| Overcurrent Protection | |
| Circuit Breaker | |
| Plug/Connector Type | NEMA L6-30P |
| Receptacle Type | Combination C13/C19 |
| PDU Type | Metered |
| Receptacle Detail | 36 x Combination C13/C19 |
| Plug/Connector Detail | 1 x NEMA L6-30P |
| Physical Characteristics | |
| Form Factor | Hot-swappable |
| Length | 66.25" (1682.75 mm) |
| Mount Type | Rack-mountable |
| Cabinet-mountable | |
| Rack Height | 0U |
| Width | 2" (50.80 mm) |
| Depth | 2" (50.80 mm) |
| Mounting Orientation | Vertical |
| Product Color | Black Powder Coat |
| Color Family | Black |
