About the product

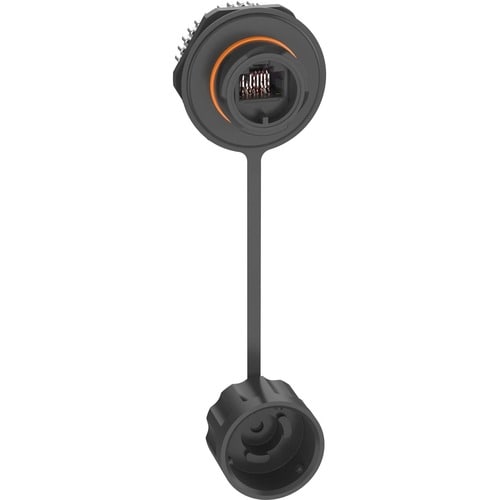

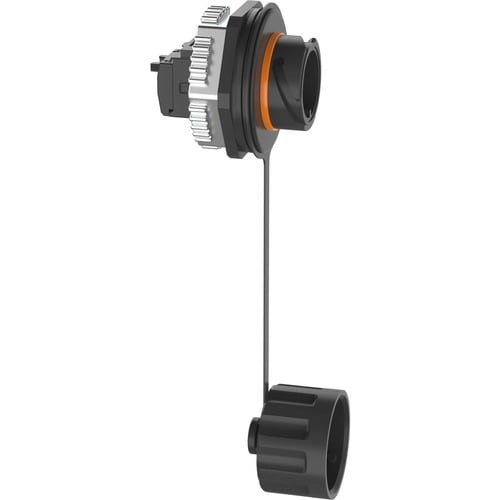

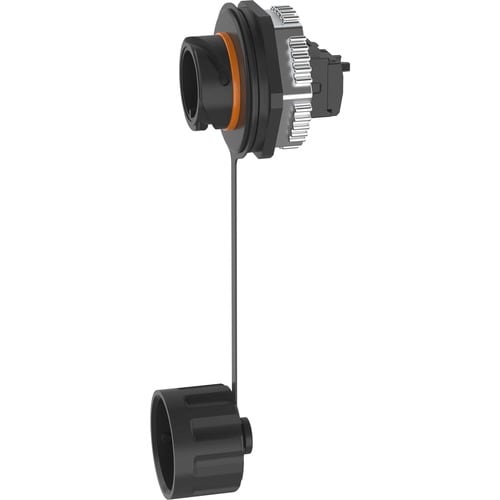

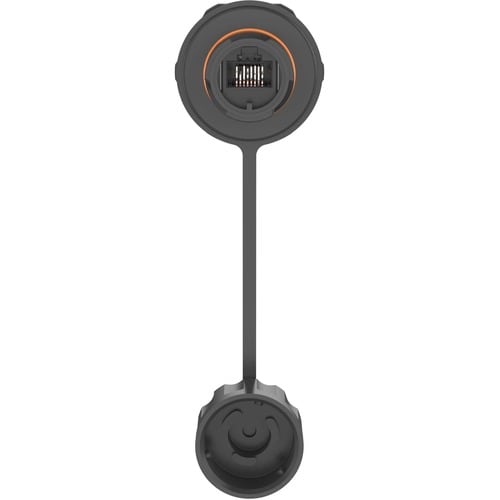

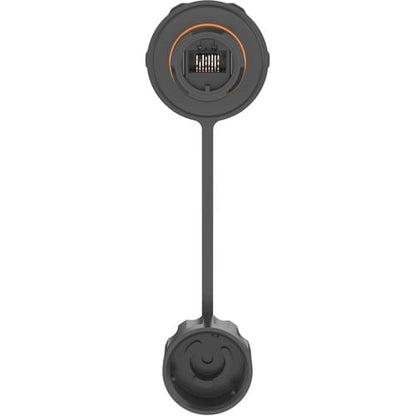

The IndustrialNet™ Cat 6A shielded bulkhead 8-position connector with protective cap is ideal in manufacturing environments. The shielded bulkhead connector features a RJ45 jack. The bulkhead provides an IP67 rated seal that provides protection from dust and temporary immersion in water. It terminates to a 4-pair, 24 AWG, 100 ohm twisted pair cable and does not require a punchdown tool.
Technical Specifications
| Miscellaneous | |
| Compatibility | Panduit Faceplates:
|
| Environmentally Friendly | Yes |
| General Information | |
| Product Type | Network Connector |
| Manufacturer Part Number | IAEBH6XS |
| Manufacturer Website Address | http://www.panduit.com |
| Packaged Quantity | 1 |
| Manufacturer | PANDUIT CORP |
| Product Name | Industrial Cat 6A RJ45 UTP Bulkhead Connector |
| Product Series | TX6A |
| Brand Name | IndustrialNet |
| Physical Characteristics | |
| Material Details | PBT - body Plastic - body |
| Length | 5.37" (136.40 mm) |
| Height | 5.37" (136.40 mm) |
| Width | 1.55" (39.37 mm) |
| Depth | 1.67" (42.42 mm) |
| Product Color | Black |
| Color Family | Black |
| Product Material | Plastic |
| Polybutylene Terephthalate (PBT) | |
| Technical Information | |
| Connector Details | 1 x RJ-45 Network - Female |
| Shielding | Yes |
| Connector Type | RJ-45 Network - Female |
| Features | Water Resistant |
| Protective Cap | |
| PoE | |
| Moisture Resistant | |
| Dust Protection | |
| Chemical Resistant | |
| Bulkhead | |
| Anti-rotation | |
| Vibration Resistant | |
| Temperature Resistant | |
| Contact Plating | Phosphor Bronze |
| Gold | |
| Ingress Protection (IP) Rating | IP67 |
