About the product

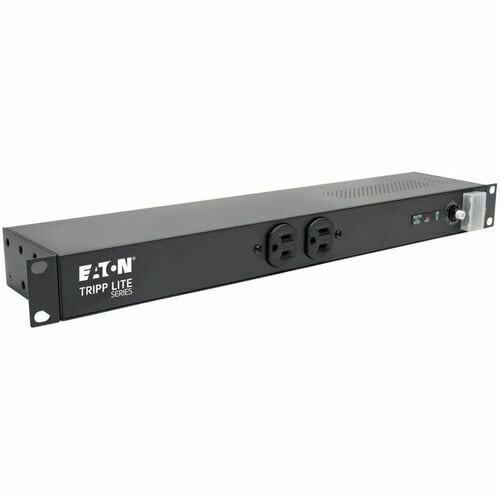

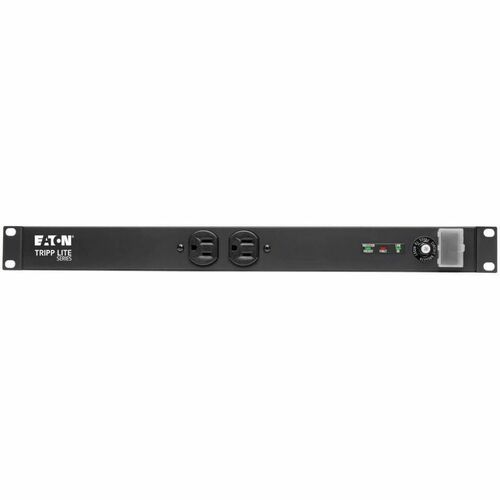

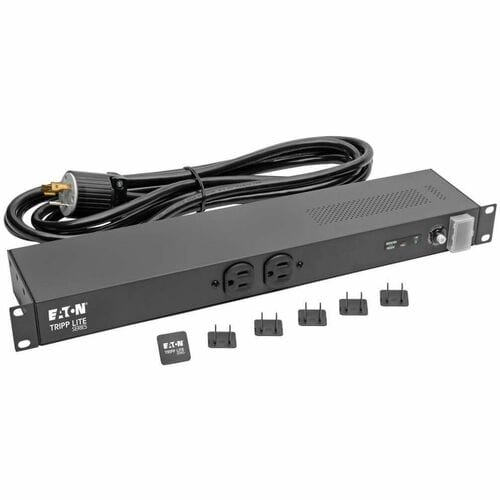

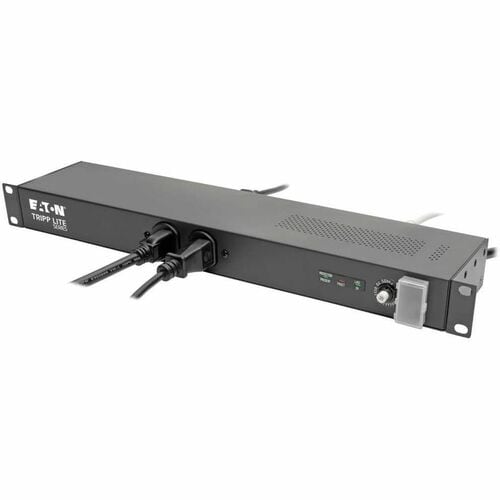

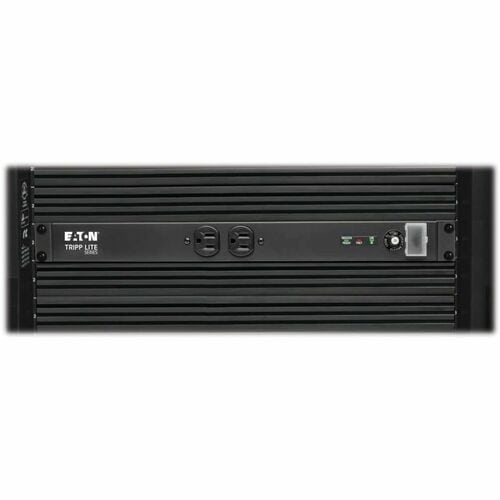

Tripp Lite's IBAR12-20T offers network-grade surge and noise suppression in a versatile all-metal multi-mount cabinet with L5-20P twist-lock input plug and 20-amp capacity. Detachable mounting flanges are configurable for rackmount, wallmount and under-counter installation. Uses only 1 rack space (1U) when installed in any 19 inch EIA standard rack. Features network grade AC surge suppression with EMI/RFI noise filtering. Outlets are arranged in exclusive isolated filter banks to limit noise interaction among connected items. Includes 12 outlets (2 front mounted 15-amp/10 rear mounted 20- amp), 15 ft. power cord and power switch. Diagnostic LEDs indicate AC present, line fault and protection status.

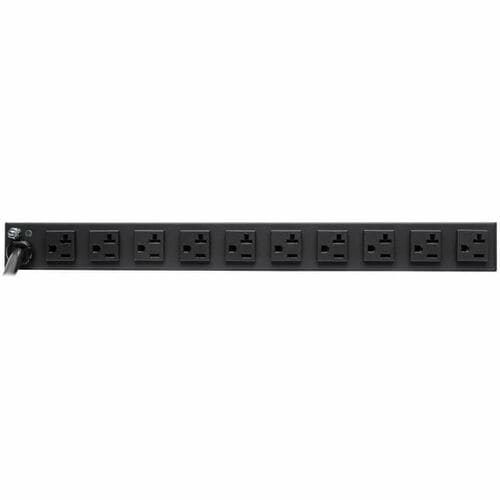

- 12 outlets - 2 front mounted/10 rear mounted
- 15-ft. cord
- 3840 joule rating
- All metal housing with LEDs
- Adjustable rackmount hardware
- $25,000 Ultimate Lifetime Insurance (U.S., Canada, and Puerto Rico only)
Technical Specifications
| Controls/Indicators | |
| Status Indicators | |
| Technical Information | |
| Protection Type | Surge |
| Receptacles | 12 x NEMA 5-20R |
| Plug/Connector Type | Yes |
| Power Description | |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Surge Energy Rating | 3840 J |
| Maximum Line Current | 20 A |
| Miscellaneous | |
| Additional Information |
|
| Package Contents |
|
| Compatibility | TYPICAL APPLICATIONS: Ideal for the protection of sensitive electronic equipment in 19 inch rackmount, wallmount and under-counter applications, such as internetworking equipment, PC systems, telecommunications, audio / video, security, sound reinforcement and more. |
| Certifications & Standards | UL1449 (UR status), UL1283, cUL, Exceeds IEEE 587 category A&B specifications |
| Country of Origin | China |
| Physical Characteristics | |
| Weight (Approximate) | 5.40 lb (2449.40 g) |
| Height | 1.75" (44.45 mm) |
| Width | 17.50" (444.50 mm) |
| Depth | 4" (101.60 mm) |
| Power Cord/Cable Length | 15 ft (4.57 m) |
| General Information | |
| Product Type | Surge Suppressor/Protector |
| Manufacturer Part Number | IBAR12-20T |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Manufacturer | Eaton Corporation |
| Product Name | IBAR12-20T |
| Brand Name | Tripp Lite by Eaton |
