About the product

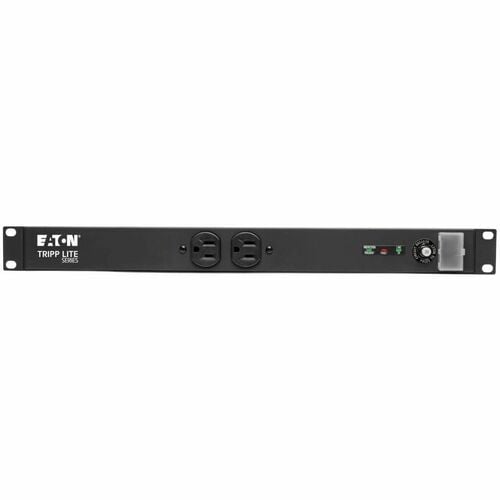

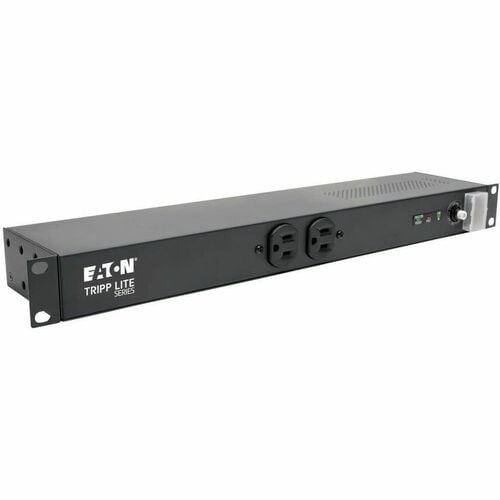

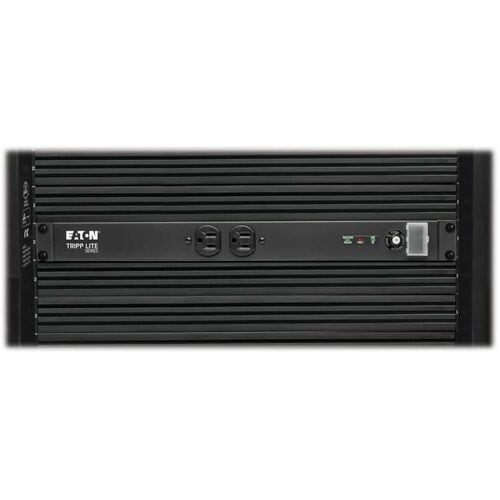

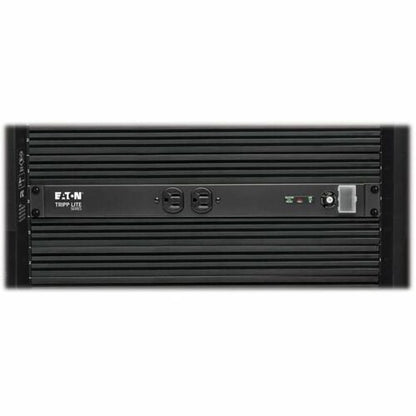

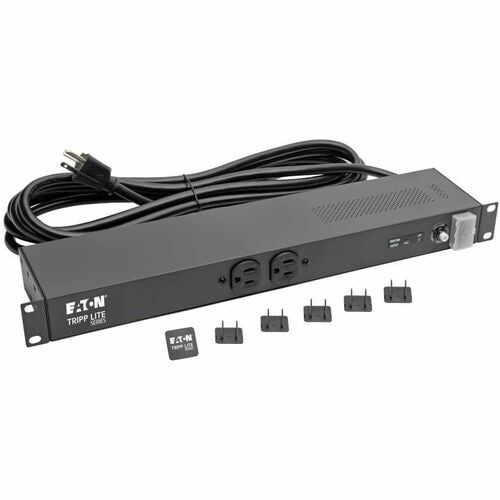

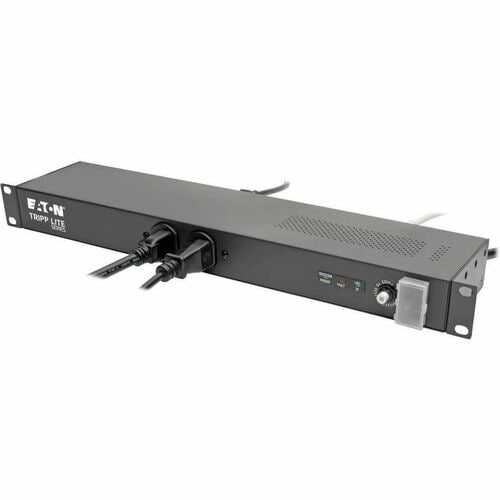

Tripp Lite's IBAR12/20ULTRA offers network-grade surge and noise suppression in a versatile all-metal multi-mount cabinet with NEMA 5-20P input plug and 20 amp capacity. Detachable mounting flanges are configurable for rackmount, wallmount and under-counter installation, using only 1 rack space (1U) when installed in any 19 inch EIA standard rack. Features network grade AC surge suppression with EMI/RFI noise filtering. Outlets are arranged in exclusive isolated filter banks to limit noise interaction among connected items. Includes 12 outlets (2 front mounted 15 amp / 10 rear mounted 20 amp), 15 ft AC power cord and guarded power switch to reduce the risk of accidental shutoff. Diagnostic LEDs indicate AC present, line fault and protection status. Lifetime warranty with $25,000 ultimate lifetime Insurance (USA & Canada Only) coverage .
- 12 x NEMA 5-20R receptacles for flexible connectivity and placement
- Offers 12 x NEMA 5-20R surge protected outlets
- 3840 J offers great protection against surges and line noise
- Protect your sensitive devices with 3840 J energy rating
- Prolong the life of your equipment by connecting them to the surge protector
- Safeguards your equipment from the sudden jolts of electricity

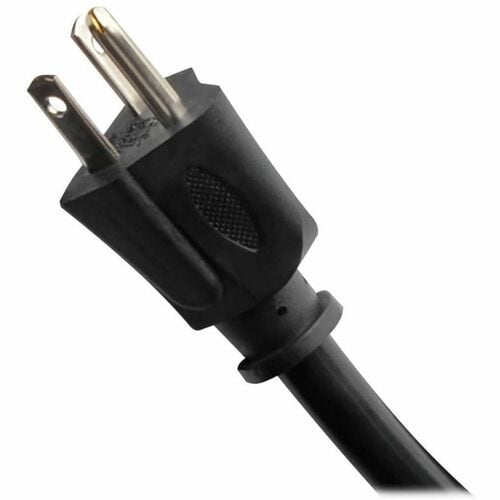

- Easily connect to a wall outlet with 15 ft (4.57 m) cord
Technical Specifications
| Controls/Indicators | |
| Status Indicators | |
| Technical Information | |
| Protection Type | Surge |
| Receptacles | 12 x NEMA 5-20R |
| Plug/Connector Type | NEMA 5-20R |
| Physical Characteristics | |
| Height | 1.75" (44.45 mm) |
| Width | 17.50" (444.50 mm) |
| Depth | 4" (101.60 mm) |
| Power Cord/Cable Length | 15 ft (4.57 m) |
| Power Description | |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Surge Energy Rating | 3840 J |
| Maximum Line Current | 20 A |
| Miscellaneous | |
| Additional Information |
|
| Package Contents |
|
| Compatibility | TYPICAL APPLICATIONS: Ideal for the protection of sensitive electronic equipment in 19 inch rackmount, wallmount and under-counter applications, such as internetworking equipment, PC systems, telecommunications, audio / video, security, sound reinforcement and more |
| Certifications & Standards | UL1449 (UR status), UL1283, cUL, Exceeds IEEE 587 category A&B specifications |
| Country of Origin | China |
| General Information | |
| Product Type | Surge Suppressor/Protector |
| Manufacturer Part Number | IBAR12-20ULTRA |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Manufacturer | Eaton Corporation |
| Product Name | IBAR12/20ULTRA |
| Brand Name | Tripp Lite by Eaton |
