About the product

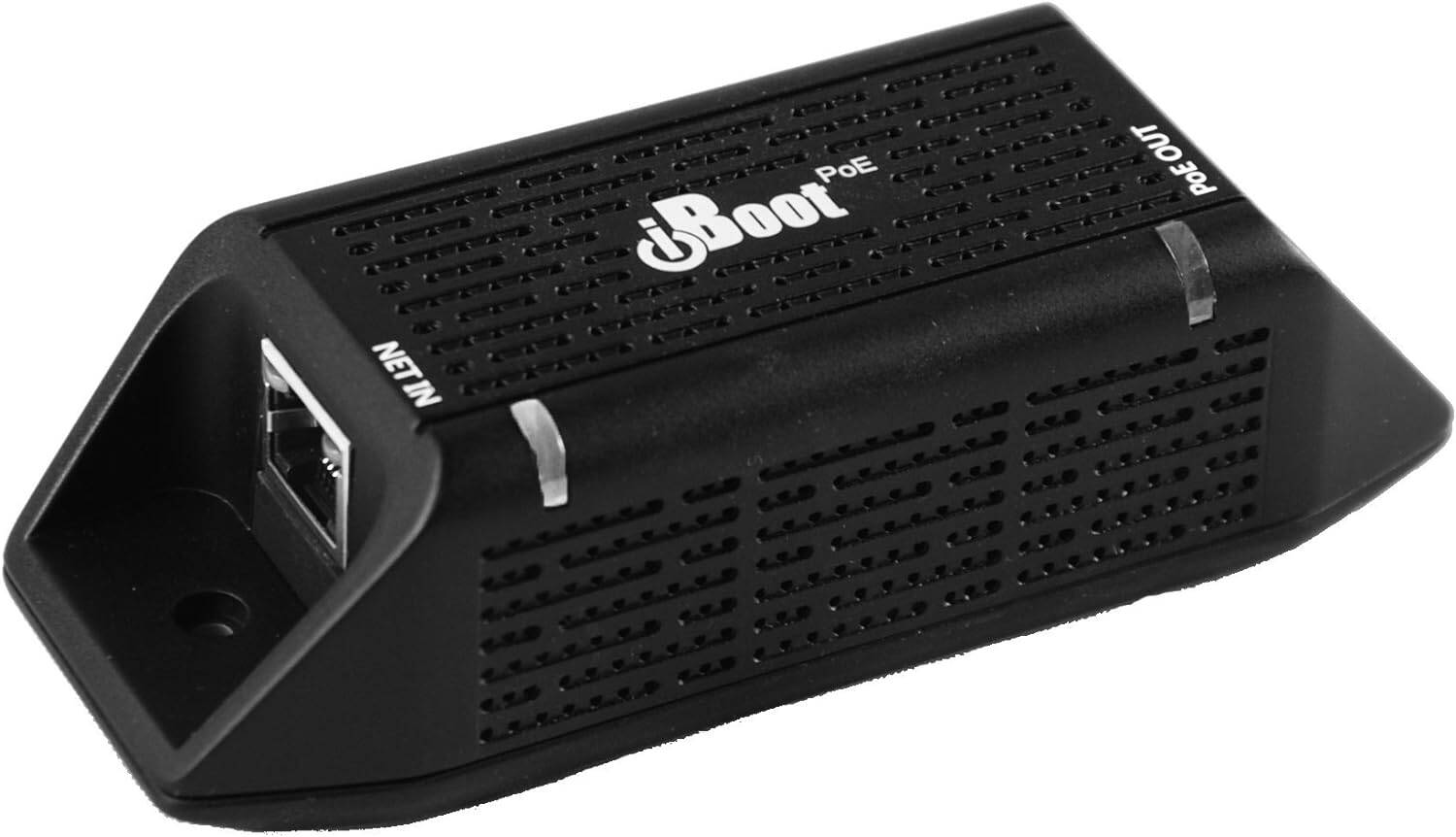

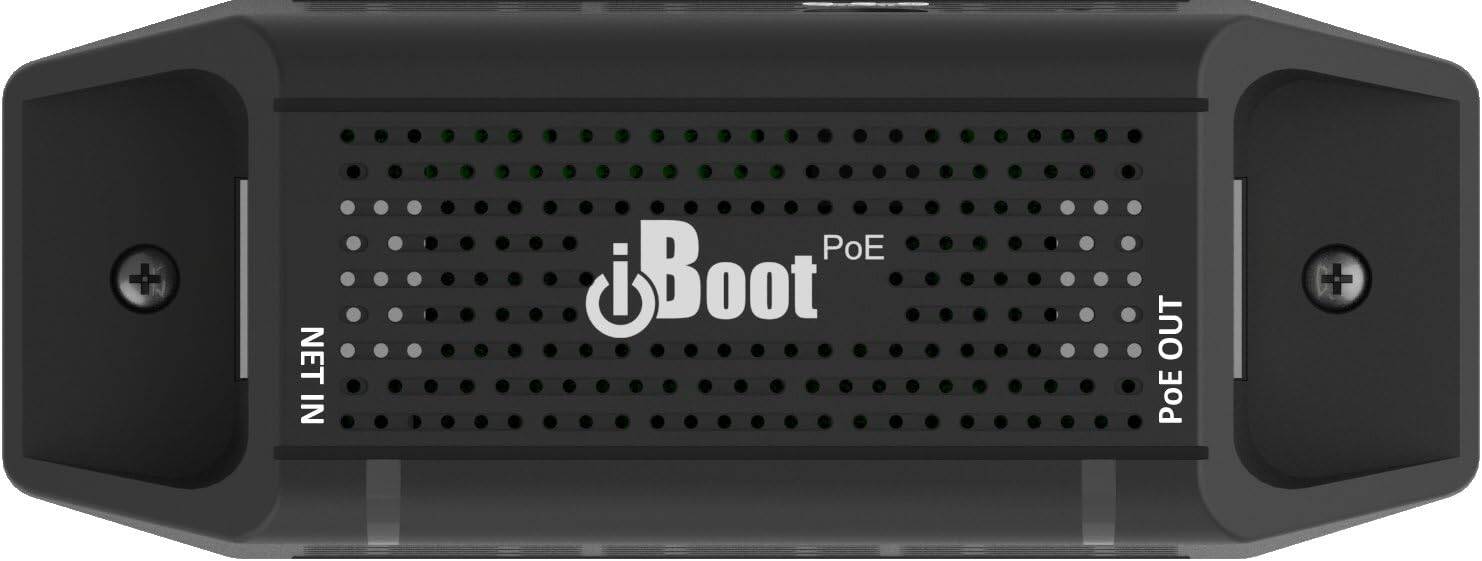

All the advantages of an automated and cloud-controlled reboot are now available for your PoE cameras, access points, security systems, and other PoE+ devices with iBoot-PoE (Power Over Ethernet). Up to 25.5 watts of switching and automated setup are supported by this Gigabit Ethernet PoE Extender. When the Power Supply is added, iBoot-PoE reboots to function as a complete PoE midspan injector.
iBoot-PoE – Gigabit Ethernet Extender / Injector with Reboot Features:
- Web Browser Power Control
- Cloud Control
- PoE Injector
- Dual Password Protected
- Direct TCP and Software Control
- Automatic System Restoral
- Active PoE Extender
- Automatic Configuration
- IP Addressed, 10/100/1000 Ethernet
iBoot-PoE – Gigabit Ethernet Extender / Injector with Reboot Specifications:
- PoE Standards
- Models: iBoot-PoE Active Extender
- Protocols
- IP Addressable. DHCP or Static
- HTTP Web Server built-in, Port Assignable
- Telnet Server built-in, Port Assignable
- DxP Messaging Protocol, Port Assignable
- Auto-Ping TCP Protocol
- Dataprobe Cloud Service Compatible
- LED Indicators
- LEDs on Network Jacks indicate network status
- NET IN: Power to the iBootPoE
- PoE OUT: Power supplied to PD
- Reliability: MTBF TBD
- Ethernet
- 10/100/1000 Full or Half Duplex Auto sensing
- Uplink/Downlink
- Cat 5 Cable Included 6’/2m long
- Security: Dual Password Protected, User and Admin
- Physical
- 4.90 x 1.85 x 1.34 in. (124 x 47 x 34 mm)
- Operating Temperature 0 to 50 Deg. C
Compliance: RoHS/WEEE FCC Part 15 Class B CE
Technical Specifications
All the advantages of an automated and cloud-controlled reboot are now available for your PoE cameras, access points, security systems, and other PoE+ devices with iBoot-PoE (Power Over Ethernet). Up to 25.5 watts of switching and automated setup are supported by this Gigabit Ethernet PoE Extender. When the Power Supply is added, iBoot-PoE reboots to function as a complete PoE midspan injector.
iBoot-PoE – Gigabit Ethernet Extender / Injector with Reboot Features:
- Web Browser Power Control
- Cloud Control
- PoE Injector
- Dual Password Protected
- Direct TCP and Software Control
- Automatic System Restoral
- Active PoE Extender
- Automatic Configuration
- IP Addressed, 10/100/1000 Ethernet
iBoot-PoE – Gigabit Ethernet Extender / Injector with Reboot Specifications:
- PoE Standards
- Models: iBoot-PoE Active Extender
- Protocols
- IP Addressable. DHCP or Static
- HTTP Web Server built-in, Port Assignable
- Telnet Server built-in, Port Assignable
- DxP Messaging Protocol, Port Assignable
- Auto-Ping TCP Protocol
- Dataprobe Cloud Service Compatible
- LED Indicators
- LEDs on Network Jacks indicate network status
- NET IN: Power to the iBootPoE
- PoE OUT: Power supplied to PD
- Reliability: MTBF TBD
- Ethernet
- 10/100/1000 Full or Half Duplex Auto sensing
- Uplink/Downlink
- Cat 5 Cable Included 6’/2m long
- Security: Dual Password Protected, User and Admin
- Physical
- 4.90 x 1.85 x 1.34 in. (124 x 47 x 34 mm)
- Operating Temperature 0 to 50 Deg. C
Compliance: RoHS/WEEE FCC Part 15 Class B CE
